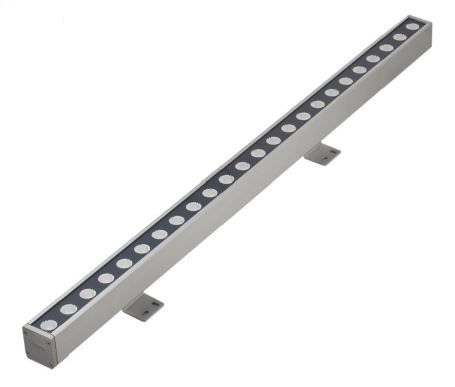

New from OSRAM the OLUX® LED Linear
FEATURES AND BENEFITS
- Available in 4 lengths 320mm, 600mm, 900mm and 1200mm
- Integral LED Driver for 220-240V AC Direct connection to Luminaire
- IP65 protection and supplied with daisy chain wiring for 8 interconnected luminaires.
- OSLON Square LED inside
High lumen output in a compact luminaire
Up to 5480lm in a compact 47mm x 50mm housing that provides powerful illumination for building façades and landscape applications.
Excellent optical design
Three sophisticated optics;
- Narrow beam 12°x 12°,
- Asymmetric flat beam 34°x 12° for wall grazing
- Wide beam 50°x 50°.
Three Colour temperature options
- Warm White 3000K,
- Neutral White 4000K
- Cool White 5700K
High system efficiency
Over 100lm/W system efficacy that reduces CO2 emissions while providing brilliant white light.
Long life time
50,000 hours life to L70/B50, resulting in low maintenance.
Easy and flexible installation
Supplied with easy to install mounting bracket for adjustment from 0 to 90°mounting angle.
Robust IP65 housing equipped with IP67 connector system for daisy chain outdoor wiring 240V connection.
Important Installation Requirements
- Non Dimmable (ND) switched version only available in Australia.
- Dimmable version is not available in Australia.
- Interconnection of 8 luminaires maximum per power circuit
- 390mm Power Starter Cable must be ordered separately and is a mandatory accessory for each run of eight luminaires.
- Optional 1m and 5m interconnection cables may be ordered separately for non continuous installations.
APPLICATIONS
- Building façade wall washing
- Landscape lighting
- General outdoor area illumination
- Shop Front lighting
- Outdoor advertising and signage
