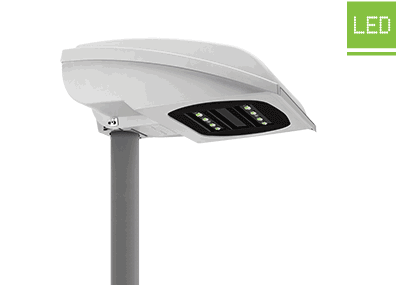

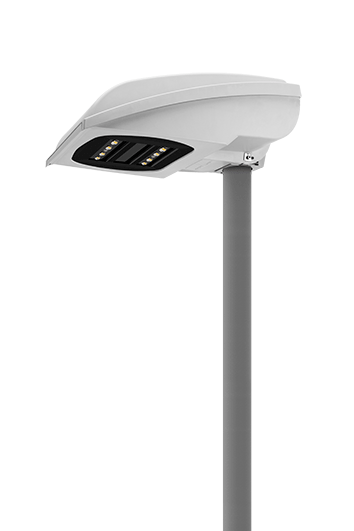

Introducing EYE Lighting’s new street and security luminaire - the Lyra 20 LED, designed for a range of professional outdoor lighting solutions. The Lyra 20 LED is designed to illuminate local streets, parking areas and outdoor industrial premises; it is also easily adaptable for either wall or pole mounting.
Durable and Energy Efficient
Designed for modern lighting systems with an emphasis on energy consumption and long life LED light source, the Lyra 20 LED built with durable technopolymer materials is corrosion resistant even in marine environments. Available in two versions, with 4 or 8 new generation white light LED Multichips and a colour temperature of 4,000K, it provides the market an efficient solution for public area installations.
Installation and Maintenance Advantages
Versions are suitable for mounting on poles in height up to 15m and the integral pole clamp is easily adjusted to suit wall mount installations. Installation is simple via the dual access pole connector that reduces the need for adjustment to correct the luminaire positioning for both straight and curved poles. Maintenance is also simple – the internal components are easily accessed without tools and the wiring plate can also be removed without tools. This fixture is designed to reduce costly man hours installing and maintaining the lighting system.
Designed for Top Performance
Featuring the “Secure Light Distribution” system, whereby light distribution is the sum of the layers of light produced by individual LED modules, uniform light distribution without bright spots is guaranteed even in case of LED failures. The high performance optics provide comfortable glare free illumination and eliminates upward light emissions to remove the problem of light pollution.
Typical Specs
- Real lumen output – 7,012lm (70W) and 3,613lm (35W)
- Body – corrosion and impact resistant technopolymer
- Diffuser - highly transparent with an integrated louvre
- LED lens – highly transparent polycarbonate
- IP66
- IK 09 / 13J
- Surge protection – 3kV
- Safety – isolating terminal interrupts the power supply with the unit is opened
For full product details, download the Lyra 20 LED datasheet here
