LEDVANCE has extended its portfolio of LED luminaires for professional users, with a range of extra flat LED luminaires for recessed or surface mounting.
The Downlight Slim family is intended for narrow spaces such as suspended ceilings. It also offers simple and flexible installation and excellent energy efficiency. These benefits can also be seen in the robust Surface Compact IK10 luminaire which is ideal for heavily frequented stairwells and public buildings.
The perfect downlight for confined spaces

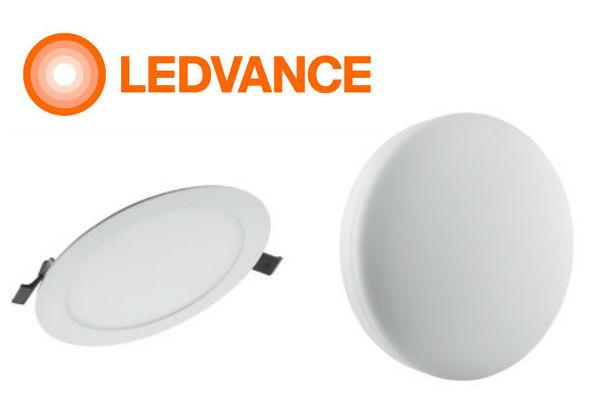

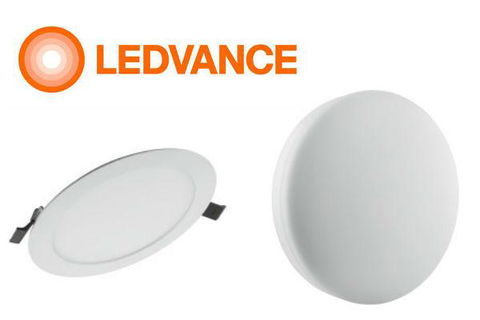

The round, Downlight Slim Value, has been designed for particularly confined spaces. With a mounting depth of only 21 mm, and an external driver with a quick twist and plug connector, it is the slimmest LED luminaire in LEDVANCE’s current professional portfolio. It is available for cutouts with a diameter of 175 or 205 millimeters and with a color temperature of 3,000 or 4,000 Kelvin. At 4,000 Kelvin it delivers up to 1,920 lumens from 22 Watt, and up to 1,400 lumens from 17 Watt. At 3,000 Kelvin it produces up to 1,850 lumens or up to 1,350 lumens for the different wattages.
The other models in the Downlight Slim range have been available since October. They come in two shapes – round or square – with built-in drivers and a mounting height of 29 mm. These luminaires are available for three different cutout sizes (105 mm, 155 mm and 210 mm diameter or edge length) in matching output classes (6 Watt, 12 Watt or 18 Watt) and in three different color temperatures (3,000, 4,000 and 6,500 Kelvin). The largest model delivers up to 1,530 lumens from 18 Watt. Through-wiring to the next luminaire is possible with these models.
Easy installation
The luminaires are installed via a connector box which features push wire terminals and cable clamps to help ensure reliable connections without the need for tools.
A special option for the models with integrated drivers are the surface mounting frames which enable the recessed luminaires to be converted instantly into surface-mounted versions.
Robust and reliable
With a thickness of only 61 mm, a flat design is also a feature of the Surface Compact IK10. At IK10, it offers the highest possible impact resistance and is also protected against theft and vandalism. In addition, the luminaire passes the glow wire test at 850°C, is sealed for life and can be used in damp locations thanks to its IP65 type of protection.
Its robust design makes it ideal for stairwells and public buildings. At 4,000 K it delivers up to 1,920 lumens, and up to 1,800 lumens at 3,000 K. Its rated life is up to 50,000 hours. Ledvance offers a five-year guarantee on the Surface Compact IK10.
You can find more information on the products here: www.ledvance.com
