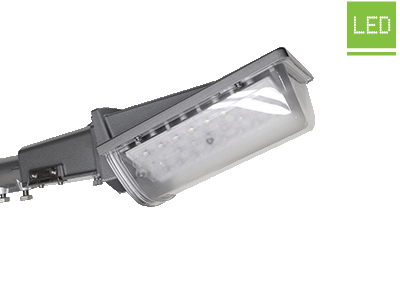

LEDioc Street 40VA – Professional LED Street and Security Lighting Solution

Introducing EYE Lighting’s street and security LED luminaire the LEDioc Street 40VA, a compact and durable solution featuring a long operational life with substantially reduced maintenance requirements. The LEDioc Street 40VA delivers an ideal solution for P4 and P5 street lighting applications as well as security applications.

Reliable and Low Maintenance
Providing a reliable solution, durability is based on the LEDioc Street 40VA lightweight construction (3.8kg max.) from quality materials such as powder coated die-cast aluminium body with effective heat dissipation and an impact resistance acrylic visor. An integral long life PE Cell is included as standard to fully automate the luminaires switching on and off at exactly the right time of day.  A long service life rated at 60,000 hours (LM90) for the LED light source provides excellent longevity with no need for maintenance.

Surge Protection
To avoid unnecessary maintenance, reduced life and poor LED performance, surge protection is included as standard. 15kV (line-ground) and 4kV (line-line) surge protection prevents partial or complete LED failure or reduced output and also protects the LED driver over the life of the luminaire.

Excellent Light Distribution
The street light side throw optics produces highly uniform and low glare light distribution. Luminaire spacing up to 70m is achievable whilst conforming to P4 and P5 lighting categories from AS/NZS 1158.3.1:2005. By using the frosted acrylic visor glare is reduced and uniformity increased for comfortable illumination.

Typical Specs

• Colour temp. – daylight (5000K)
• Colour rendering index – Ra80
• Exit lumens – 2000lm
• Life (LM90) – 60,000 hours
• Surge Protection – 15kV (line-ground) / 4kV (line-line)
• IP65
• Optics – wide side throw
• Body – powder coated die-cast aluminium
• Len/Visor – impact resistant frosted acrylic

Download the LEDioc Street 40VA datasheet here
