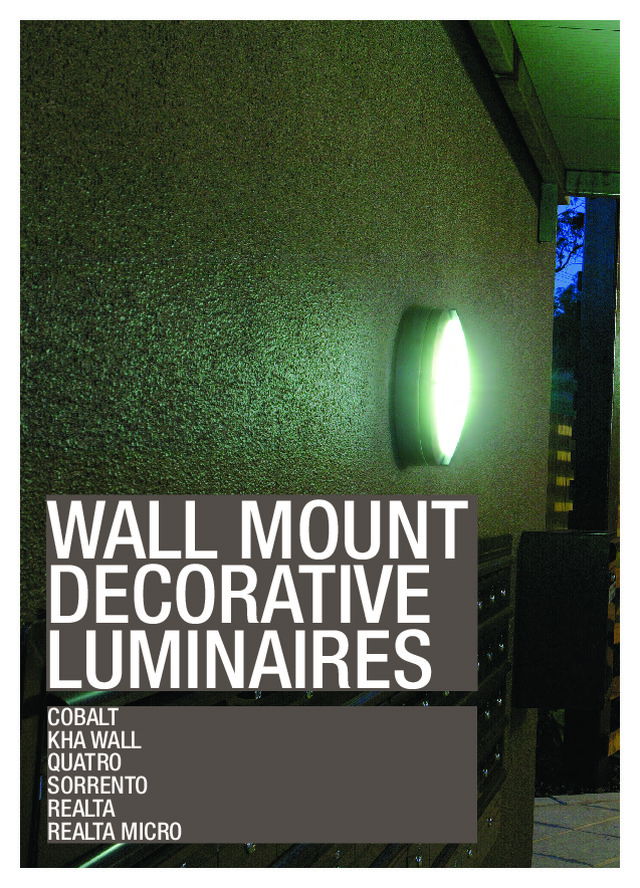

26    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 26 WALL MOUNT DECORATIVE LUMINAIRES COBALT KHA WALL QUATRO  SORRENTO REALTA REALTA MICRO

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 27 REGATTA QUATRO

28    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 340 115 340 130 The Cobalt circular wall-mounted luminaire is designed for either interior or exterior use to provide low glare illumination. The Cobalt is available in two cover frame styles and features an energy-efficient CFL lamp and integral control gear. Ideal applications for this Ip66 fitting include external pathway lighting for schools, hospitals, retail and other commercial surroundings. •  Die-cast aluminium body, pre-treated and powder   coated for durability •  Trim - plain or cross•  Lens - frosted UV stabilised polycarbonate•  Captive stainless steel fixings•  Universal mounting•  Other standard colours include silver and white.  Additional colour options also available on request •  Other wattages available on request•  Emergency and autotest versions available. Cobalt supplied complete with lamp and integral electronic control Gear Code wattage Lamp Type beam Finish Cover 206700 38 CFL symmetrical RAL 9005 black plain Type 206730 38 CFL symmetrical RAL 9005 black Cross Type PLAIN TYPE CROSS TYPE COBALT FEATURES PRODUCT CODES DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM 3.9 4.6 IP66 Cobalt supplied complete with lamp and integral electronic control Gear Code wattage Lamp Type beam Finish Cover 206700 38 CFL symmetrical RAL 9005 black plain Type 206730 38 CFL symmetrical RAL 9005 black Cross Type COBALT CROSS 38W CFL H=2M Class I Cobalt Cobalt Emerg. COBAL T INSTALLATION & SCALE VISUALISATION 29

30    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Ø90 150 The Kha wall is a wall-mounted luminaire designed to provide a 360º wall-washing effect. This high performance luminaire utilises metal halide technology so is also very energy efficient (remote control gear is supplied). It is equally at home in either prestigious settings or in harsh environments. •  Die-cast aluminum body, pre-treated and powder coated  for durability  •  Lens - clear UV stabilized polycarbonate•  Pure and polished anodised aluminum reflector•  Distribution - 360° radiated•  Stainless steel fixings•  Durable gaskets manufactured from silicone•  Wired for individual or in-series connections •  Supplied with remote electronic control gear suitable for installation up to a maximum of 2m from fitting •  Stainless steel option available on request. Kha wall supplied complete with lamp and remote electronic control gear Code wattage Lamp Type beam Finish 225975 20 MH 360º RAL 7039 Matt Grey KHA WALL FEATURES PRODUCT CODES DIMENSIONS  Measurements mm INSTALLATION & SCALE

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Kha wall supplied complete with lamp and remote electronic control gear Code wattage Lamp Type beam Finish 225975 20 MH 360º RAL 7039 Matt Grey TM IP66 IK 09 10J 1.5m 1.5m 10m 25 10 .1 .25 .5 1 2.5 5 KHA wALL 20w MH  1.9 Class I REMOTE COnTROL GEAR max. Class II 0.5m VISUALISATION KHA  W ALL 31

32    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 QUATRO The Quatro is a range of Australian made compact wall mounted luminaires featuring three distinct styles to suit most architectural settings and glare free lighting requirements. It is for use with energy efficient compact fluorescent lamps. The Quatro is pre-treated for corrosion resistance and is ideal for lighting entrances, corridors and walkways.  body is manufactured from pre-treated and die-cast  • aluminium that is powder coated for durability and protection.UV resistant opal acrylic lens for gentle diffused and • glare free lightingTrim options - plain, Eyelid and Cross • For use with energy saving compact fluorescent lamps • stainless steel fasteners are used for corrosion  • resistance and longevityFused terminal block for individual fault finding • supplied complete with lamp and Integral Control Gear • Emergency models available for plain and cross versions • Emergency models are nATA tested. • Quatro with CFL lamp and ferromagnetic control gear Code wattage Lamp Type Distribution Finish 205500 18w CFL plain black 205530 18w CFL Eyelid black 205560 18w CFL Cross black 205700 18w EMERGEnCy CFL plain black 205730 18w EMERGEnCy CFL Cross black 205600 26w CFL plain black 205630 26w CFL Eyelid black 205660 26w CFL Cross black FEATURES PRODUCT CODES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM max. 4.4 IP56 OpEn FACE/CROss syMMETRICAL EyELID AsyMMETRICAL DIMENSIONS  Measurements mm INSTALLATION & SCALE VISUALISATION QUA TRO 33 Ø273 Ø273 Ø273 85 97 85 97 85

34    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 SORRENTO 80 The sorrento series is a range of recessed wall luminaires which are ideally used to provide low-level guidance for corridors, pathways, walkways, entrances and driveways. sorrento luminaires are Australian-made and come in a range of trim styles which offer significant variation in light output to suit the aesthetic of a given installation environment. Versions are available with either louvres or a "prism" face to direct light down. The sorrento utilises a CFL light source with integral control gear and is the size of an Australian brick. A unique bracket system is provided enabling quick installation into plasterboard, bricks and the like. •  Die-cast aluminium body, pre-treated and powder coated for durability •  Trim - louvre or prism styles•  Lens - impact resistant clear UV-stabilised acrylic•  Distribution - symmetrical and downward asymmetrical •  Stainless steel fixings•  Size of a standard Australian brick•  Other standard colours include silver and white.   Additional options available on request. sorrento supplied complete with lamp and Integral ferromagnetic control gear Code wattage Lamp Type beam Finish Lens/Face 205100 9 CFL symmetrical black Opal Lens 205130 9 CFL Downward  Asymmetrical black Louvre style 205160 9 CFL Downward  Asymmetrical black prism style 205300 18 CFL symmetrical black Opal Lens 205330 18 CFL Downward  Asymmetrical black Louvre style 205360 18 CFL Downward  Asymmetrical black prism style 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 2713 6.8 1.4 0.7 3.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 1.4 0.7 3.4 75 80 Mounting Spring 29 75 Plaster Board Installation 29 75 Mortar to encase body 29 75 Mortar to encase body Brick Installation 29 75 Mortar to encase body 29 75 75 Mounting Spring 75 Plaster Board Installation 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 H = 0.4m 9w PL 1x 75 80 Mounting Spring 75 Plaster Board Installation 75 80 Mounting Sprin g 75 Plaster Board Installatio n 191 80 80 pLAsTER bOARD InsTALLATIOn bRICK & COnCRETE InsTALLATIOn 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 2713 6.8 1.4 0.7 3.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 1.4 0.7 3.4 75 80 Mounting Spring 29 75 Plaster Board Installation 29 75 Mortar to encase body 29 75 Mortar to encase body Brick Installation 29 75 Mortar to encase body 29 75 75 Mounting Spring 75 Plaster Board Installation 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 H = 0.4m 9w PL 1x 75 80 Mounting Spring 75 Plaster Board Installation 75 80 Mounting Sprin g 75 Plaster Board Installatio n 191 Mounting Spring 80 80 LOUVRE STyLE pRIsM sTyLE 75 80 80 80 191 PRODUCT CODES FEATURES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM SORRENT O 35 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 2713 6.8 1.4 0.7 3.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 1.4 0.7 3.4 75 80 Mounting Spring 29 75 Plaster Board Installation 29 75 Mortar to encase body 29 75 Mortar to encase body Brick Installation 29 75 Mortar to encase body 29 75 75 Mounting Spring 75 Plaster Board Installation 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 H = 0.4m 9w PL 1x 75 80 Mounting Spring 75 Plaster Board Installation 75 80 Mounting Sprin g 75 Plaster Board Installatio n 191 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 2713 6.8 1.4 0.7 3.4 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 1.4 0.7 3.4 75 80 Mounting Spring 29 75 Plaster Board Installation 29 75 Mortar to encase body 29 75 Mortar to encase body Brick Installation 29 75 Mortar to encase body 29 75 75 Mounting Spring 75 Plaster Board Installation 4.0 0.8 4.0 3.2 2.4 1.6 0.8 m 1.6 2.4 3.2 27 13 6.8 3.4 1.4 H = 0.4m 9w PL 1x 75 80 Mounting Spring 75 Plaster Board Installation 75 80 Mounting Sprin g 75 Plaster Board Installatio n 191 S S 1.4 IP65 HORIZONTAL pRIsM SORRENTO HORIZONTAL 9W CFL H=0.4M SORRENTO PRISM 9W CFL H=0.4M TRIM pRIsM TRIM 17 80 234 80 29 Class I VISUALISATION DIMENSIONS  Measurements mm INSTALLATION & SCALE

36    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 REALTA The Realta pole Mounted luminaire features an asymmetric light output and a wide beam distribution. This aesthetically pleasing design provides glare-free illumination and will add contemporary styling to any lighting project. It utilises a specially-designed precision lens and reflector to ensure high levels of energy efficiency and neglible upward light pollution (less than 2º). This is an ideal design for lighting pathways and parking areas and is available with either a metal halide or a CFL light source (each is supplied with integral control gear). •   Die-cast aluminium body, pre-treated and powder  coated for durability •  Lens – toughened borosilicate glass or polycarbonate •  Reflector – injection moulded polycarbonate reflector with vacuum metallised high purity finish •  Distribution – downward and wide •   stainless steel fixings •  Emergency versions available on request •   Tamperproof screws optional •  Pole mounting attachment included (for 60mm diameters poles) Realta supplied complete with lamp and Integral Electronic Control Gear Code wattage Lamp Type beam Finish Lens 212045 35 MH Asymmetric Graphite borosilicate  Glass 212005 42 CFL Asymmetric Graphite polycarbonate FEATURES PRODUCT CODES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM Polycarbonate IK 10 Glass  IK 06 4.2 6.1 IP66 Class I REAL TA 37 S S APPLICATION ENGINEERING LCA Holdings Pty Ltd 15 Industrial Avenue Wacol QLD 4076Tel. +61 7 3335 3500 / Fax. +61 7 3335 [email protected] 0 5 -5 10 -10 15 -15 20 -20 25 m -25 m 0 5 -5 10 -10 15 -15 20 -20 25 m -25 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.2 0.5 0.5 0.5 0.5 1.0 1.0 1.0 2.0 2.0 2.0 5.0 5.0 10 10 20 eh Isolux at workplane (one luminaire) mounting height maintenance factor : : 3.50 m  0.8 Technical content, produced from IES/EUL/TM14 photometric data files,  by LUMCat® Lighting Software [email protected] APPLICATION ENGINEERING LCA Holdings Pty Ltd 15 Industrial Avenue Wacol QLD 4076Tel. +61 7 3335 3500 / Fax. +61 7 3335 [email protected] 0 5 -5 10 -10 15 -15 20 -20 25 m -25 m 0 5 -5 10 -10 15 -15 20 -20 25 m -25 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2 0.5 0.5 0.5 1.0 1.0 1.0 2.0 2.0 5.0 5.0 10 20 eh Isolux at workplane (one luminaire) mounting height maintenance factor : : 3.50 m  0.8 Technical content, produced from IES/EUL/TM14 photometric data files,  by LUMCat® Lighting Software [email protected] REALTA 35W MH REALTA 42w CFL Dimensions diagram does not include pole mounting attachment DIMENSIONS  Measurements mm INSTALLATION & SCALE VISUALISATION

38    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 REALTA  MICRO pRIsM sTyLE PRODUCT CODES FEATURES The Realta Micro is a compact wall-mounted luminaire which offers energy efficient lighting.  The Realta Micro provides a low maintenance solution and is especially useful for doorway and exit areas.  The aesthetically pleasing design provides glare free illumination and will add contemporary styling to any lighting project. •  Die-cast aluminium body, pre-treated and powder coated for durability •  Standard finish in graphite•  Lens - one piece injection moulded UV-stablised polycarbonate •  Reflector - white polyester powder-coated internal gear   tray/reflector •  Control gear mounted on removable gear tray with fused terminal block •  Distribution - downward and wide•  Stainless steel fixings•  Available in silver on request. Realta with CFL & electronic control gear Code wattage beam Lamp Finish 212245 3W symmetrical LED Graphite 212205 5w symmetrical CFL Graphite

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM REAL TA MICRO 39 VISUALISATION DIMENSIONS  Measurements mm INSTALLATION & SCALE max. 1.3 IP66 IK 10 Class I
