Spectra surface mount weatherproof luminaires
Performance Lighting

Spectra surface mount weatherproof luminaires

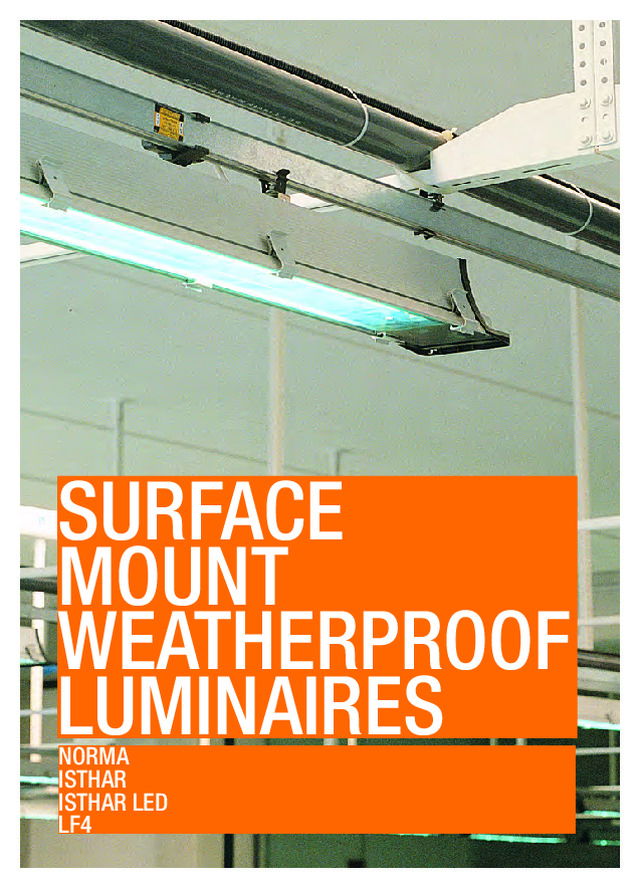

48    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 48 SURFACE  MOUNT   WEATHERPROOF LUMINAIRES NORMA ISTHAR ISTHAR LED LF4

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 49 LF4

50    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 norma  Code wattage Lamp Type beam Finish Length (mm) P05331690 1x28w T5 symmetrical  wide beam RAL 7035 Light Grey 1285 P05331790 1X35W T5 symmetrical  wide beam RAL 7035 Light Grey 1585 P05332090 1x49w T5 symmetrical  wide beam RAL 7035 Light Grey 1585 P05332190 1x54w T5 symmetrical  wide beam RAL 7035 Light Grey 1285 P05332290 1x80w T5 symmetrical  wide beam RAL 7035 Light Grey 1585 P05331890 2x28w T5 symmetrical  wide beam RAL 7035 Light Grey 1285 P05331990 2X35W T5 symmetrical  wide beam RAL 7035 Light Grey 1585 P05332390 2x49w T5 symmetrical  wide beam RAL 7035 Light Grey 1585 The norma is a range of weather resistant and corrosion proof Ip65 fitting suitable for low to medium height mounting in industrial applications; warehouses, storerooms, passages and corridors. body and cover are manufactured from impact resistant polycarbonate. A wide selection of lamp options are available to satisfy a veriety of applications. T5 lamp versions • Electronic control gear suitable for 220-240V, • 50/60Hz supplyBody in polycarbonate light grey RAL 7035 with • directly injected polurethane foam gasket Diffuser in transparent polycarbonate, UV resistant, • with prismatic interiorBody and diffuser in self-extinguishing V2 • UL94 and resistant to the incandescent fillament at  • 850°C stainless steel clips • simple installation stainless steel ceiling brackets • Reflector manufactured in sheet steel finished in • non-yellowing white paint NORMA FEATURES PRODUCT CODES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 TM 5.7 S S IP65 max. IK 09 12J Class I 51 IP 65 CLASS II CLASS I F Max 5,75Kg IK 09 12 J 850 ° SBP TECHNICAL AND UTILIZATION DATA   DATOS TECNICOS Y DE MONTAJE 90 IMQ 105  102 330  675    A      B      I         L 1x18 1x36 1x58 2x18 2x36 2x58 105  102 800 1285105  102 860 1585155  105 330  675155  105 800 1285155  105 860 1585 PG13.5 Ø9÷Ø11 3x2.5mm 2 I ± 10mm L 18 −58W FD A B I ± 10mm 6 4 6.5x16 2 2 OK NO NO IP 65 CLASS II CLASS I F Max 5,75Kg IK 09 12 J 850 ° SBP TECHNICAL AND UTILIZATION DATA   DATOS TECNICOS Y DE MONTAJE 90 IMQ 105  102 330  675    A      B      I         L 1x18 1x36 1x58 2x18 2x36 2x58 105  102 800 1285105  102 860 1585155  105 330  675155  105 800 1285155  105 860 1585 PG13.5 Ø9÷Ø11 3x2.5mm 2 I ± 10mm L 18 −58W FD A B I ± 10mm 6 4 6.5x16 2 2 OK NO NO NORMA DIMENSIONS  Measurements mm INSTALLATION & SCALE

52    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The Isthar series is a range of linear fluorescent luminaires which feature an exceptionally slim profile in a corrosion-resistant anodised aluminium body. The Isthar's slim contemporary design means this high performance luminaire is ideal for prestigious architectural applications from general area lighting to the illumination of architectural features and facades. This linear fluorescent fixture features an IP66 rating and is suitable for indoor and outdoor use.  The low profile also makes it useful when ceiling height is an issue.  Three lengths are available depending on the lamp type utilised. • body manufactured from anodised rigid extruded aluminium • pre-treated die-cast aluminium end caps are sealed to body  with silicon gasket and secured with stainless steel screws • Low profile design suits installation in locations where ceiling  height is a major consideration • Toughened safety glass lens is hinged to the body by two  technopolymer heads • Lens seals the luminaire via anti-aging silicon rubber gaskets • For use with T5 fluorescent lamps • Isthar with HE lamps is suitable for operating in an ambient  temperature of -20º to 50º • wide beam and extra wide beam distribution • A pair of suspension points made from die-cast aluminium  allow for adjustment of the fitting • Available for in-series connections • stainless steel external fixings are supplied. Isthar supplied with integral electronic control gear (lamps not included) Code wattage Lamp Type beam Finish Length (mm) 220205 1 x 14w T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 700 220225 1 x 28w T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 1300 220245 1 x 35W T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 1600 Code Accessories 220397 a) Pair of 316 Stainless Steel Wall Mounting Brackets 220398 b) Pair of 316 Adjustable (100mm) Steel Mounting Brackets 220399 c) Pair of 316 Adjustable (300mm) Steel Mounting Brackets 90 105 L a) b) c) ISTHAR FEATURES PRODUCT CODES DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Isthar supplied with integral electronic control gear (lamps not included) Code wattage Lamp Type beam Finish Length (mm) 220205 1 x 14w T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 700 220225 1 x 28w T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 1300 220245 1 x 35W T5 Adjustable body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 1600 TM 5.1 max. IK 07 3J IP66 0.5m Class II ±12°                                                                                                                                             ISTHAR INSTALLATION & SCALE VISUALISATION 53

54    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The Isthar LED linear luminaire features a slim contemporary design that is well suited for prestigious architectural applications. The Ip66 rated slim form of the Isthar LED means it can be discreetly installed to dramatically highlight architectural details and facades. Another key feature is its efficient low maintenance LED light source. A variety of versions are available featuring either high-efficiency LEDs and integral control gear (white or blue) or RGb colour changing LEDs and remote control gear. The RGb version offers three colour programs (warm colours, cool colours, colour rainbow) or a single fixed colour output. •  Rigid extruded aluminium body, anodised for durability•  Pair of die-cast aluminium mounting brackets provides adjustment for fitting ±12˚ •  Lens - impact resistant clear glass•  Upward aiming possible•  Stainless steel fixings•  Supplied with two stainless steel cable glands for in- series connections •  IP66 breather mounted at single end•  Die-cast aluminium end caps, pre-treated and powder coated for durability •  RGB version - requires appropriate Master and Slave units for operation. Isthar LED supplied complete with lamps and integral electronic control gear Code wattage Lamp Type beam Finish Length  (mm) 220265 8 x 1.4w LED white symmetrical body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 700 220270 8 x 1.4w LED blue symmetrical body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 700 Isthar LED RGB requires remote electronic transformer (24V DC, plus 'Master' or 'Slave' unit depending on config - not included) Code wattage Lamp Type beam Finish Length  (mm) 220285 5 x 3.6W LED RGb 45º body - Anod.  Aluminium,  Ends - RAL 9006  Aluminium Grey 700 Code Accessories 220397 a) Pair of 316 Stainless Steel Wall Mounting Brackets 220398 b) Pair of 316 Adjustable (100mm) Steel Mounting Brackets 220399 c) Pair of 316 Adjustable (300mm) Steel Mounting Brackets 222097 Master Colour Changing Unit 222098 Additional slave Colour Changing Unit 222099 Infrared Remote Control for Master Colour Changing Unit a) b) c) ISTHAR LED FEATURES PRODUCT CODES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 90 105 700 TM 4.8 max. IK 07 3J IP66 III RGB LED RGb COLOUR pROGRAMs 1) Rainbow - 70 second cycle2) Warm Colour - 50 second cycle3) Cool Colour - 50 second cycle 4) Single fixed colour output 0.5m Max 99 SLAVE Diagram for 1 fitting 22209724V DC 40W Esquema para una luminaria. Diagram for 2 fittings Esquema para 2 luminarias Diagram for 3-100 (max) fittings Esquema para 3 hasta 100 luminarias max 222097 222097 222098 222098 222098 222098 24V DC 40W 24V DC 40W Max 99 SLAVE Diagram for 1 fitting 22209724V DC 40W Esquema para una luminaria. Diagram for 2 fittings Esquema para 2 luminarias Diagram for 3-100 (max) fittings Esquema para 3 hasta 100 luminarias max 222097 222097 222098 222098 222098 222098 24V DC 40W 24V DC 40W Max 99 SLAVE Diagram for 1 fitting 22209724V DC 40W Esquema para una luminaria. Diagram for 2 fittings Esquema para 2 luminarias Diagram for 3-100 (max) fittings Esquema para 3 hasta 100 luminarias max 222097 222097 222098 222098 222098 222098 24V DC 40W 24V DC 40W DIAGRAM FOR 1 FITTInG DIAGRAM FOR 2 FITTInGs DIAGRAM FOR 3-100 MAX FITTINGS Class III ISTHAR LED INSTALLATION & SCALE VISUALISATION DIMENSIONS  Measurements mm 55

56    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The LF4 is an IP66 rated linear fluorescent with a striking contemporary look. This high-quality luminaire is manufactured from extruded aluminium with high-efficiency reflectors and is suitable for indoor and outdoor installation under moist or dusty conditions. Various versions are available with different configurations of T5 fluorescent lamps and a choice of either impact resistant glass or polycarbonate. •  Rigid extruded aluminium body, anodised for durability•  Technopolymer end caps•  Lens – impact resistant clear glass or polycarbonate   when using the polycarbonate lens the Ip rating is  reduced to Ip65 •  Pure and polished anodised aluminium reflector •  Stainless steel fixings•  For use with T5 HE (High Efficiency) lamp   (lamps not included) •  Complete with two cable glands and internal wiring for through wiring installation •  Suitable to operate from -20°c to +50°c depending on the lamp and gear version •  Dimmable electronic ballast options available on request. Code Accessories 165250 a) Heavy Duty Wall or Ceiling Mounting Brackets 165255 b) Adjustable Wall or Ceiling Mounting Brackets LF4 supplied with integral electronic control gear (lamps not included) Code wattage Lamp Type beam Finish/Cover Length (mm) 165175 1 x 14w T5 symmetrical Anod. Aluminium/  Glass Cover 785 165190 2 x 14w T5 symmetrical Anod. Aluminium/  Glass Cover 785 165180 1 x 28w T5 symmetrical Anod. Aluminium/  Glass Cover 1395 165195 2 x 28w T5 symmetrical Anod. Aluminium/  Glass Cover 1395 165185 1 x 35W T5 symmetrical Anod. Aluminium/  Glass Cover 1695 165200 2 x 35W T5 symmetrical Anod. Aluminium/  Glass Cover 1695 165212 1 x 14w T5 symmetrical Anod. Aluminium/  polycarb. Cover 785 165216 2 x 14w T5 symmetrical Anod. Aluminium/  polycarb. Cover 785 165213 1 x 28w T5 symmetrical Anod. Aluminium/  polycarb. Cover 1395 165217 2 x 28w T5 symmetrical Anod. Aluminium/  polycarb. Cover 1395 165214 1 x 35W T5 symmetrical Anod. Aluminium/  polycarb. Cover 1695 165218 2 x 35W T5 symmetrical Anod. Aluminium/  polycarb. Cover 1695 a) b) LF4 FEATURES PRODUCT CODES

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Wattage L  mm 14W 785 28W 1395 35W 1695 140 130 L TM max. IK 08 6J 8.5 IP66 IP65 LF4  2 x 28 T5 FLUOREsCEnT 15° 0° 15° 30° 30° C0-C180 C90-C270 90° 60° 45° 100 150 200 Class I Glass Polycarbonate 261 LF4 11 OK NO OK 165250 - 165255 FH FQ FD L  mm 1-2x14W 1-2-x24W 1-2x18W 785 1-2x28W 1-2x54W 1-2x36W 1395 1-2-x35W 1-2x49W 1-2x58W 1695 1-2x80W 1695 L 13 0 140 24÷80W FQ 14÷35W FH 18÷58W FD CARACTERISTICAS DE FABRICACIONInstalacion rapida: Las luminarias se suministran con dos clips  de  acero  inoxidable  para  instalación  en  techo.  Para instalaciones  en  condiciones  severas  o  en  presencia  de vibraciones, como en los túneles, se debe usar los accesorios A0076 o A0077 (ajustable). Calidad constante y larga vida:El vidrio templado asegura mayor tiempo su transparencia y  facilita  su  mantenimiento,  con  garantía  de  rendimiento fotométrico. Alta y baja temperaturas: LF4 luminaria se puede instalar desde -20° hasta +50°C según los modelos. No  combustible:  La  luminaria  se  fabrica  con  965  de materiales no combustibles según Norma V0-UL94. El resto 4% es autoextinguible VO-UL94, a la llama 850°C. Versiones  segun  demanda:  Para  satisfacer  algunos requerimientos se suministran en versiones:-  con difusor de policarbonato (Industria alimentaria), -  con  balasto  electrónico  regulable,  en  tensiones  estandares o especiales. CONSTRUCCION   Cuerpo de aluminio extruído con tapas de tecnopolímero  VO-UL94 (850°C)   Reflector anodizado y pulido, de aluminio puro.  Vidrio templado y securizado, colgante del cuerpo.  Junta de silicona.  Tornillos exteriores de acero inoxidable. SPECIFICATION:Installation: Fittings are supplied complete with two quick fixing strong AISI 316 stainless steel spring ceiling mounting brackets. For heavy duty applications or installations subject to  mechanical  vibration  e.g.  tunnels,  accessories  A0076  or A0077 adjustable mounting brackets are recommended. Quality and longevity:The  clear  toughened  glass  and  high  IP66  integrity  ensure high photometric performance and easy maintenance.  High  and  low  ambient  temperatures:  LF4  fittings  are suitable  to  operate  from  -20°C  to  +50°C  depending  on  the specific lamp and gear version. Non-combustibility:  Manufactured  from  96%  non-combustible  materials  and  4%  self  extinguishing  VO-UL94 material, glow and 850°C hot wire resistant. Special versions: Options are available to meet a variety of applications as follows:Polycarbonate cover (food type applications).Dimmable electronic ballast, special voltage / frequencies. MATERIALS:   Anodised extruded aluminium body with V0UL94 (850°C)  tecnopolymer ends   High purity aluminium reflector anodised and polished.  Toughened safety glass hinged to body  Silicone anti-ageing gaskets  A2 stainless steel external fixings. LF4.indd   261 1-03-2007   11:39:40 261 LF4 11 OK NO OK 165250 - 165255 FH FQ FD L  mm 1-2x14W 1-2-x24W 1-2x18W 785 1-2x28W 1-2x54W 1-2x36W 1395 1-2-x35W 1-2x49W 1-2x58W 1695 1-2x80W 1695 L 13 0 140 24÷80W FQ 14÷35W FH 18÷58W FD CARACTERISTICAS DE FABRICACIONInstalacion rapida: Las luminarias se suministran con dos clips  de  acero  inoxidable  para  instalación  en  techo.  Para instalaciones  en  condiciones  severas  o  en  presencia  de vibraciones, como en los túneles, se debe usar los accesorios A0076 o A0077 (ajustable). Calidad constante y larga vida:El vidrio templado asegura mayor tiempo su transparencia y  facilita  su  mantenimiento,  con  garantía  de  rendimiento fotométrico. Alta y baja temperaturas: LF4 luminaria se puede instalar desde -20° hasta +50°C según los modelos. No  combustible:  La  luminaria  se  fabrica  con  965  de materiales no combustibles según Norma V0-UL94. El resto 4% es autoextinguible VO-UL94, a la llama 850°C. Versiones  segun  demanda:  Para  satisfacer  algunos requerimientos se suministran en versiones:-  con difusor de policarbonato (Industria alimentaria), -  con  balasto  electrónico  regulable,  en  tensiones  estandares o especiales. CONSTRUCCION   Cuerpo de aluminio extruído con tapas de tecnopolímero  VO-UL94 (850°C)   Reflector anodizado y pulido, de aluminio puro.  Vidrio templado y securizado, colgante del cuerpo.  Junta de silicona.  Tornillos exteriores de acero inoxidable. SPECIFICATION:Installation: Fittings are supplied complete with two quick fixing strong AISI 316 stainless steel spring ceiling mounting brackets. For heavy duty applications or installations subject to  mechanical  vibration  e.g.  tunnels,  accessories  A0076  or A0077 adjustable mounting brackets are recommended. Quality and longevity:The  clear  toughened  glass  and  high  IP66  integrity  ensure high photometric performance and easy maintenance.  High  and  low  ambient  temperatures:  LF4  fittings  are suitable  to  operate  from  -20°C  to  +50°C  depending  on  the specific lamp and gear version. Non-combustibility:  Manufactured  from  96%  non-combustible  materials  and  4%  self  extinguishing  VO-UL94 material, glow and 850°C hot wire resistant. Special versions: Options are available to meet a variety of applications as follows:Polycarbonate cover (food type applications).Dimmable electronic ballast, special voltage / frequencies. MATERIALS:   Anodised extruded aluminium body with V0UL94 (850°C)  tecnopolymer ends   High purity aluminium reflector anodised and polished.  Toughened safety glass hinged to body  Silicone anti-ageing gaskets  A2 stainless steel external fixings. LF4.indd   261 1-03-2007   11:39:40 57 LF4 INSTALLATION & SCALE VISUALISATION DIMENSIONS  Measurements mm
