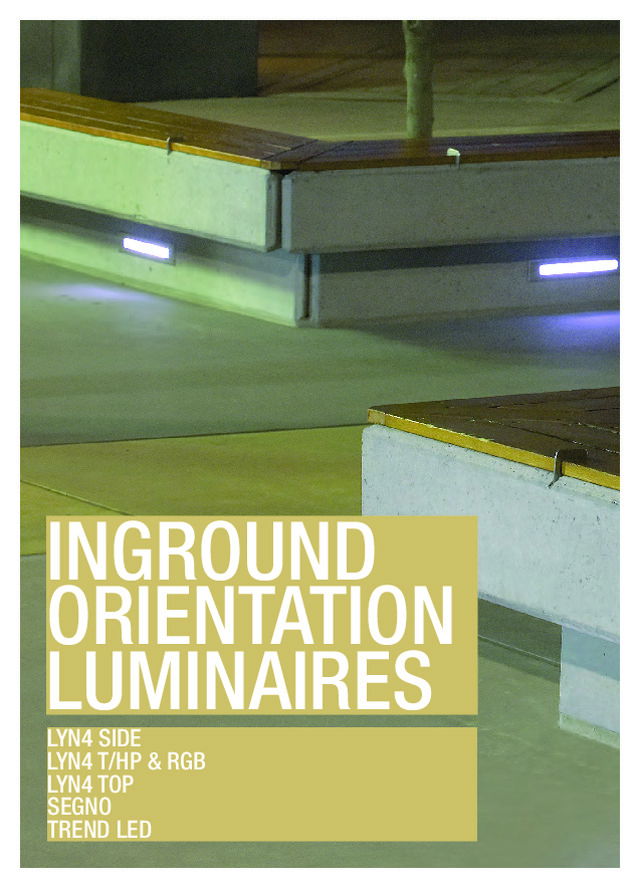

14    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 14 INGROUND ORIENTATION LUMINAIRES LYN4 SIDE LYN4 T/HP & RGB LYN4 TOP SEGNO TREND LED

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 15 COOMERA WATERS SEGNO

16    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The Lyn4 side extra low voltage in-ground LED luminaire  is designed to provide side lighting effects either in a  radius of 120º or 360º. This small IP68-rated luminaire is easily installed and ideal for creating dramatic effects on  walkways and in underpasses and halls, etc.It is designed to take the load and impact from vehicles  and pedestrians when properly installed. It is also  available with a white light source or with either blue,  yellow or red LEDs. •  Technopolymer body and outer recessing enclosure provides corrosion resistance •  Trim - aluminium, pre-treated and powder coated•  Lens - clear UV stabilised polycarbonate•  Distribution - single slotted 120° or three slotted 360°•  When installed correctly into concrete, designed to withstand a maximum static load of 2,500Kg or a  maximum travelling load, by motor vehicles with  pneumatic tyres, of 7,500Kg at 30Km/h •  3 or 9 LED lights totalling 0.5W or 1.5W•  Supplied with two IP68 cable glands for through wiring connection •  Transformers must be ordered separately. Ø108 125 125 157 Lyn 4 Side requires a remote electronic transformer (24V DC Converter) not included Code wattage Lamp Type beam Finish 221755 0.5 LED white 120º RAL 9006 Alum. Grey 221765 0.5 LED blue 120º RAL 9006 Alum. Grey 221775 0.5 LED yellow 120º RAL 9006 Alum. Grey 221785 0.5 LED Red 120º RAL 9006 Alum. Grey 221855 1.5 LED white 360º RAL 9006 Alum. Grey 221875 1.5 LED blue 360º RAL 9006 Alum. Grey 221885 1.5 LED yellow 360º RAL 9006 Alum. Grey 221895 1.5 LED Red 360º RAL 9006 Alum. Grey 120˚ 360˚ LYN4 SIDE FEATURES PRODUCT CODES INSTALLATION & SCALE DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Lyn 4 Side requires a remote electronic transformer (24V DC Converter) not included Code wattage Lamp Type beam Finish 221755 0.5 LED white 120º RAL 9006 Alum. Grey 221765 0.5 LED blue 120º RAL 9006 Alum. Grey 221775 0.5 LED yellow 120º RAL 9006 Alum. Grey 221785 0.5 LED Red 120º RAL 9006 Alum. Grey 221855 1.5 LED white 360º RAL 9006 Alum. Grey 221875 1.5 LED blue 360º RAL 9006 Alum. Grey 221885 1.5 LED yellow 360º RAL 9006 Alum. Grey 221895 1.5 LED Red 360º RAL 9006 Alum. Grey TM 0.5m IK 09 12J III SS IP68 Lyn 4 sIDE OpERATInG sCHEMATIC sInGLE sLOTTED 120° THREE SLOTTED 360° LYN 4  S 360°LYN 4 S 120° 10w 40w  6 max 18 max 24 max 60 max NO  240/230V  AC  max  n max 120m 0.5 Class III A 24 V DC Transformer is required either 10W or 40W depending on number of fixtures. LYN4 SIDE VISUALISATION 17

18    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Lyn 4 T/HP supplied with light source only. The required remote electronic transformer not included Code wattage Lamp Type beam Finish Current Draw 222005 1 x 3.2W LED white 6º (Adjustable) 316 Stainless steel Trim Kit 700mA 222015 1 x 3.2W LED blue 6º (Adjustable) 316 Stainless steel Trim Kit 700mA 222025 1 x 3.2W LED white 2º (Adjustable) 316 Stainless steel Trim Kit 350mA 222035 1 x 3.2W LED blue 2º (Adjustable) 316 Stainless steel Trim Kit 350mA Code Accessories 222097 Master Colour Changing Unit 222098 Additional slave Colour Changing Unit 222099 Infrared Remote Control for Master Colour Changing Unit The Lyn 4 T/Hp and Lyn 4 RGb series covers a range of small in-ground LED luminaires which operate from a extra low voltage supply. They are ideal for up lighting architectural features, directional walkway lighting as well as creating dramatic effects in gardens, parks and public areas. These stylish Ip68-rated luminaires are designed to take the load and impact from vehicles and pedestrians when properly installed. The extra low voltage T/Hp version is fitted with higher-powered LEDs and features a choice of white or blue light and an adjustable beam. The addition of a narrow lens provides a further variant on the high-powered types. The extra low voltage RGb version offers three colour-changing programs (cold colours, warm colours, rainbow). •  Technopolymer body and outer recessing enclosure provides corrosion resistance •  Trim - stainless steel 316L•  Lens - impact resistant clear glass•  Distribution - adjustable narrow beam for high powered versions •  Durable gaskets manufactured from silicone for in-series connections •  Two anti-tearing cable glands for in-series connections•  Control units and transformers must be ordered separately. Ø88 125 125 140 Lyn 4 LED RGB requires remote electronic transformer (24V DC, plus 'Master' or 'Slave' unit depending on config - not included) Code wattage Lamp Type beam Finish Current Draw 222065 1 x 3.6W LED RGb 45º 316 Stainless steel Trim Kit 350mA LYN4 T/HP  & RGB FEATURES PRODUCT CODES DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Code Accessories 222097 Master Colour Changing Unit 222098 Additional slave Colour Changing Unit 222099 Infrared Remote Control for Master Colour Changing Unit Lyn 4 LED RGB requires remote electronic transformer (24V DC, plus 'Master' or 'Slave' unit depending on config - not included) Code wattage Lamp Type beam Finish Current Draw 222065 1 x 3.6W LED RGb 45º 316 Stainless steel Trim Kit 350mA TM sTAnDARD 6˚ nARROw 2˚ 0.5m IK 07 2J III SS IP68 0.51 RGb RGb COLOUR pROGRAMs 1) Rainbow - 70 second cycle2) Warm Colour - 50 second cycle3) Cool Colour - 50 second cycle 4) Single fixed colour output Class III warm A 24 V DC Transformer is required. LYN4  T/HP & RGB INSTALLATION & SCALE VISUALISATION 19

20    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The Lyn4 Top extra low voltage in-ground LED luminaire is ideal for accenting architectural details and for providing directional walkway lighting. This stylish luminaire can also be used to create dramatic effects in gardens, parks and public areas. It is available with a white light source or with either blue, yellow or red LEDs. This small Ip68-rated fixture is also designed to take the load and impact from vehicles and pedestrians when properly installed. •  Technopolymer body and outer recessing enclosure provides corrosion resistance •  Trim - stainless steel 316L•  Lens - impact resistant clear glass with internal prisms•  Distribution - gentle symmetrical•  When installed correctly into concrete, designed to withstand a maximum static load of 1,000Kg or a  maximum travelling load, by motor vehicles with  pneumatic tyres, of 6,000Kg at 30Km/h •  Stainless steel fixings•  9 LED lights totalling 1.5W•  Wired for individual or in-series connections•  Transformers must be ordered separately. Ø88 125 125 140 Lyn 4 Top requires a remote electronic transformer  (24V DC Converter) not included Code wattage Lamp Type beam Finish 221605 1.5 LED white 120º 316 Stainless Steel Trim 221615 1.5 LED blue 120º 316 Stainless Steel Trim 221645 1.5 LED yellow 120º 316 Stainless Steel Trim 221625 1.5 LED Red 120º 316 Stainless Steel Trim LYN4 TOP FEATURES PRODUCT CODES INSTALLATION & SCALE DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Lyn 4 Top requires a remote electronic transformer  (24V DC Converter) not included Code wattage Lamp Type beam Finish 221605 1.5 LED white 120º 316 Stainless Steel Trim 221615 1.5 LED blue 120º 316 Stainless Steel Trim 221645 1.5 LED yellow 120º 316 Stainless Steel Trim 221625 1.5 LED Red 120º 316 Stainless Steel Trim TM DIFFUsED LIGHT Is EMITTED syMMETRICALLy 0.5 IK 07 2J III 0.5m SS IP68 Lyn 4 TOp OpERATInG sCHEMATIC LYN T  10w 40w  3 max 12 max NO  240/230V  AC  max  n max 80m Class III A 24 V DC Transformer is required either 10W or 40W depending on number of fixtures. LYN4  TOP VISUALISATION 21

22    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The segno is a small recessed rectangular LED luminaire suitable for in-ground, wall and ceiling applications to provide directional and accent lighting. This Ip67-rated extra low voltage luminaire is stylish and contemporary and also highly corrosion resistant. It is an ideal solution for a variety of architectural projects - indoors or outdoors. In particular, it can be used to create dramatic effects in public spaces. when properly installed the segno can bear the load and impacts of vehicles and pedestrians. •  Technopolymer body and outer recessing enclosure provides corrosion resistance •  Trim - stainless steel 316L•  Lens - impact resistant frosted glass•  Distribution - gentle symmetrical•  When installed correctly into concrete, designed to withstand a maximum static load of 2,500Kg or a  maximum travelling load, by motor vehicles with  pneumatic tyres, of 12,000Kg at 30Km/h •  Stainless steel fixings•  3 LED lights totalling 3.6W•  Wired for individual or in-series connections•  Transformers must be ordered separately. 300 53 75 75 Segno requires a remote electronic transformer (24V DC Converter) not included Code wattage Lamp Type beam Finish 222705 3 x 1.5W LED white 120º 316 Stainless Steel Trim 222715 3 x 1.5W LED blue 120º 316 Stainless Steel Trim SEGNO FEATURES PRODUCT CODES INSTALLATION & SCALE DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Segno requires a remote electronic transformer (24V DC Converter) not included Code wattage Lamp Type beam Finish 222705 3 x 1.5W LED white 120º 316 Stainless Steel Trim 222715 3 x 1.5W LED blue 120º 316 Stainless Steel Trim TM DIFFUsED LIGHT Is EMITTED syMMETRICALLy .47 IK 08 9J III SS IP67 max 80m 240V/230V AC  NO  SEGNO  15w - 350mA 4 max sEGnO OpERATInG sCHEMATIC max 80m 240V/230V AC  NO  SEGNO  15w - 350mA 4 max Class III max A 24 V DC Transformer is required. SEGNO VISUALISATION 23

24    SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 The Trend LED is a linear in-ground luminaire suitable with a striking contemporary aesthetic. It is for in-ground, wall, ceiling and undercover applications. The low wattage design utilising light emitting diodes (LEDs) results in a very low glass surface temperature. when properly installed for recessed in-ground operation this Ip67 rated fixture bears the load and impact from vehicles and pedestrians. •  Technopolymer body and outer recessing enclosure provides corrosion resistance •  Trim - stainless steel 316L•  Lens - toughened glass with extremely low surface temperatures ( 47°C max) •  Stainless steel fixings•  Individually wired•  When installed correctly into concrete, designed to withstand a maximum static load of 3,000Kg or a maximum travelling load, by motor vehicles with  pneumatic tyres, of 12,000Kg at 30Km/h. If installed into soil, the maximum static load is 300Kg •  In-series connections only available for HP versions•  Master unit to be ordered together with fittings. Trend LED supplied complete with light source and integral electronic transformer  (220-240V, 50/60Hz) Code wattage Lamp Type beam Finish surface Temp  (25ºC) 221355 8 x 1.4w LED white Adjustable ±20º 316 Stainless steel Trim Kit 47ºC max 221365 8 x 1.4w LED blue Adjustable ±20º 316 Stainless steel Trim Kit 47ºC max Trend LED RGB requires remote electronic transformer  (24V DC, plus 'Master' or 'Slave' unit depending on config - not included) Code wattage Lamp Type beam Finish surface Temp  (25ºC) 221385 5 x 3.6W LED RGb 45º 316 Stainless steel Trim Kit 47ºC max Code Accessories 222097 Master Colour Changing Unit 222098 Additional slave Colour Changing Unit 222099 Infrared Remote Control for Master Colour Changing Unit 670630 150 130 LED RGB LED TREND LED FEATURES PRODUCT CODES INSTALLATION & SCALE DIMENSIONS  Measurements mm

SPECTRA LIGHTING  OUTDOOR ARCHITECTURAL CATALOGUE   2011/2012 Trend LED supplied complete with light source and integral electronic transformer  (220-240V, 50/60Hz) Code wattage Lamp Type beam Finish surface Temp  (25ºC) 221355 8 x 1.4w LED white Adjustable ±20º 316 Stainless steel Trim Kit 47ºC max 221365 8 x 1.4w LED blue Adjustable ±20º 316 Stainless steel Trim Kit 47ºC max Trend LED RGB requires remote electronic transformer  (24V DC, plus 'Master' or 'Slave' unit depending on config - not included) Code wattage Lamp Type beam Finish surface Temp  (25ºC) 221385 5 x 3.6W LED RGb 45º 316 Stainless steel Trim Kit 47ºC max Code Accessories 222097 Master Colour Changing Unit 222098 Additional slave Colour Changing Unit 222099 Infrared Remote Control for Master Colour Changing Unit 670630 150 130 TM TREnD LED OpERATInG sCHEMATIC - RGb OnLy IK 09 18J SS IP67 4.5 max. RGb COLOUR pROGRAMs 1) Rainbow - 70 second cycle2) Warm Colour - 50 second cycle3) Cool Colour - 50 second cycle 4) Single fixed colour output 222097 (MASTER) (40W) 220-240V 50-60Hz 222098(SLAVE) 222098(SLAVE) 222098(SLAVE) Max 80m 222098(SLAVE) 222097 (MASTER) 220-240V 50-60Hz Max 80m 222097 (MASTER) 220-240V 50-60Hz Max 80m 222098(SLAVE) 222097 (MASTER) 220-240V 50-60Hz Max 80m 222097 (MASTER) 220-240V 50-60Hz Max 80m Class II A 24 V DC Transformer is required. TREND LED VISUALISATION 25
