Lovato electric: automatic battery chargers
Legrand
Lovato electric: automatic battery chargers
Published: 23 May 2013 · Category: Product Catalogues
From this document

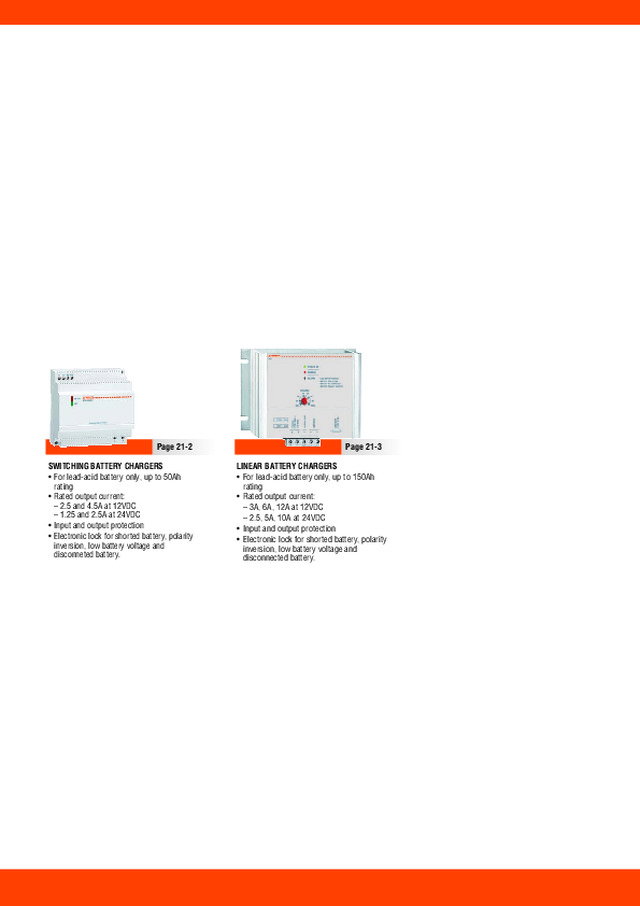

Page 21-2 Page 21-3 SWITCHING BATTERY CHARGERS • For lead-acid battery only, up to 50Ah rating • Rated output current: – 2.5 and 4.5A at 12VDC – 1.25 and 2.5A at 24VDC • Input and output protection • Electronic lock for shorted battery, polarity inversion, low battery voltage and disconneted battery. LINEAR BATTERY CHARGERS • For lead-acid battery only, up to 150Ah rating • Rated output current: – 3A, 6A, 12A at 12VDC – 2.5, 5A, 10A at 24VDC • Input and output protection • Electronic lock for shorted battery, polarity inversion, low battery voltage and disconnected battery. 21 AUTOMATIC BATTERY CHARGERS 1 charging level Versions for lead-acid batteries, 1.25 to 12A ratings Charging current limitation selectable. Automatic battery chargers for lead-acid batteries Switching .......................................................................................................................................................................... Linear ............................................................................................................................................................................... SEC. - PAGE 21 - 2 21 - 3 A UTOMATION AND C ONTROL Dimensions ................................................................................................................. 21 - 4 Wiring diagrams ........................................................................................................... 21 - 4 Technical characteristics...
