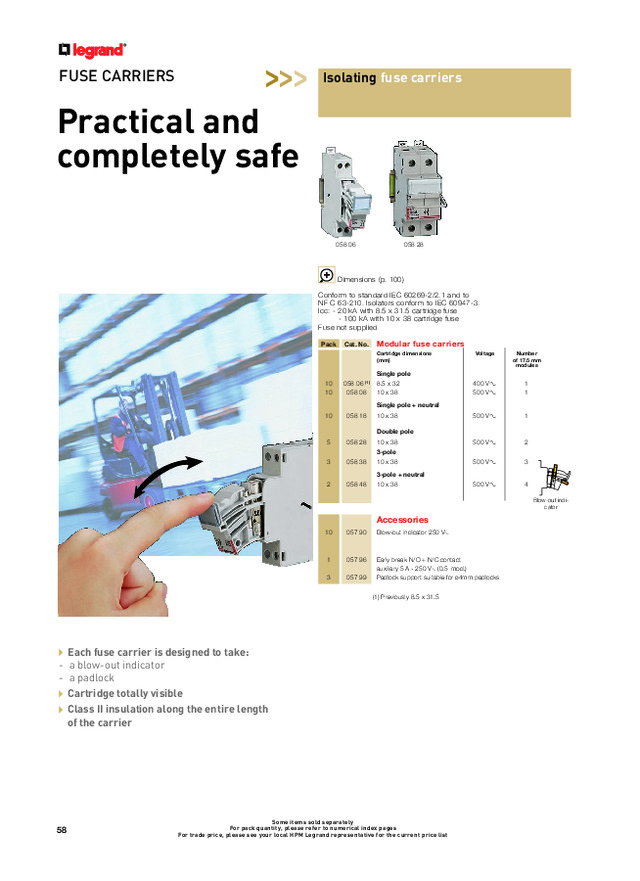

>>> Isolating fuse carriers FUSE CARRIERS Practical and completely safe 058 06 058 28 picto loupe-65765j.eps Dimensions (p. 100) Conform to standard IEC 60269-2/2.1 and to NF C 63-210. Isolators conform to IEC 60947-3. Icc: - 20 kA with 8.5 x 31.5 cartridge fuse - 100 kA with 10 x 38 cartridge fuse Fuse not supplied Pack Cat. No. Modular fuse carriers Cartridge dimensions Voltage (mm) 10 10 058 06 (1) 058 08 10 spe.j34112 058 18 5 Single pole 8.5 x 32 10 x 38 Double pole 058 28 10 x 38 3-pole 3 058 38 2 058 48 400 V 500 V 1 1 500 V 1 Single pole + neutral 10 x 38 10 x 38 500 V 500 V 3-pole + neutral 10 x 38 500 V 2 005790n 3 4 Blow-out indicator Accessories 10 057 90 Blow-out indicator 250 V 1 057 96 3 057 99 Early break N/O + N/C contact auxiliary 5 A - 250 V (0.5 mod.) Padlock support suitable for 4mm padlocks (1) Previously 8.5 x 31.5 Each fuse carrier is designed to take: - a blow-out indicator - a padlock Cartridge totally visible Class II insulation along the entire length of the carrier 58 Number of 17.5 mm modules Some items sold separately For pack quantity, please refer to numerical index pages For trade price, please see your local HPM Legrand representative for the current price list SP fuse carriers SP fuse carriers With protected terminals With protected terminals 021605-26220c.eps SP 51 and SP 58 J V 4.4 B2 B1 B B1 A A B L 44 B2 4.4 C G C H L U N E V W 215 04 216 01 A B B1 B2 C E G In mm SP 51 106 54.5 45 35 51.5 55 53 SP 58 140 74 65 45 66 59 53 Conform to...
