Legrand Weatherproof Plexo Enclosures

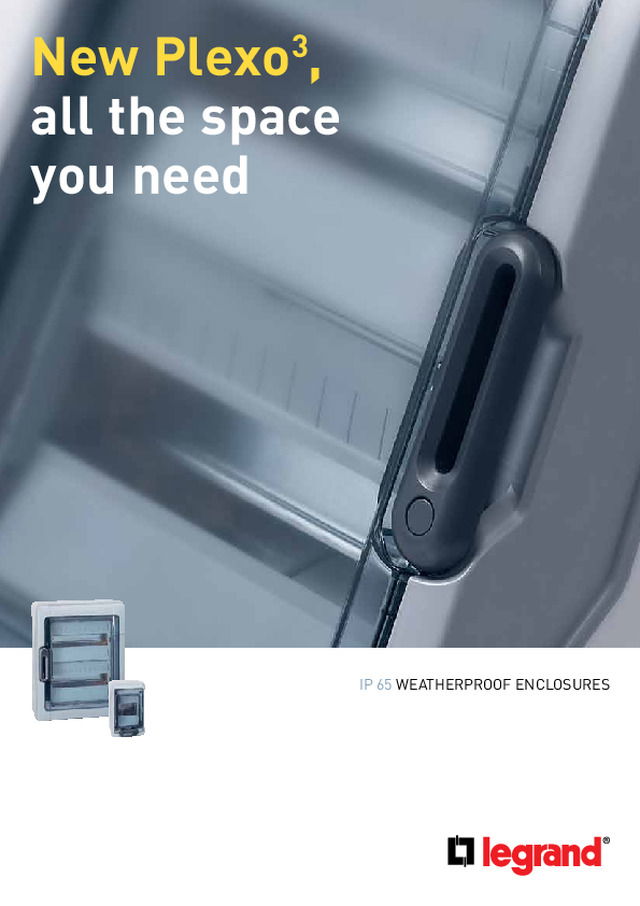

New Plexo 3 ,  all the space   you need IP 65  WEATHERPROOF ENCLOSURES

PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE 2 6 sizes of cabinets• 4 to 36 modules • 12 modules with 1 to 3 rows No constraints on your wiring: plenty of space inside the box A wide range of enclosures…

3 PLEXO ³ -  PLENTY OF SPACE FOR YOUR CONVENIENCE Optimised cable runs 45 mm 150 mm 38 mm Space behind the rails (2-position rail  with depth adjustment) Space between the rails (allowing cables  to run easily) Space at the side

PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE 4 Maximum convenience through modularity Fixing the cabinet… Each enclosure is equipped with  knockout entries for 2 wall-fixing  methods: Hanging method - 1 point in the  middle, 2 points at the bottom.

5 PLEXO ³ -  PLENTY OF SPACE FOR YOUR CONVENIENCE Speed and ease of installation …on the wall Adjustable peripheral method -   4 fixing points. Removable faceplate: easier maintenance of individual rows Rails can be removed one by one Removable chassis for wiring outside  the enlosure Enclosures can be fitted with terminal blocks, which can easily be repositioned, at the top and bottom of the box

PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE 6 It makes no difference  whether the wiring runs from  the top or the bottom. Fully  reversible Door and cabinet are both fully reversible… Available for the whole range 36 modules 4 modules

7 PLEXO ³ -  PLENTY OF SPACE FOR YOUR CONVENIENCE …with guaranteed security Stronger and with better weatherproofing,  you can use them on any of your projects Handle can be locked with a key. IP 65: Weatherproofing and UV treatment guaranteed for applications in damp places IK 09: Enhanced impact resistance (shock-resistant polystyrene) Flush-mounted handle for better shock protection Double closing point to ensure a good seal

PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE 8 ISO membrane glands can be pierced directly by the cable.Tool-free fitting and removal.IP 65, guaranteed with the cable inserted. Larger cable capacity than a standard cable gland.Cable held securely in the membrane gland. Clever accessories  that save you time Direct piercing end caps Cable entries which can also be fitted with cable glands (for commercial and industrial applications). For IP68 plastic cable glands see Legrand catalogue. ISO knockout cable entries Different sizes of direct piercing end caps can  be mounted at the top, bottom and sides of the enclosure Knockout cable entries at the top and bottomand sides of the enclosure Cable glands can be fitted according to your requirements

9 PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE Self-extinguishing: resistance to incandescent wire 650°C  Conform to EN 60439-3 Weatherproof cabinets - IP 65 - IK 09 - Class II Door and cabinet fully reversible Removable chassis and faceplates from 2-row versions up 2-position rail for modular products and moulded cases  Spacing between rails 150 mm Lockable door handle, sealable cover and faceplate Shock-resistant polystyrene material Box colour light grey L750A, cover colour dark grey R746A Supplied with IP2X Earth and Neutral terminal blocks Spare blanking plate included as a standard for 12-24-36 modules 6019 74 Pack Cat.Nos Enclosures 4 to 8 module Number of rows Number of modules 6 6019 74 1 4 6 6019 76 1 6 6 6019 78 1 8 Enclosures 12 modules per row Number of rows No. of 5-module blanking plates 1 6019 81 1 1 1 6019 82 2 2 1 6019 83 3 2 019 55 019 66 Pack Cat.Nos Accessories Key lock 1 019 66 N° 850 Fixing lugs 1 019 69 Set of 4 wall mounting lugs Blanking plates 20 019 61 5, separable into modules or  1/2 module, Grey R746ADirect piercing end caps 1 019 55 Pack consisting of  2 Ø32 mm ISO end caps,  5 Ø25 mm ISO end caps and  10 Ø20 mm ISO end caps 6019 82 Plexo³  product information

PLEXO 3  - PLENTY OF SPACE FOR YOUR CONVENIENCE 10 Cabinets 12, 24 and 36 modules n  Number of knockouts on each side n  Dimensions Cabinets 4, 6 and 8 modules A 48,5 78 C D B E B E A 48,5 89 D C Cat.Nos Dimensions (mm) A B C D E 6019 74 115.6 128 200 120 - 6019 76 115.6 164 200 120 70 6019 78 115.6 200 200 120 106 Cat.Nos Dimensions (mm) A B C D E 6019 81 141 340 282 180 180 6019 82 161 340 432 330 180 6019 83 161 340 622 480 180 Cat.Nos Top/bottom Left/right Ø20 mm Ø25 mm Ø32 mm Ø20 mm Ø25 mm Ø32 mm 6019 74 2 1 - 2 - - 6019 76 4 1 - 2 - - 6019 78 6 1 - 2 - - 6019 81 7 2 2 - - 2 6019 82 13 2 2 - - 3 6019 83 13 2 2 - - 4 n  Direct piercing end caps Cat.No Type Number of end  caps per pack Ø Min. (mm) Max. (mm) 019 55 ISO 20  10 4 13 ISO 25  5 9 18 ISO 32  2 12 25 Plexo³  dimensions
