Legrand Lighting Control Systems

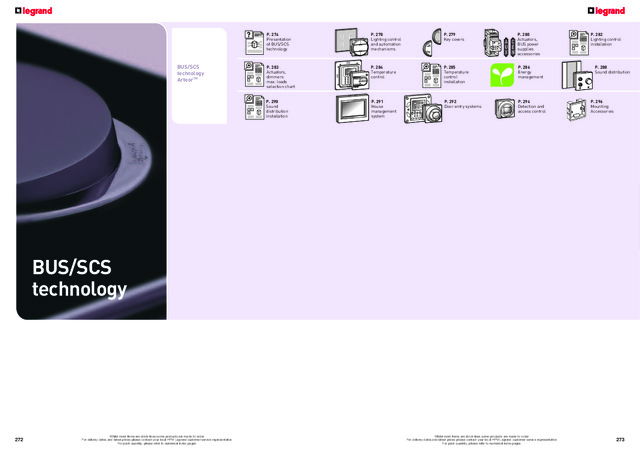

272 273 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages P. 274 Presentation  of BUS/SCS  technology P. 283 Actuators,  dimmers  max. loads  selection chart P. 290 Sound   distribution   installation BUS/SCS  technology  Arteor TM BUS/SCS  technology   P. 278 Lighting control  and automation  mechanisms P. 284 Temperature  control P. 280 Actuators, BUS power  supplies  accessories P. 282 Lighting control  installation P. 279 Key covers P. 285 Temperature  control  installation P. 296 Mounting Accessories P. 291 House  management  system 1 2 3 4 5 ON OFF ON OFF P. 294 Detection and   access control P. 292 Door entry systems P. 286 Energy management P. 288 Sound distribution

274 275 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages BUS/SCS technology For creating scenarios that incorporate all the functions   of large living areas: lighting, sound distribution, video door entry system... BUS/SCS technology can  manage different functions  at the same time via 2-wire  extra low voltage cables.  It enables a number of  functions to be integrated  into scenarios and designed  to adapt the user’s lifestyle  as required.   MULTIPLICATION OF FUNCTIONS WITHOUT   ANY SPACE CONSTRAINTS  WIRING DIAGRAM   Home Automation - EP4 1 2 3     1 2 3     1 2 3     1 2 3     Consumer unit Room BUS line 27 V Actuators A Power supply Touch screen A B B A A AB M N 230 VA Touch Screen BUS line BUS line 27 V A Video display BUS line A 230 VA From actuators BUS line B BUS line SCENARIO CONTROL (See p. 278) For activation of 4 scenarios SCENARIO CONTROL ROLLER BLINDS  CONTROL  ROLLER BLIND CONTROL(See p. 278)  Controls any type  of electric roller blinds   TEMPERATURE CONTROL CENTRAL UNIT FOR TEMPERATURECONTROL(See p. 284)   Can manage up to 99 zones AUDIO AND VIDEO DOOR ENTRY SYSTEM(See p. 292)Controls opening, with the possibility of  intercommunication with other units VIDEO DOOR ENTRY  SYSTEM DIN-RAIL ACTUATORS AND HOUSE MANAGEMENT M Motor Indicates lighting controlIndicates roller blinds control AB DIN RAIL ACTUATORS(See p. 280)To be associated to load and control mechanisms as well asenergy management SOUND DISTRIBUTION CONTROL(See p. 288)Control and selection of audio sources SENSOR(See p. 294)Activation of lights  by movement sensors TOUCH SCREEN(See p. 278)For sound distribution or temperature control SOUND DISTRIBUTION MOVEMENT DETECTION Home Automation - EP4

Device Type Description Mechanism Key covers Support frames and plates 2 wire twisted pair Hard button 1 gang switch + +           + OR          + 2 gang switch 3 gang switch + +                     + 4 gang switch + +                     + 6 gang switch + +                     + Capacitive touch plates 1 or 2 gang  touch plate                                OR                     + 3 gang  touch plate                             N/A Square  modules Adjustable IR detector                                         Magnesium 5739 38 5739 39 White    + OR 1.2" colour  touch screen                                           5739 16 5739 17 Specials plates 3.5" colour  touch screen + 10" multimedia  colour touch screen + Central temperature  control unit                           +   276 277 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages 276 Arteor TM Quick reference guide – BUS/SCS TM 5739 74 5739 74 5739 75 5739 70 5739 68 5739 71 5739 69 Magnesium White 2 x 5739 68 5739 69 6 x 3 x 5739 68 5739 69 4 x 5739 74 5739 74 2 x 5739 68 5739 72 5739 69 5739 73 2 x 1 x + 5739 60 Magnesium 5739 62 5739 63 White 5739 18 5739 19 British   Standard             Black 5739 08 5739 09 White 5760 03 + 5739 12 5739 13 5719 20 + 277 5760 21 5760 21 5756 20 White 5752 30 White 5756 21 Pearl Alu 5752 31 Pearl Alu 5756 22 Graphite 5752 32 Graphite For full selection of plates see page  236 - 237 For full selection of plates see page  236 - 237 Horizontal Installation Horizontal Installation 5756 30 White 5752 50 White 5756 31 Pearl Alu Pearl Alu 5756 32 Graphite 5752 52 Graphite Vertical Installation 3 x 2 x For full selection of plates see page 188 For full selection of plates see page  236 - 237 For full selection of plates see page  236 - 237 For full selection of plates see page  236 - 237 Vertical Installation Italian & American  standard 5739 10 5719 10 5739 11 Black White 5765 24 Mirror White 5765 14 Mirror White 5764 84 Mirror White 5755 00 White White 5755 20 White 5765 25 Mirror Black 5765 13 Mirror Black 5764 83 Mirror Black 5755 01 Pearl Alu Pearl Alu 5755 21 Pearl Alu 5765 26 Stainless Steel 5765 16 Stainless Steel 5764 86 Stainless Steel 5755 02 Graphite 5755 12 Graphite 5755 22 Graphite 5765 20 Gold Brass 5765 10 Gold Brass 5764 80 Gold Brass 5756 56 Stainless Steel 5755 16 Stainless Steel 5755 26 Stainless Steel 5765 37 Woven Metal 5765 17 Woven Metal 5764 87 Woven Metal Vertical Installation Horizontal   use only   for 2 or 3  modules 5719 20 Horizontal   use only   for 2 or 3  modules Vertical  use only  for 2  modules 5719 10 Vertical  use only  for 2  modules 5719 10 Horizontal   use only   for 2 or 3  modules 5719 20 5755 11 5752 51 5755 10

278 279 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Arteor TM  BUS/SCS Lighting control and automation control mechanisms    Pack  Cat. No.     Touch control mechanisms       Equipped with White or Black touch plates       Basic functions         Control for the activation of 1 single        actuator for single or double loads, or 2  actuators for single load, or independent    White Black   double loads for lighting and shutters   1   5739 08  5739 09        2  module  mechanisms  For British standard  flush-mounting boxes (p. 296)   1   5739 10  5739 11      2  module  mechanisms  For 2'' x 4'' Italian and American  flush-mounting boxes         Basic and special functions         Control for the activation of 4 scenarios,  soft-start and soft-stop of dimmers, sound  distribution functions   1   5739 04  5739 05     2 module mechanisms    Can control up to 4 scenarios    For British standard    flush-mounting boxes (p. 296)   1   5739 06   5739 07      2  module  mechanisms  Can control up to 4 scenarios  For 2'' x 4'' Italian and American  flush-mounting boxes   1   5739 12  5739 13      3 module mechanisms     Can control up to 6 scenarios     For British, Italian and American      flush-mounting  boxes      Touch screens        Equipped with White or Magnesium  surround, to be equipped with plates    White Magnesium  (p. 236 - 237)   1   5739 16  5739 17     1.2’’ touch screen for activation    of 4 scenarios or temperature,    or sound distribution functions     To be equipped with 2 module  plates      Scenario controllers with specific  marking for hotels  (see p. 246)   Pack  Cat. No.    Micropush control mechanisms       To be installed in flush-mounting boxes          Basic  functions        To be equipped with round version key  covers (p. 279) and plates (p. 236 - 237)   1   5739 74      2  module  mechanism    Control for the activation of     1 actuator for single or double    loads, or 2 actuators for single load,  or independent double loads for lighting and  shutters   1   5739 75     3 module mechanism    Control for the activation of 3    actuators for single or double    loads, or 2 actuators for single     load or independent double loads           Basic and special functions        To be equipped with round version key  covers (p. 279) and plates (p. 236 - 237)   1   5739 87     2 module mechanism    Control for the activation of    4 scenarios, soft-start and    soft-stop of dimmers, sound  distribution functions and activation of  devices installed on different BUS branches          Scenario controller        Equipped with White or Magnesium round  version rocker plates, to be equipped with    White Magnesium  plates (p. 236 - 237)   1   5739 02  5739 03      2  module  mechanisms    Control for the activation of    4 scenarios stored in the DIN    scenario module Cat. No. 035 51   (p.   281)        IR receivers        Equipped with White or Magnesium square  version cover plates, to be equipped with    White Magnesium  plates (p. 236 - 237)   1   5739 00  5739 01     To be associated with remote       control Cat. No. 882 31    Can receive up to 16 commands Support frames and plates selection charts (p.  236 - 237 )          Mobile scenario controller          Advanced IR remote controller    1   882 31   4 push-buttons to control 4 scenarios  (1 scenario can control several functions:    shutters,  lighting...)      To be used in association with IR receiver  Cat. No.  5739 00/01 5739 74 5739 00 5739 02 5739 04 5739 05 For complete technical  information see  "Arteor TM  - Project and   installation Guide" Arteor TM  BUS/SCS Lighting control and automation key covers   Pack  Cat. No.         1 module key covers         For micropush control mechanisms    White   Magnesium   Regulation symbol   5   5739 64   5739  65        Left-hand side mounting   5   5743 60   5743  61        Right-hand  side  mounting            Light  symbol   5   5743 65   5743 67     Any  mounting                  Dimmer  symbol   5   5743 69   5743 71        Left-hand  side  mounting   5   5743 68   5743 70         Right-hand  side  mounting         GEN/ON/OFF  marking   5   5743 73   5743  75        Left-hand  side  mounting   5   5743 72   5743  74        Right-hand  side  mounting         ON/OFF  marking   5   5743 77   5743  79         Left-hand  side  mounting   5   5743 76   5743  78        Right-hand  side  mounting            Up/down symbol   5   5743 62   5743  63     Any  mounting         Without  marking    5   5739 68   5739  69      2  functions  Any mounting   Pack  Cat. No.    2 module key covers         For micropush control mechanisms    White Magnesium     5   5743 86  5743 87      Regulation  symbol   5   5743 88  5743 89      GEN  marking   5   5743 90  5743 91      Dimmer  symbol   5   5743 92  5743 93      Light  symbol   5   5743 80  5743 81      GEN/ON/OFF  marking   5   5743 82  5743 83      ON/OFF  marking   5   5743 84  5743 85      Up/down  symbol   5   5739 70  5739 71      2 functions without marking White or Magnesium round version key covers For BUS / SCS micropush control mechanisms        Special key covers        For 3 module micropush control    White Magnesium   mechanisms   5   5739 72  5739 73      Central rectangular key cover    for Cat. No. 5739 75 5739 64 5743 87 5739 68 5743 65 5739 70 5743 61 5743 68 5743 63 5743 71 5743 76 5743 91 5743 72 5743 92 5743 88 5739 73 5743 79 5743 75 5743 85 5743 82 5743 81 GEN ON OFF ON GEN OFF ON OFF ON OFF ON OFF GEN ON OFF GEN ON OFF

280 281 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Arteor TM  BUS/SCS Lighting control and automation    Pack  Cat. No.    DIN rail actuators 240 VA - 50/60 Hz       N/O contact        To be associated to loads and control mechanisms        (p.  278)   1   038 41  1-output relay for controlling 1 circuit          Maximum load:        16 A resistive load        2 DIN modules   1   038 42    2-output relay for controlling 2 circuits        Maximum load per circuit:         6 A resistive load or incandescent lamps        1 x 500 VA for roller blinds with end stops        2 DIN modules   1   038 44  4-output relay for controlling 4 circuits        Maximum load per circuit:        6 A resistive load        2 DIN modules   1   026 02  Relay with 4 x 16 A outputs        6 DIN modules       Contact interfaces  Allow the connection between traditional wiring devices  such as switches, time delay switches  or external sensors and BUS installation to control  2 actuators for single function or 1 actuator for double  functions  2 independent contacts     1   035 53  2 DIN modules   1   5739 96  Basic modularity         To be installed in flush-mounting box      DIN rail dimmers       To be associated to loads and control         mechanisms (p. 278) for dimming control        Leading/trailing edge dimmers   1    026 27   6 Channel dimmer.         Maximum load: 300 W per channel       12 DIN modules  230-240 V         Leading edge dimmers   1    036 52   Maximum load: 60 - 1000 W / 230-240 VA - 50 Hz          4 DIN modules      Trailing edge dimmers    1   036 53  Maximum load: 0.25 to 1.7 A / 230-240 VA - 50 Hz         4 DIN modules      For electronic ballast 0-10V    1   036 56  Maximum load: 500 VA        2 DIN modules 036 52 036 53 038 42 026 02       SCS / DALI interface   1   026 31  Allows the communication between SCS installation         and lighting devices controlled by DALI protocol       6 DIN modules       RJ adaptor   10   488 72  For connecting Cat. No.  026 02/21/22/11 to the BUS Technical characteristics (p. 283)   Pack  Cat. No.    BUS power supplies    1   035 60  Input voltage: 240 VA output voltage 27 V=         Maximum current supplied: 1.2mA        8 DIN modules       Mini power supply.      1   035 67  Input voltage: 240 VA output voltage 27 V=         Maximum current supplied: 600mA        2 DIN modules Arteor TM  BUS/SCS Accessories for automation       SCS cables  2-wire cable for BUS system  Conform to IEC 45-5 and IEC 20-20   1   492 31  Length 100 m   1   492 32  Length 500 m       Virtual configuration       Virtual configuration software   1   492  90   Comprising:    1 CD with software for PC   1  492 80  Virtual configuration kit 035 51 035 52 035 62   Pack  Cat. No.    Additional DIN devices       Memory module for actuators    1   035 52   Restores the last state of an actuator in case of a power  failure   2 DIN modules       Scenario module   1  035 51  Allows creation of scenarios by linking different        functions        Up to 16 scenarios        2 DIN modules       SCS-SCS gateway (extension)   1   035 62  Allows the extension of the installation or the integration         between different functions        Suitable for larger installations       2 DIN modules 492 37 492 13 492 19   Pack  Cat. No.    Plug-in jumpers for all devices    10   492 00  0   10   492 01  1   10   492 02  2   10   492 03  3   10   492 04  4   10   492 05  5   10   492 06  6   10   492 07  7   10   492 08  8   10   492 09  9   5   492 10  GEN   5   492 11  GR   5   492 12  AMB   5   492 13  AUX   5   492 14  ON   5   492 15  OFF   5   492 16  O/I   5   492 17  PUL   5   492 18  Sylvania   5   492 19  CEN   5   492 20  ↑↓   5   492 21  ↑↓M   1   261 45  Kit with "0 to 9" jumpers (10 pieces of each figure)   1   492 37  Kit with: AUX, GEN, GR, AMB, ON, OFF, O/I, PUL,         Sylvania,CEN,  ↑↓, ↑↓M       Additional devices       USB cable    1   492 34   Programming cable       BUS spare clamp   10   492 22  Used to connect the various system components           (controls, dimmers, etc) to the BUS line For complete technical  information see  "Arteor TM  - Project and   installation Guide"

282 283 Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages Whilst most items are stock lines some products are made to order For delivery dates and latest prices please contact your local HPM Legrand customer service representative For pack quantity, please refer to numerical index pages System principle The Lighting Control system allows the management of different functions in a simultaneous and integrated way  All the components of the Lighting Control system are interconnected via an electronic circuit that can be programmed: the BUS The information is exchanged through the 2 wire BUS cable at low voltage (27 V= ) There are two types of devices in the system: - the controls units, which are connected only to the BUS cable and - the actuators, connected both, to the BUS cable and to the 230VA mains power line for managing the connected loadWhen the Lighting Control system devices are configured properly, it is possible to manage the load as follows: - control for a single load  - control for one or more load groups;  - simultaneous management of all loadsIt is also possible to carry out special functions, which can hardly be achieved with conventional electrical systems These functions are called scenarios One scenario is a set of simultaneous control of multiple groups of loads, used in order to modify the environment according to the user’s needs An example of a scenario can be represented by the simultaneous activation of lights, which can be set by the user after getting inside the building by  using one single control device or by using the Touch Screen menu Installation principle Consumer unit Power supply Scenario controller Cat.No 5739 02 or 5739 03 Scenario module Cat.No 035 51 Touch control mechanism Cat.No 5739 04 or 5739 05 Touch screen Cat.No 5739 16 or 5739 17 2 wire cable for BUS Cat.No 492 31 Din rail leading edge dimmer Cat.No 036 52Din rail trailing edge dimmer Cat.No 036 53 Din rail actuator Cat.No 038 41 Zone 1 : Kitchen Zone 2 : Dining room Zone 3 : Shutter control Scenario controllers can manage zone 1, 2 and 3 Din rail actuator Cat.No 038 42 Cat.No 035 60 1 1 2 3     1 2 3     2 3     Control units Actuators Loads Lighting source Lighting source Roller blinds, shutters Arteor TM  BUS/SCS Lighting control and automation  Arteor TM  BUS/SCS Lighting control and automation  Actuators and dimmers max. loads at 240 V Technical data - 026 27 Universal Leading edge Trailing edge Cat. No.  Incandescent   lamp Halogen lamp ELV halogen with  ferromagnetic  transformer ELV halogen  with electronic  transformer Fluorescent   tube Compact  fluorescent  lamp LED Fluorescent  lamps with   0-10 V ballast Reducer  motor for  shutter ACTUATORS 038 41 3500 W 3500 W 1000 VA 1000 VA 1000 VA 1000 VA 038 42 2300 W 2300 W 500 VA 250 VA 250 VA 250 VA 500 VA 038 44 1400 W 1400 W 500 VA 70 VA 70 VA 70 VA 500 VA 026 02 4 x 1000 W 4 x 1000 W 4 x 500 VA 4 x 500 VA 4 x 500 VA 4 x 500 VA 4 x 500 VA 4 x 100 VA DIMMERS 036 56 10 x 55 VA 10 x 55 VA 036 52 1000 W 1000 W 1000 VA 036 53 400 VA 026 27 300W 300W 300W 300W 300W 300W +40°C +0°C 230 -240 Vac 50Hz 240 Vac 300W 5W 1 x 2.5mm² 2 x 1.5mm² Incandescent lamp Halogen lamp Ferromagnetic transformer Electronic transformer Fluoro compact lamp LED lamp 300W 5W 300W 5W 300W 5W 300W 5W 300W 5W MAX MIN
