Legrand Floor Boxes
Legrand

Legrand Floor Boxes

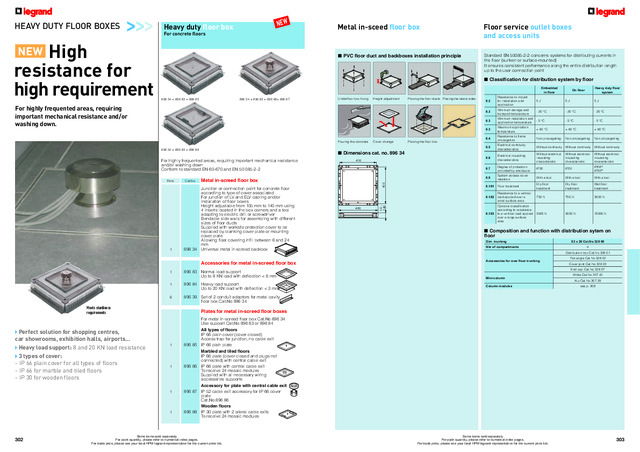

302 303 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. HEAVY DUTY FLOOR BOXES Heavy duty  floor box For concrete floors For highly frequented areas, requiring important mechanical resistance   and/or washing down  Conform to standard EN 60-670 and EN 50 085-2-2       Accessories for metal in-screed floor box    1   896 83   Normal load support  Up to 8 KN load with deflection 6 mm   1   896 84   Heavy load support  Up to 20 KN load with deflection 3 mm   6   896 39   Set of 2 conduit adaptors for metal cavity   floor box Cat.No 896 34       Plates for metal in-screed floor boxes       For metal in-screed floor box Cat.No 896 34  Use support Cat.No 896 83 or 896 84       All types of floors       IP 66 plain cover (cover closed)  Access trap for junction, no cable exit   1   896 85   IP 66 plain plate       Marbled and tiled floors       IP 66 plate (cover closed and plugs not  connected) with central cable exit   1   896 86   IP 66 plate with central cable exit  To receive 24 mosaic modules  Supplied with all necessary wiring  accessories supports       Accessory for plate with central cable exit   1   896 87   IP 52 cable exit accessory for IP 66 cover  plate   Cat.No 896 86       Wooden floors   1   896 88   IP 30 plate with 2 lateral cable exits  To receive 24 mosaic modules    Pack Cat.No.   Metal in-screed floor box       Junction or connection point for concrete floor  according to type of cover associated  For junction of LV and ELV cabling and/or  installation of floor boxes  Height adjustable from 105 mm to 140 mm using  4 inserts located in the box corners and a tool  adapting to electric drill or screwdriver  Bendable side walls for assembling with different  sizes of floor ducts  Supplied with worksite protection cover to be  replaced by blanking cover plate or mounting  cover plate  Allowing floor covering infill between 6 and 24  mm   1   896 34  Universal metal in-screed backbox NEW 896 34 + 896 83 + 896 85 896 34 + 896 83 + 896 88 896 34 + 896 83 + 896 86+ 896 87 High  resistance for  high requirement  For highly frequented areas, requiring    important mechanical resistance and/or    washing down.   Perfect solution for shopping centres,   car showrooms, exhibition halls, airports…   Heavy load support: 8 and 20 KN load resistance   3 types of cover:   - IP 66 plain cover for all types of floors  - IP 66 for marble and tiled floors  - IP 30 for wooden floors Meets sturdiness   requirements NEW Metal in-sceed  floor box n  PVC floor duct and backboxes installation principle Underfloor box fixing Height adjustment Placing the floor ducts Placing the lateral sides Pouring the concrete Cover change Placing the floor box 450 450 480 56  - 140 n  Dimensions cat. no. 896 34 Floor service  outlet boxes   and access units n  Classification for distribution system by floor n  Composition and function with distribution sytem on  floor Standard EN 50085-2-2 concerns systems for distributing currents in the floor (sunken or surface-mounted) It ensures consistent performance along the entire distribution length up to the user connection point Embedded   in floor On floor Heavy duty floor  system 6.2 Resistance to impact for installation and application 5 J 5 J 5 J 6.3 Minimum storage and transport temperature - 25 °C - 25 °C - 25 °C 6.3 Minimum installation and application temperature - 5 °C - 5 °C - 5 °C 6.3 Maximum application temperature + 60 °C + 60 °C + 60 °C 6.4 Resistance to flame propagation Non propagating Non propagating Non propagating 6.5 Electrical continuity characteristics Without continuity Without continuity Without continuity 6.6 Electrical insulating characteristics Without electrical insulating characteristic Without electrical insulating characteristic Without electrical insulating characteristic 6.7 Degree of protection provided by enclosure IP30 IP20 IP66 (A)    IP30 (B) 6.9 System access cover retention With a tool With a tool With a tool 6.101 Floor treatment Dry floor treatment Dry floor treatment  Wet floor treatment  6.102 Resistance to a vertical load applied over a small surface area 750 N 750 N 3000 N 6.103 Optional classification according to resistance to a vertical load applied over a large surface area 3000 N 3000 N 15000 N Dim. trunking 92 x 20 Cat.No 328 00 Nbr of compartments 4 Accessories for over floor trunking Distribution box Cat.No 328 01 Flat angle Cat.No 328 02 Cover joint Cat.No 328 03 End cap Cat.No 328 07 Mini-column White Cat.No 307 42 Alu Cat.No 307 29 Column modules see p. 308

302 303 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. HEAVY DUTY FLOOR BOXES Heavy duty  floor box For concrete floors For highly frequented areas, requiring important mechanical resistance   and/or washing down  Conform to standard EN 60-670 and EN 50 085-2-2       Accessories for metal in-screed floor box    1   896 83   Normal load support  Up to 8 KN load with deflection 6 mm   1   896 84   Heavy load support  Up to 20 KN load with deflection 3 mm   6   896 39   Set of 2 conduit adaptors for metal cavity   floor box Cat.No 896 34       Plates for metal in-screed floor boxes       For metal in-screed floor box Cat.No 896 34  Use support Cat.No 896 83 or 896 84       All types of floors       IP 66 plain cover (cover closed)  Access trap for junction, no cable exit   1   896 85   IP 66 plain plate       Marbled and tiled floors       IP 66 plate (cover closed and plugs not  connected) with central cable exit   1   896 86   IP 66 plate with central cable exit  To receive 24 mosaic modules  Supplied with all necessary wiring  accessories supports       Accessory for plate with central cable exit   1   896 87   IP 52 cable exit accessory for IP 66 cover  plate   Cat.No 896 86       Wooden floors   1   896 88   IP 30 plate with 2 lateral cable exits  To receive 24 mosaic modules    Pack Cat.No.   Metal in-screed floor box       Junction or connection point for concrete floor  according to type of cover associated  For junction of LV and ELV cabling and/or  installation of floor boxes  Height adjustable from 105 mm to 140 mm using  4 inserts located in the box corners and a tool  adapting to electric drill or screwdriver  Bendable side walls for assembling with different  sizes of floor ducts  Supplied with worksite protection cover to be  replaced by blanking cover plate or mounting  cover plate  Allowing floor covering infill between 6 and 24  mm   1   896 34  Universal metal in-screed backbox NEW 896 34 + 896 83 + 896 85 896 34 + 896 83 + 896 88 896 34 + 896 83 + 896 86+ 896 87 High  resistance for  high requirement  For highly frequented areas, requiring    important mechanical resistance and/or    washing down.   Perfect solution for shopping centres,   car showrooms, exhibition halls, airports…   Heavy load support: 8 and 20 KN load resistance   3 types of cover:   - IP 66 plain cover for all types of floors  - IP 66 for marble and tiled floors  - IP 30 for wooden floors Meets sturdiness   requirements NEW Metal in-sceed  floor box n  PVC floor duct and backboxes installation principle Underfloor box fixing Height adjustment Placing the floor ducts Placing the lateral sides Pouring the concrete Cover change Placing the floor box 450 450 480 56  - 140 n  Dimensions cat. no. 896 34 Floor service  outlet boxes   and access units n  Classification for distribution system by floor n  Composition and function with distribution sytem on  floor Standard EN 50085-2-2 concerns systems for distributing currents in the floor (sunken or surface-mounted) It ensures consistent performance along the entire distribution length up to the user connection point Embedded   in floor On floor Heavy duty floor  system 6.2 Resistance to impact for installation and application 5 J 5 J 5 J 6.3 Minimum storage and transport temperature - 25 °C - 25 °C - 25 °C 6.3 Minimum installation and application temperature - 5 °C - 5 °C - 5 °C 6.3 Maximum application temperature + 60 °C + 60 °C + 60 °C 6.4 Resistance to flame propagation Non propagating Non propagating Non propagating 6.5 Electrical continuity characteristics Without continuity Without continuity Without continuity 6.6 Electrical insulating characteristics Without electrical insulating characteristic Without electrical insulating characteristic Without electrical insulating characteristic 6.7 Degree of protection provided by enclosure IP30 IP20 IP66 (A)    IP30 (B) 6.9 System access cover retention With a tool With a tool With a tool 6.101 Floor treatment Dry floor treatment Dry floor treatment  Wet floor treatment  6.102 Resistance to a vertical load applied over a small surface area 750 N 750 N 3000 N 6.103 Optional classification according to resistance to a vertical load applied over a large surface area 3000 N 3000 N 15000 N Dim. trunking 92 x 20 Cat.No 328 00 Nbr of compartments 4 Accessories for over floor trunking Distribution box Cat.No 328 01 Flat angle Cat.No 328 02 Cover joint Cat.No 328 03 End cap Cat.No 328 07 Mini-column White Cat.No 307 42 Alu Cat.No 307 29 Column modules see p. 308

304 305 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Floor boxes For raised or concrete floors Conform to standard NF EN 60-670  IP30 IK07  Workstation connection for raised floor or concrete floor  (using plastic underfloor box, see oppposite page)  Supplied with reversible cover for carpet  For technical space  ≥ 75 mm Mounting boxes (for horizontal wiring device positioning): - height adjustable from 75 to 105 mm - ensures perfect cable separation - takes 2 flexible conduits Ø20 mm - offset one from another for optimal connection for all sockets - takes marking labels - to be equipped with Arteor™ sockets (see p. 307) Easy opening cover by rings and holding in open position during  connection 896 06 equipped   with Arteor™ sockets 896 11 equipped   with Arteor™ sockets  Grey floor box with  cover for carpet 896 16 equipped   with Arteor™ sockets  Pack  Cat.No.   With adjustable height from 75 to 105 mm   to be equipped       Floor boxes equipped with empty mounting boxes  To be equipped with Arteor wiring accessories (p. 307)      12 modules   1   896 06  With cover for carpet  Grey RAL 7031      18 modules   1   896 11  With cover for carpet  Grey RAL 7031      24 modules   1   896 16  With cover for carpet  Grey  RAL 7031 Perfect  integration! Legrand provides equipment for your raised  floors and concrete floor slabs. The floor boxes  blend in with the decor and their ergonomic  design is tailored to users’ requirements. FLOOR BOXES    2 ranges:     Adjustable height (75 to 105 mm) and reduced height (65 mm) for low service spaces    Reversible cover:  That can be covered (carpet, vinyl, parquet, etc.)  and is easy to open (no tool required)    Floor boxes: Available in custom-made solutions for all specific  requirements, please consult us Floor boxes  and underfloor boxes For raised or concrete floors Floor boxes  and underfloor boxes For raised or concrete floors 896 26 896 21 896 30   Pack Cat.No.   Floor boxes with height reduced to 65 mm       Conform to standard NF EN 60 670  IP30 - IK07  For technical space  ≥  65 mm  For renovation with reduced height technical floor or  for concrete floor  Supplied with reversible cover       Mounting boxes (for vertical wiring device  positioning):  - supplied with blanking plates requiring sufficient  space between the sockets if angled plugs are used  - to be equipped with Arteor™ sockets  - takes marking labels  - ensures perfect cable separation  Easy opening cover by rings and holding in open  position during connection      10 modules       For installing 4x2 modules Arteor and 2x1 module  Arteor™   1  896 20  With stainless steel cover   grey RAL 7031   1   896 21  With cover for carpet, grey RAL 7031      16 modules  For installing 8x2 modules Arteor™   1  896 25  With stainless steel cover,   grey RAL 7031   1  896 26  With cover for carpet,   grey RAL 7031         Plastic underfloor boxes       For integration of floor boxes in concrete floor  installations  Power supply by flexible conduits Ø16, 20 and 25mm  Supplied with polystyrene for easy installation (see  opposite)   1   896 30  For integration of floor boxes  12 modules, or floor boxes with  reduced height 10 modules   1   896 31  For integration of floor boxes  18 modules   1   896 32  For integration of floor boxes  24 modules, or floor boxes with reduced height  16 modules n  Installation principles  Installation n  Positioning wiring accessories In floor boxes height 65 mm n  Choice of plastic underfloor box according to the floor box to  be installed A B 18-48 75 65 105 A A B B 18-48 896 25 In floor boxes with adjustable  height 75 to 105 mm   Cat. No.  A (mm)  B (mm) 896 06/20/21  212 252 896 11  252 252 896 16/25/26  306 252 A B Arteor™ GPO’s, A/V and Data Sockets  (p. 307)

304 305 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Floor boxes For raised or concrete floors Conform to standard NF EN 60-670  IP30 IK07  Workstation connection for raised floor or concrete floor  (using plastic underfloor box, see oppposite page)  Supplied with reversible cover for carpet  For technical space  ≥ 75 mm Mounting boxes (for horizontal wiring device positioning): - height adjustable from 75 to 105 mm - ensures perfect cable separation - takes 2 flexible conduits Ø20 mm - offset one from another for optimal connection for all sockets - takes marking labels - to be equipped with Arteor™ sockets (see p. 307) Easy opening cover by rings and holding in open position during  connection 896 06 equipped   with Arteor™ sockets 896 11 equipped   with Arteor™ sockets  Grey floor box with  cover for carpet 896 16 equipped   with Arteor™ sockets  Pack  Cat.No.   With adjustable height from 75 to 105 mm   to be equipped       Floor boxes equipped with empty mounting boxes  To be equipped with Arteor wiring accessories (p. 307)      12 modules   1   896 06  With cover for carpet  Grey RAL 7031      18 modules   1   896 11  With cover for carpet  Grey RAL 7031      24 modules   1   896 16  With cover for carpet  Grey  RAL 7031 Perfect  integration! Legrand provides equipment for your raised  floors and concrete floor slabs. The floor boxes  blend in with the decor and their ergonomic  design is tailored to users’ requirements. FLOOR BOXES    2 ranges:     Adjustable height (75 to 105 mm) and reduced height (65 mm) for low service spaces    Reversible cover:  That can be covered (carpet, vinyl, parquet, etc.)  and is easy to open (no tool required)    Floor boxes: Available in custom-made solutions for all specific  requirements, please consult us Floor boxes  and underfloor boxes For raised or concrete floors Floor boxes  and underfloor boxes For raised or concrete floors 896 26 896 21 896 30   Pack Cat.No.   Floor boxes with height reduced to 65 mm       Conform to standard NF EN 60 670  IP30 - IK07  For technical space  ≥  65 mm  For renovation with reduced height technical floor or  for concrete floor  Supplied with reversible cover       Mounting boxes (for vertical wiring device  positioning):  - supplied with blanking plates requiring sufficient  space between the sockets if angled plugs are used  - to be equipped with Arteor™ sockets  - takes marking labels  - ensures perfect cable separation  Easy opening cover by rings and holding in open  position during connection      10 modules       For installing 4x2 modules Arteor and 2x1 module  Arteor™   1  896 20  With stainless steel cover   grey RAL 7031   1   896 21  With cover for carpet, grey RAL 7031      16 modules  For installing 8x2 modules Arteor™   1  896 25  With stainless steel cover,   grey RAL 7031   1  896 26  With cover for carpet,   grey RAL 7031         Plastic underfloor boxes       For integration of floor boxes in concrete floor  installations  Power supply by flexible conduits Ø16, 20 and 25mm  Supplied with polystyrene for easy installation (see  opposite)   1   896 30  For integration of floor boxes  12 modules, or floor boxes with  reduced height 10 modules   1   896 31  For integration of floor boxes  18 modules   1   896 32  For integration of floor boxes  24 modules, or floor boxes with reduced height  16 modules n  Installation principles  Installation n  Positioning wiring accessories In floor boxes height 65 mm n  Choice of plastic underfloor box according to the floor box to  be installed A B 18-48 75 65 105 A A B B 18-48 896 25 In floor boxes with adjustable  height 75 to 105 mm   Cat. No.  A (mm)  B (mm) 896 06/20/21  212 252 896 11  252 252 896 16/25/26  306 252 A B Arteor™ GPO’s, A/V and Data Sockets  (p. 307)

318 319 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Soluflex ® cable floor system  selection chart Height (mm) Tile Support Double edge plate Single edge plate Step Step corner Ramp Earthing tile 37  84000 10 84037 00 84000 60 84000 61 84037 22 84037 30 84037 40 84000 20 60 84000 10 84060 00 84000 60 84000 61 84060 22 84060 30 84060 40 84000 20 90 84000 10 84090 00 84000 60 84000 61 84090 22 84090 30 84090 40 84000 20 120 84000 10 84120 00 84000 60 84000 61 84120 22 84120 30 84120 40 84000 20 Soluflex Brochure_2010_19-2-10.qxd  8/3/10  2:58 PM  Page 10 (1) (2) 2 1 4 6 5 (3) (4) Cable outlet  tile Accessory outlet tile Fixing bracket Fully - Submerged Arteor TM unit Floor box tile Floor box tile Cable snake – black (2) Mini - column 84000 30 84000 40 84000 50 − − − 81906 41 30729 84000 30 84000 40 84000 50 84060 72 81906 41 30729 84000 30 84000 40 84000 50 − 84090 85 8090 87 81906 41 30729 84000 30 84000 40 84000 50 − 84090 85 8090 87 81906 41 30729 Cable snake The cable snake creates neat, tidy work spaces by concealing cables between the floor and the desk. For more information, contact us on 1300 369 777 Mini column 2 finishes available, aluminium or white. To be equipped with supports for Arteor TM sockets (p. 307) For more information contact us on 1300 369 777 3 7 (5) (6) (7) For boxes 89606, 89620, 89621 For boxes 89625, 89626 Soluflex Brochure_2010_19-2-10.qxd  8/3/10  2:58 PM  Page 11 − − (7)

318 319 Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Some items sold seperately For pack quantity, please refer to numerical index pages. For trade price, please see your local HPM legrand representative for the current price list. Soluflex ® cable floor system  selection chart Height (mm) Tile Support Double edge plate Single edge plate Step Step corner Ramp Earthing tile 37  84000 10 84037 00 84000 60 84000 61 84037 22 84037 30 84037 40 84000 20 60 84000 10 84060 00 84000 60 84000 61 84060 22 84060 30 84060 40 84000 20 90 84000 10 84090 00 84000 60 84000 61 84090 22 84090 30 84090 40 84000 20 120 84000 10 84120 00 84000 60 84000 61 84120 22 84120 30 84120 40 84000 20 Soluflex Brochure_2010_19-2-10.qxd  8/3/10  2:58 PM  Page 10 (1) (2) 2 1 4 6 5 (3) (4) Cable outlet  tile Accessory outlet tile Fixing bracket Fully - Submerged Arteor TM unit Floor box tile Floor box tile Cable snake – black (2) Mini - column 84000 30 84000 40 84000 50 − − − 81906 41 30729 84000 30 84000 40 84000 50 84060 72 81906 41 30729 84000 30 84000 40 84000 50 − 84090 85 8090 87 81906 41 30729 84000 30 84000 40 84000 50 − 84090 85 8090 87 81906 41 30729 Cable snake The cable snake creates neat, tidy work spaces by concealing cables between the floor and the desk. For more information, contact us on 1300 369 777 Mini column 2 finishes available, aluminium or white. To be equipped with supports for Arteor TM sockets (p. 307) For more information contact us on 1300 369 777 3 7 (5) (6) (7) For boxes 89606, 89620, 89621 For boxes 89625, 89626 Soluflex Brochure_2010_19-2-10.qxd  8/3/10  2:58 PM  Page 11 − − (7)
