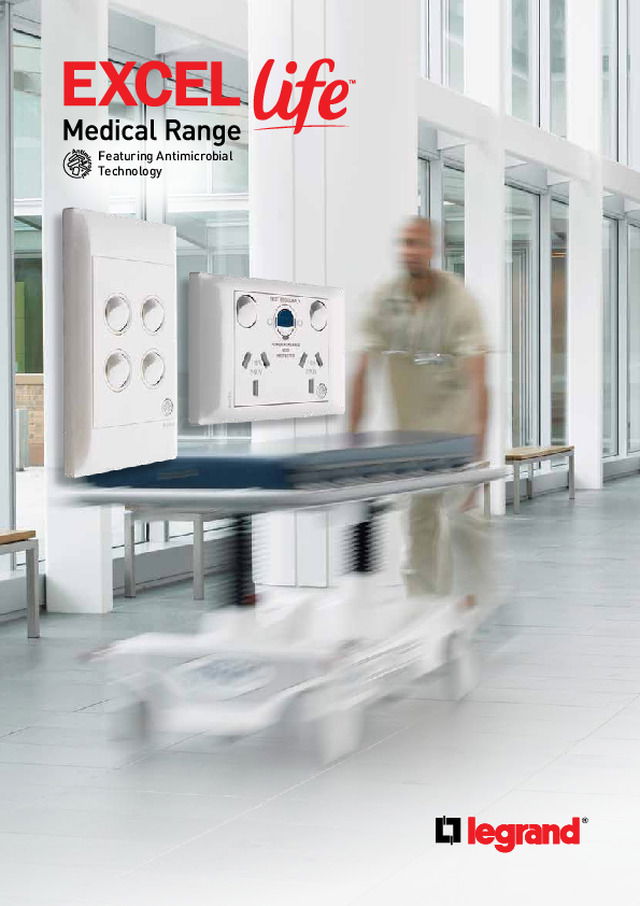

Legrand Excel Life Medical Range 2014

Featuring Antimicrobial Technology

1 Maximising hygiene  and reducing the risk of  cross-contamination for  the safety of patients,  visitors and healthcare  workers is a priority for  healthcare facilities. Legrand has addressed  this need through  the dedicated Excel  Life Medical range; a  comprehensive wiring  devices and accessories  offer featuring  antimicrobial properties  that ensure a safer  healthcare environment. The Excel Life Medical  range offers multiple  functions to enhance both  medical and electrical  safety along with comfort  and convenience; and it  meets the Australian/ New Zealand Standards  AS/NZS 3112, AS/NZS  3003 and AS/NZS 3190. Suitable healthcare  facilities include  hospitals, laboratories,  waiting rooms, dental  clinics and aged care  facilities. The Excel Life  Medical range is also  ideal for areas with strict  hygiene requirements  like industrial  kitchens, restaurants,  toilets, schools and  kindergartens. NEW  EXCEL LIFE   MEDICAL RANGE. ENHANCED SAFETY AND   WELL BEING IN HEALTHCARE. THE   ANTIMICROBIAL   ADVANTAGE The antimicrobial advantage in the Excel  Life Medical range stems from the  material construction based on silver ions  - widely recognised as having antimicrobial  properties that contribute to the reduction  of undesired microorganisms.  This technology reduces the risk of proliferation  of bacteria without building antibiotic resistance,  and together with standard infection control  practices assures optimum hygiene. The Excel Life Medical range has been tested   by an independent TGA accredited laboratory to  JIS Z 2801:2010 and proven to   be an effective antibacterial agent. The results demonstrated a kill  rate against Escherichia Coli   and Staphylococcus Aureus  between 99.72% and   99.9999% . Look for  products with the  antimicrobial symbol.   Please refer to technical data sheets for detailed information on   www.legrand.com.au or www.legrand.co.nz

2 Electrical Safety •  Internal safety shutters are incorporated  in all powerpoints adding an extra  safety barrier from electric shock. •  A range of Electresafe powerpoints  with a built-in 10mA or 30mA Residual  Current Device (RCD safety switch) are  available. Developed specifically for  the healthcare industry, the 10mA RCD  has a more sensitive tripping threshold  enabling greater protection of people and  fault identification of critical equipment. Complete medical functions  and service panels •  Excel Life Medical range includes a variety of  medical service panels (MSPs) in stainless  steel and antimicrobial plastic for patient  rooms and operating theatres. Customised  MSPs are also available on request. •  Response time by care staff is critical in  healthcare facilities so it is essential to  quickly identify different power sources,  circuit and distribution boards. The Excel  Life Medical range offers colour coded  devices for easy identification in accordance  with Australian Medical Standards. The  range also includes integrated Circuit  IDs for powerpoints and switches. THE COMPLETE   END-TO-END  SOLUTION FOR  HEALTHCARE  FACILITIES

3 Integrated and modular design The Excel Life Medical range has a sleek,  modular design that integrates seamlessly with  the rest of the Excel Life range. This means an  extensive choice of additional functions can be  added to enhance healthcare facilities including:•  Skirting  lights with options of a  permanent or movement activated light  are ideal for guiding patients and care  staff at night and preventing injuries.  •  Dual USB chargers that fast charge at 2.1A  per port can be incorporated into powerpoints  and switch plates for charging mobile devices  including phones and tablets. Ideal for patient  and staff rooms. •  No Touch Switches for lighting, auxiliary  switching for water taps, doors and other  applications. The No Touch switch is   activated by waving a hand within 5cm   of the switch plate. Perfect for reducing   cross-contamination. Note: Skirting lights, USB charging mechanisms and No Touch  switches have not been treated with antimicrobial material.

4 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Common plate switch   16AX 230-240V a.c. Standard rocker switch mechanisms,  16AX fluoro rated, chemical resistant   and antimicrobial Vertical plates 10 EC770/1CAWE 1 gang switch 16AX  White 10 EC770/2CAWE 2 gang switch 16AX  White 10 EC770/3CAWE 3 gang switch 16AX  White 10 EC770/4CAWE 4 gang switch 16AX  White Horizontal plates 10 EC770/1HCAWE 1 gang switch 16AX  White 10 EC770/2HCAWE 2 gang switch 16AX  White 10 EC770/3HCAWE 3 gang switch 16AX  White 10 EC770/4HCAWE 4 gang switch 16AX  White No Touch Switch 6 EC914WE No Touch switch, 4A 1 gang 230-240V a.c.  White EC770/1CAWE EC770/2HCAWE EC770/4CAWE Excel Life TM   Switches Pack Cat No. Common plate grid and plates Chemical resistant and antimicrobial 10 EC770/0GPLCAWE Blank grid and coverplate only   White 10 EC770/1GPLCAWE 1 gang grid and coverplate only   White 10 EC770/2GPLCAWE 2 gang grid and coverplate only   White 10 EC770/3GPLCAWE 3 gang grid and coverplate only   White 10 EC770/4GPLCAWE 4 gang grid and coverplate only   White 10 EC770/5GPLCAWE 5 gang grid and coverplate only   White 10 EC770/6GPLCAWE 6 gang grid and coverplate only   White Excel Life TM   Grids and switch  mechanisms EC770/1GPLCAWE EC770/2GPLCAWE EC770/3GPLCAWE EC770/4GPLCAWE Switch mechanisms   16AX 230-240V a.c. Single pole double throw chemical  resistant and antimicrobial 10 EM770CAWE  White 10 EM770CARED  Red In medical applications socket-outlets colour coding requirements  are as follows: Normal Supply – White (WE) Essential Supply – Red (RED) Uninterruptible Supply (UPS) – Dark blue (BU) Cleaners Sockets – Beige (BE) Excel Life – Product Type Catalogue Number Decoder EC777NIDCAWE N: NEON/LED – Power available indicator ID: Circuit Identification CA: Chemical Resistant – Antimicrobial Colour: WE: White, RD: RED, BU: Blue, BE: Beige

5 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Common plate powerpoints  10A 230-240V a.c. Internal safety shutters, chemical  resistant and antimicrobial with power  available LED engraved ‘RCD Protected’ Double powerpoint 10 EC777NCAWE  White 10 EC777NCABU  Blue 10 EC777NCARD  Red Double powerpoint with circuit ID 10 EC777NIDCAWE  White 10 EC777NIDCABU  Blue 10 EC777NIDCARD  Red Single powerpoint 10 EC787NCAWE  White 10 EC787NCABU  Blue 10 EC787NCARD  Red Single powerpoint with circuit ID 10 EC787NIDCAWE  White 10 EC787NIDCABU  Blue 10 EC787NIDCARD  Red Pack Cat No. Common plate vertical powerpoints  10A 230-240V a.c. Internal safety shutters, chemical  resistant and antimicrobial with power  available LED engraved ‘RCD Protected’ Double vertical powerpoint 10 ECV777NCAWE  White 10 ECV777NCABU  Blue 10 ECV777NCARD  Red Single vertical powerpoint 10 ECV787NCAWE  White 10 ECV787NCABU  Blue 10 ECV787NCARD  Red Single vertical powerpoint with circuit ID 10 ECV787NIDCAWE  White 10 ECV787NIDCABU  Blue 10 ECV787NIDCARD  Red Excel Life TM   Powerpoints Excel Life TM   Vertical powerpoints EC777NIDCABU ECV777NCAWE EC787NCAWE ECV787NCAWE ECV787NCARD EC777NCAWE

6 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Common plate single powerpoints  15A 230-240V a.c. Internal safety shutters, chemical  resistant and antimicrobial with power  available LED engraved ‘RCD Protected’ Single powerpoint 10 EC787/15NCAWE  White 10 EC787/15NCABU  Blue 10 EC787/15NCARD  Red Single vertical powerpoint 10 ECV787/15NCAWE  White 10 ECV787/15NCABU  Blue 10 ECV787/15NCARD  Red Pack Cat No. Common plate ‘cleaners’ powerpoints  10A 230-240V a.c. Internal safety shutters, chemical resistant  and antimicrobial, engraved ‘CLEANING  PURPOSES ONLY’ Double powerpoint 10 EC777CABE  Beige Double powerpoint with circuit ID 10 EC777IDCABE  Beige Single powerpoint 10 EC787CABE  Beige Single powerpoint with circuit ID 10 EC787IDCABE  Beige 30mA double electresafe RCD powerpoint 10 EC777EL30CABE  Beige Excel Life TM   15A powerpoints Excel Life TM  ‘Cleaners’ powerpoints EC787CABE EC787/15NCAWE ECV787/15NCAWE EC777CABE In medical applications socket-outlets colour coding requirements  are as follows: Normal Supply – White (WE) Essential Supply – Red (RED) Uninterruptible Supply (UPS) – Dark blue (BU) Cleaners Sockets – Beige (BE)

7 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Common plate electresafe RCD  powerpoints 10A 230-240V a.c. Internal safety shutters, chemical  resistant and antimicrobial with power  available LED and power supplied LED 10mA double electresafe RCD powerpoint 2 EC777EL10CAWE  White 2 EC777EL10CABU  Blue 2 EC777EL10CARD  Red 10mA double electresafe RCD powerpoint   with circuit ID 2 EC777EL10IDCAWE  White 2 EC777EL10IDCABU  Blue 2 EC777EL10IDCARD  Red 30mA double electresafe RCD powerpoint 2 EC777EL30CAWE  White Pack Cat No. Common plate electresafe RCD  vertical plate 20A 230-240V a.c. Chemical resistant and antimicrobial   with power available LED and power  supplied LED 10mA electresafe RCD plate 2 ECEL10N2CAWE  White 2 ECEL10N2CABU  Blue 2 ECEL10N2CARD  Red 10mA electresafe RCD plate with circuit ID 2 ECEL10N2IDCAWE  White 2 ECEL10N2IDCABU  Blue 2 ECEL10N2IDCARD  Red Excel Life TM   Electresafe   RCD powerpoints Excel Life TM   Electresafe   RCD plates EC777EL10CAWE EC777EL10IDCAWE ECEL10N2IDCAWE In medical applications socket-outlets colour coding requirements  are as follows: Normal Supply – White (WE) Essential Supply – Red (RED) Uninterruptible Supply (UPS) – Dark blue (BU) Cleaners Sockets – Beige (BE)

Pack Cat No. Accessories (continued) Plaster brackets 10 712 Plaster board bracket Render brackets 10 EA503/2W 2 gang horizontal render- bracket 10 EA503/3W 3 gang horizontal render- bracket 10 EA503/2H 2 gang vertical render-bracket 10 EA503/3H 3 gang vertical render-bracket 10 EA503/4H 4 gang vertical render-bracket Stud brackets 10 EA143/2W 2 gang horizontal stud-bracket 10 EA143/3W 3 gang horizontal stud-bracket 10 EA143/2H 2 gang vertical stud-bracket 10 EA143/3H 3 gang vertical stud-bracket 10 EA143/4H 4 gang vertical stud-bracket Gas platesChemical resistant and antimicrobial 1 ECGAS1GPLCAWE Gas outlet plate   White 1 ECGAS2GPLCAWE Gas outlet plate with scavenge   White Pack Cat No. Common plate cover plates Cover plates chemical resistant   and antimicrobial 10 ECCWPLAWE 1 gang cover plate  White 10 ECCW2HPLWE 2 gang cover plate   White 10 ECCW3HPLWE 3 gang cover plate   White 10 ECCW3HPLBU 3 gang cover plate   Blue 10 ECCW3HPLRD 3 gang cover plate   Red 10 ECCW4HPLWE 4 gang cover plate   White 10 ECCW2WPLWE 2 gang horizontal cover plate   White 10 ECCW3WPLWE 3 gang horizontal cover plate   White Accessories 10 EMCCWE Cord retention clamp 10 EMCLIDWE Blank insert with clear cap  Used for circuit ID 10 EMIDWE Blank module 10 EM910RPWE Plug and cable retainer to  be used in conjunction with  EC910GPLWE Circuit Identification labels  10 sheets (96 labels per sheet) 10 10 10 10 EACIDLABELWE EACIDLABELBU EACIDLABELRED EACIDLABELYE  White  Blue    Red    Yellow   8 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Excel Life TM   Cover plates   and accessories Excel Life TM   Accessories, brackets   and gas plates EMCCWE ECCW4HPLWE EA503/2W EA143/3H ECGAS1GPLCAWE EM910RPWE In medical applications socket-outlets colour coding requirements  are as follows: Normal Supply – White (WE) Essential Supply – Red (RED) Uninterruptible Supply (UPS) – Dark blue (BU) Cleaners Sockets – Beige (BE)

9 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Standard wall boxes Modular system with adjustable height  insert. Provided with earth wires. Boxes  can be joined horizontally or vertically.  To be equipped with cover plates. (See  dimensions on page 10.) Wall boxes 1 EABOX270 2 Gang recessed 2 module box 70mm spacing 1 EABOX370 3 Gang recessed 3 module box 70mm spacing 1 EABOX470 4 Gang recessed 4 module box 70mm spacing 1 EABOX2100 2 Gang recessed 3 module box 100mm spacing (gas only) 1 EABOX3100 3 Gang recessed 4 module box 100mm spacing (gas only) 1 EA751 Protective shroud for panel mount Equipotential devices Earth stud plates 1 ECEES/1GCAWE 1 Gang equipotential earth stud   White 1 ECEES/2GCAWE 2 Gang equipotential earth stud   White Equipotential boxes 1 EAEPNODE Equipotential node kit supplied   with stainless steel face plate   and earth stud 1 EAEPJUNCTION Equipotential junction kit supplied   with stainless steel face plate Pack Cat No. Wall box stainless steel cover plates Standard stainless steel cover plates   to suit standard wall boxes.   (See dimensions on page 10.) Stainless steel electrical cover plates 1 EA270PLSS Stainless steel 2 gang cover plate  70mm spacing 190mm x190mm 1 EA370PLSS Stainless steel 3 gang cover plate  70mm spacing 265mm x190mm 1 EA470PLSS Stainless steel 4 gang cover plate  70mm spacing 340mm x190mm 1 EA2270PLSS Stainless steel 2+2 gang cover plate  70mm spacing 340mm x190mm 1 EA2370PLSS Stainless steel 2+3 gang cover plate  70mm spacing 415mm x190mm 1 EA3370PLSS Stainless steel 3+3 gang cover plate  70mm spacing 490mm x190mm 1 EA3470PLSS Stainless steel 3+4 gang cover plate  70mm spacing 565mm x190mm Stainless steel gas cover plates  1 EA2100PLSS Stainless steel 2 gang gas   cover plate  100mm spacing 265mm x190mm 1 EA3100PLSS Stainless steel 3 gang gas   cover plate  100mm spacing 340mm x190mm Excel Life TM   Wall Boxes and   equipotential devices Excel Life TM   Stainless steel cover plates EA751 EAEPJUNCTION EAEPNODE EA3470PLSS

10 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Excel Life TM   Wall boxes and cover plates BOX DEPTH = 65mm (EXCLUDING HEIGHT ADJUSTMENT OF BASE) 150 150 300 225 150 190 190 265 340 70 70 70 190 100 100 130 130 102 177 252 85 83 80 88 70 70 70 490 415 340 565 190 190 130 130 177 48 102 48 177 102 48 252 Standard Wall Box Dimensions Standard Stainless Steel   Cover Plate Dimensions BOX DEPTH = 65mm (EXCLUDING HEIGHT ADJUSTMENT OF BASE) 150 150 300 225 150

11 Whilst most items are stock lines some products are made to order. For delivery dates, custom prints and latest prices   please contact your local HPM Legrand customer service representative. Specifications are subject to change without prior notice. Pack Cat No. Skirting lights 230-240V a.c. Skirting lightsSuitable for passage areas or installation   with obstacles 1 EC510WE Permanent skirting LED light,   0.2 or 1W max  White Skirting light with motion detectorThe LED lights are activated when the  PIR sensor detects movement. The  device is equipped with an audible signal  that can be deactivated 1 EC511WE Skirting LED light with PIR sensor 1.3W max  White USB chargers 3 EC920USB2WE Dual socket USB charger plate 2 x 0.75A   White 12 EMUSB2PSWE Dual socket USB charger  mechanism   2 x 2.1A. To be used in  conjunction with an EC777XCAWE  or any other device with an extra  function mechanism hole   White Panel mount adaptors and inserts Panel mount adaptors suitable for panel  thickness of  0.7mm to 3mm 1 Module accepts 1 x 25x57mm inserts 2 Module accepts 50x57mm or 2 x 25x57mm inserts Panel mount adaptors 10 EA910PMAWE Panel mount adaptors - 1 module   White 10 EA920PMAWE Panel mount adaptors - 2 module   White Inserts 10 EA910/0WE Blank insert - 1 module   White 10 EA910/1WE 1 gang insert - 1 module   White 10 EA910/2WE 2 gang insert - 1 module   White Pack Cat No. Common plate powerpoints   10A 230-240V a.c. Internal safety shutters, chemical resistant  and antimicrobial, no engraving Horizontal powerpoints 10 EC777CAWE Double powerpoint  White 10 EC777XCAWE Double powerpoint with extra   function mechanism hole  White 10 EC787CAWE Single powerpoint  White 10 EC787XCAWE Single powerpoint with extra  function mechanism hole  White Vertical powerpoints 10 ECV777CAWE Double vertical powerpoint  White 10 ECV777XCAWE Double vertical powerpoint with extra function mechanism hole  White 10 ECV787CAWE Single Vertical powerpoint  White 10 ECV787XCAWE Single Vertical powerpoint with extra function mechanism hole  White Illumination kits 10 EMPAPS2WE Power available (Amber) and  2 gang power supplied (Red)  indicator kit 230 - 240V a.c.  White 10 EMPAWE Power available indicator kit  (Amber) 230 - 240V a.c.  White 10 EMPS1WE Power supplied to 1 outlet  indicator kit (Red) 230 - 240V a.c.  White 10 EMPS2WE Power supplied to 2 outlets  indicator kit (Red) 230 - 240V a.c.  White Excel Life TM   Skirting lights,   USB chargers, panel mount adapters  and inserts Excel Life TM   Non-engraved   powerpoints and Illumination Kits EC920USB2WE EMUSB2PSWE EC510WE EMUSB2PSWE + EC777XCAWE EC777CAWE EC777XCAWE EMPS2WE

12 Notes
