HPM Weatherproof switches and sockets

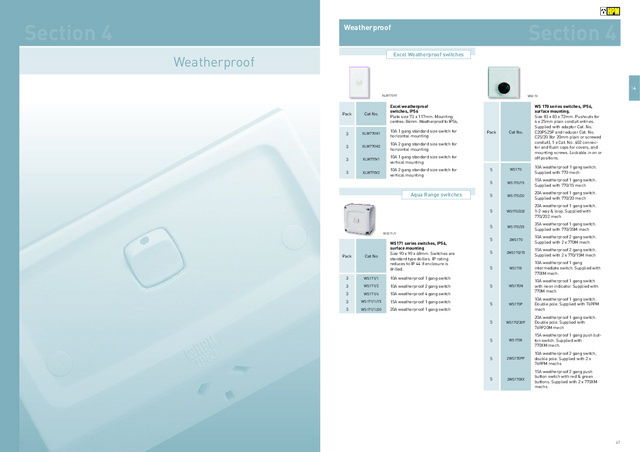

46 47 Section 4 Weatherproof Excel Weatherproof switches Pack Cat No WS171 series switches, IP56, surface mountingSize 90 x 90 x 68mm. Switches are standard type dollies. IP rating reduces to IP 44 if enclosure is drilled. 3 WS171/1 10A weatherproof 1 gang switch 3 WS171/2 10A weatherproof 2 gang switch 3 WS171/4 10A weatherproof 4 gang switch 3 WS171/1/15 15A weatherproof 1 gang switch 3 WS171/1/20 20A weatherproof 1 gang switch Aqua Range switches Pack Cat No. WS 170 series switches, IP56, surface mounting.Size 83 x 83 x 72mm. Pushouts for 6 x 25mm plain conduit entries. Supplied with adaptor Cat. No. C20PS25P and reducer Cat. No. C25/20 (for 20mm plain or screwed conduit), 1 x Cat. No. 402 connec- tor and flush caps for covers, and mounting screws. Lockable in on or off positions. 5 WS170 10A weatherproof 1 gang switch. Supplied with 770 mech 5 WS170/15 15A weatherproof 1 gang switch. Supplied with 770/15 mech 5 WS170/20 20A weatherproof 1 gang switch. Supplied with 770/20 mech 5 WS170/202 20A weatherproof 1 gang switch. 1-2 way & loop. Supplied with 770/202 mech 5 WS170/35 35A weatherproof 1 gang switch. Supplied with 770/35M mech 5 2WS170 10A weatherproof 2 gang switch. Supplied with 2 x 770M mech 5 2WS170/15 15A weatherproof 2 gang switch. Supplied with 2 x 770/15M mech 5 WS170I 10A weatherproof 1 gang intermediate switch. Supplied with 770IM mech. 5 WS170N 10A weatherproof 1 gang switch with neon indicator. Supplied with 770M mech 5 WS170P 10A weatherproof 1 gang switch. Double pole. Supplied with 769PM mech 5 WS170/20P 20A weatherproof 1 gang switch. Double pole. Supplied with 769P20M mech 5 WS170X 15A weatherproof 1 gang push but- ton switch. Supplied with 770XM mech. 5 2WS170PP 10A weatherproof 2 gang switch, double pole. Supplied with 2 x 769PM mechs 5 2WS170XX 15A weatherproof 2 gang push button switch with red & green buttons. Supplied with 2 x 770XM mechs Pack Cat No. Excel weatherproof switches, IP56Plate size 73 x 117mm. Mounting centres: 84mm. Weatherproof to IP56, 3 XLW770H1 10A 1 gang standard size switch for horizontal mounting 3 XLW770H2 10A 2 gang standard size switch for horizontal mounting 3 XLW770V1 10A 1 gang standard size switch for vertical mounting 3 XLW770V2 10A 2 gang standard size switch for vertical mounting Weatherproof Section 4 XLW770V1 WS171/1 WS170 S 4

48 49 Light-sensitive switches Pack Cat No. Weatherproof, light sensitive switches, IP56Size 83 x 83 x 65mm projection. Surface mounting. 1 PE170/10 10A weatherproof light sensitive switch. Opal cover 1 PE170R 10A weatherproof light sensitive switch. Adjustable timer- switches off at a consistent time regardless of season (programmable) Pack Cat No. WS53 series powerpoints, IP53, surface mountingSize 121 x 78 x 86mm. Available in Mist Grey (MG) & White (WE). 1 WS53/1 10A weatherproof single powerpoint, (MG), (WE) 1 WS53/1/X 10A weatherproof single powerpoint with extra switch, (MG) 1 WS53/1/15 15A weatherproof single powerpoint, (MG), (WE) 1 WS53/2 10A weatherproof double powerpoint, (MG), (WE) 1 WS53/2/15 15A weatherproof double powerpoint, (MG) Pack Cat No. WS53 series powerpoints, IP53, flush mountingShallow mounted size 124 x 81 x 63mm. Flush mounting size 121 x 78 x 46mm. Comes complete with shallow mounting block and flush mounting shroud. Available in Mist Grey (MG) & White (WE) 1 WS53F/1 10A weatherproof single powerpoint, (MG), (WE) 1 WS53F/1/15 15A weatherproof single powerpoint, (MG) 1 WS53F/2 10A weatherproof double powerpoint, (MG), (WE) Aqua Range powerpoints Pack Cat No. WS40 series powerpoints, IP53, surface-mounting Mounting centres: Size 84 x 84 x 70mm projection with 4 mounting centres at 70 x 70mm. Pushouts at rear for 20mm and 25mm plain conduit. Supplied with Cat. No. C20PS25 and C25/20 adaptors for 20mm threaded or plain conduit. Base can be screwed to 170 mount- ing block. Side operating lever for switch. Can be padlocked on or off. Provided with flap to cover outlet and give IP53 protection. 5 WS40 10A weatherproof single powerpoint 5 WS40/15 15A weatherproof single powerpoint Section 4 Pack Cat No. WS54 series powerpoints, IP54, surface mountingSize 71 x 81 x 87mm. Available in Mist Grey (MG) 5 WS54/1 10A weatherproof single powerpoint, (MG) Weatherproof Weatherproof Aqua Range industrial isolating switches Pack Cat No. 42 series industrial isolating switches, 3 phase, 440V AC22, IP56, Surface mounting, modular.Size 166 x 83 x 70mm (modular with 83mm square 170 series). Plain conduit entry pushouts 2 x 25mm each side, 2 x 25mm at rear, 1 x 32mm at top, 2 x 25mm at bot- tom and 2 x 32mm drillouts at rear. MT type have the same except for 1 x 32mm threaded at top and 2 x 25mm threaded at bottom. Sealing flush caps provided for mounting screws. Lockable in on or off positions. Switch is rated AS/ NZS3133, AS/NZS3947.3, AC22 (make/break 3 x I n at 0.65 PF, 20 x I n 1 sec short time rating). Motor rating M150, 3kA peak making capacity, 6kA conditional short circuit rating. 25mm max cable size. All switches are provided with straight-through neutral and earth connectors. 1 42/120 20A weatherproof switch, plain entries 1 42/120MT 20A weatherproof switch, 32mm threaded entries 1 42/220 20A weatherproof switch, 2 pole, plain entries 1 42/220MT 20A weatherproof switch, 2 pole, 32mm threaded entries 1 42/235 35A weatherproof switch, 2 pole, plain entries 1 42/235MT 35A weatherproof switch, 2 pole, 32mm threaded entries 1 42/255 55A weatherproof switch, 2 pole, plain entries 1 42/255MT 55A weatherproof switch, 2 pole, 32mm threaded entries 1 42/320 20A weatherproof switch, 3 pole, plain entries 1 42/320MT 20A weatherproof switch, 3 pole, 32mm threaded entries 1 42/335 35A weatherproof switch, 3 pole, plain entries 1 42/335MT 35A weatherproof switch, 3 pole, 32mm threaded entries 1 42/355 55A weatherproof switch, 3 pole, plain entries 1 42/355MT 55A weatherproof switch, 3 pole, 32mm threaded entries Pack Cat No. WSR170 round series switches, IP 56Size 71mm dia x 40mm deep. IP56 when mounted on a standard round conduit junction box, (‘0’ ring gasket provided). Lock on/lock off provision. Mounts onto standard round conduit junction box. Supplied with 770M mech. 5 WSR170 10A 1 gang round weatherproof switch. Pack Cat No. Weatherproof Keylock switches, IP53Size 83mm square x 70mm deep. Size is modular with 42 series and can be joined to other 170 and 42 series boxes using Cat. No. C25P25P or conduit. Pushouts for 6 x 25mm plain conduit entries. Supplied with Cat. No. C20PS25P adaptor and Cat. No. C25/20 reducer (for 20mm plain or screwed conduit), 1 x Cat. No. 4002 connector, flush caps for cover and mounting screws. Note: for common keys, add CK to Cat. No. no switch required eg WS170/20KLICK. 5 WS170KLI 10A weatherproof keylock switch, key removable in on position 5 WS170KLO 10A weatherproof keylock switch, key removable in off position 5 WS170KLIO 10A weatherproof keylock switch, key removable in on or off position 5 WS170/20KLI 20A weatherproof keylock switch, key removable in on position 5 WS170/20KLIO 20A weatherproof keylock switch, key removable in on or off position Section 4 WSR170 WS170KLI 42/220 PE170/10 WS40 WS53/1 WS53F/1 WS54/1 S 4 S 4

50 51 Section 4 Pack Cat No. WS44 series, IP23For surface mounting. Multi-grid ‘gear-tray’ accepts #6 self tapping or #6-32 screws. Pushouts for 25mm and 32mm plain conduit entry. Suitable for all Excel or Standard grids. 1 WS44 Flush mounting weatherproof enclosure with clear door 1 WS44S Surface mounting weatherproof enclosure with clear door 1 WS44B Mounting base for WS44, 113 x 165 x 45mm. 83mm sq x 39mm deep. 25mm conduit knockouts side of rear. IP53 Conduit entry fittings for weatherproof boxes Pack Cat No. Conduit entry fitting for weatherproof boxes 25 C20S20P Converter to join 20mm screwed conduit to box with 20mm plain entry 25 C20PS25P Converter to join 20mm plain or screwed conduit to box with 25mm plain entry 25 C25S25P Converter to join 25mm screwed conduit to box with 25mm plain entryPush-out plugs 25 P25 Pushout plug for 25mm plain conduit entry hole 25 P32 Pushout plug for 32mm plain conduit entry holes Weatherproof Pack Cat No. Bulkhead weatherproof light fittings, IP33Mounting centres: 84mm. Size 235 dia x 110mm deep. Suitable for outdoor and wet areas. Surface or wall mounted. 51 & 84mm mounting centres. Terminal block provided. 20mm knockouts in rim, and 20mm & 35mm conduit entry in base. Grey bases available to special order. 1 616 Bulkhead weatherproof BC light fitting. Max lamp 100W. Clear diffuser, white base 1 616/1V Bulkhead weatherproof light fitting, circular 16W energy-saving fluoro tube. White base. (Opal diffuser only - other diffusers not suitable.) 1 616DCL Diffuser only for 616 series. - Clear Weatherproof utility boxes and enclosures Pack Cat No. WS45 series, IP56For surface mounting. Multi-grid ‘gear-tray’ accepts #6 self tapping or #6-32 screws. Pushouts for 25mm and 32mm plain conduit entry. 1 WS45 Utility box, with clear lid (45mm deep) & multi-grid, gear tray Weatherproof Pack Cat No. WS38 series weatherproof single powerpoints, IP33, surface-mounting Size 73 x 89 x 65mm. Pushouts for 20mm plain conduit at top, sides, rear and bottom. Supplied with 2 x Cat. No. C20S20P connectors for 20mm screwed conduit. Switch padlockable in ‘on’ or ‘off’ position. Sealing flush caps provided for cover and mounting screws. Switch is 770 series, socket is 38 series. 2 WS38 10A weatherproof single powerpoint 2 WS38R 10A weatherproof single powerpoint with round earth 2 WS38P 10A weatherproof single powerpoint with double pole switch Pack Cat No. 2WS38 series weatherproof double powerpoints, IP33, surface-mounting Size 73 x 123 x 76mm projection. Pushouts for 20mm plain conduit at top, sides, rear and bottom. Supplied with 2 x Cat. No. C20S20P adaptors for 20mm screwed conduit. Switch padlockable in ‘on’ or ‘off’ position. Sealing flush caps provided for cover and mounting screws. Switch is 770 series, socket is 38 series. 1 2WS38 10A weatherproof double powerpoint 1 2WS38R 10A weatherproof double powerpoint with round earths 1 WS38/15 15A weatherproof double powerpoint 1 2WS38P 10A weatherproof double powerpoint, with double pole switches Weatherproof light fittings and accessories Section 4 WS38 2WS38 616 WS45 WS44 C20S20P S 4 S 4
