HPM Switches & Sockets

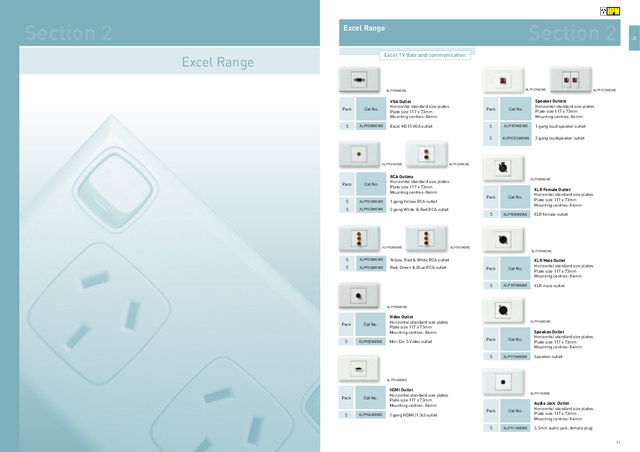

10 11 S 2 Excel Range Section 2 Excel Range Pack Cat No. VGA OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900WEWE Excel HD15 VGA outlet Excel TV data and communication Section 2 Pack Cat No. RCA OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP901WEWE 1 gang Yellow RCA outlet 5 XLP902WEWE 2 gang White & Red RCA outlet 5 XLP903WEWE Yellow, Red & White RCA outlet 5 XLP904WEWE Red, Green & Blue RCA outlet Pack Cat No. Video OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP905WEWE Mini Din S Video outlet Pack Cat No. HDMI OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP906WEWE 1 gang HDMI (1.3c) outlet Pack Cat No. Speaker OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP907WEWE 1 gang loud speaker outlet 5 XLP907/2WEWE 2 gang loudspeaker outlet XLP900WEWE XLP904WEWE XLP903WEWE XLP905WEWE XLP902WEWE XLP901WEWE XLP906WEWE XLP907WEWE XLP907/2WEWE Pack Cat No. XLR Female OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP908WEWE XLR female outlet Pack Cat No. XLR Male OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP909WEWE XLR male outlet XLP908WEWE XLP909WEWE Pack Cat No. Speakon OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP910WEWE Speakon outlet Pack Cat No. Audio Jack OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP911WEWE 3.5mm audio jack, female plug XLP910WEWE XLP911WEWE

12 13 S 2 Excel Range Section 2 Pack Cat No. USB OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP943WEWE 1 gang USB (2.0) female outlet 5 XLP943/2WEWE Double USB (2.0) Pack Cat No. DVI OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP950WEWE 1 gang DVI outlet Pack Cat No. VGA and Audio Jack OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900AU WEWE VGA and 3.5 audio jack Pack Cat No. VGA and USB OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900USB WEWE VGA and USB (2.0) outlet S 2 Pack Cat No. RGB and RCA OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904R2WEWE RGB and White/Red RCA outlet Pack Cat No. RGB and USB OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904USB WEWE RGB and USB (2.0) outlet Pack Cat No. RGB and RCA OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904R3WEWE RGB and Yellow/Red/White RCA outlet Pack Cat No. RGB OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904/2WEWE Double RGB outlet Pack Cat No. RGB and S Video OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904S- VWEWE RGB and S video outlet Excel Range Section 2 XLP943/2WEWE XLP943WEWE XLP950WEWE XLP900AUWEWE XLP900USBWEWE XLP904R2WEWE XLP904SVWEWE XLP904USBWEWE XLP904R3WEWE XLP904/2WEWE Pack Cat No. WiFi outlets 5 XLP945WEWE WiFi access point, frequency band 802.11b/g, 802.11A 5 XLP946WEWE WiFi access point with jack, frequency band 802.11b/g, 802.11A 5 XLP947WEWE WiFi cover plate white gloss 5 XLP948WEWE WiFi frame Pack Cat No. WiFi accessories 5 XLP949WEWE WiFi mounting block white 5 XLP949WB WiFi wall box 42mm XLP946WEWE XLP949WEWE Pack Cat No. Modular series RJ outletsPlate size: 117 x 73mm Mounting centres: 84mm 10 XL770/1RJ2 Single RJ45 outlet (phone/data, Cat 5E) 10 XLP770/1RJ2 Single RJ45 outlet (phone/data, Cat 5E) (Gloss) 10 XL770/2RJ2 Double RJ45 outlet (phone/data, Cat 5E) 10 XLP770/2RJ2 Double RJ45 outlet (phone/data, Cat 5E) (Gloss) 10 XL770/1RJ1 Single RJ45 outlet 10 XLP770/1RJ1 Single RJ45 outlet (Gloss) 10 XL770/2RJ1 Double RJ12 outlet 10 XLP770/2RJ1 Double RJ12 outlet (Gloss) XL770/1RJ2 Pack Cat No. Telephone outletsPlate size: 73 x 117mm Mounting centres: 84mm 10 XL770TO Excel telephone outlet to suit Telecom 610 socket 10 XLP770TO Excel telephone outlet to suit Telecom 610 socket (Gloss) XL770TO Pack Cat No Double size communication outlet combinationsPlate size: 117 x 146mm 1 XL222/2T 10A double powerpoint, 2 x F con- nectors and 2 x RJ45 sockets (8P8C - Cat 5E), 2 horizontal plates tall 1 XL222PA/2T 10A double powerpoint with surge protection, 2 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 2 horizontal plates tall XL222/2T Pack Cat No Triple size communication outlet combinationsPlate size: 117 x 219mm 1 XLV424/3W 2x 10A double powerpoint, 4 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 3 vertical plates wide 1 XL422PA/3T 1x 10A double powerpoint with surge protection, 1 x 10A double powerpoint, 2 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 3 horizontal plates tall 1 XLV6/3W 3 x 10A double vertical powerpoints. 3 vertical plates wide XL422PA/3T

14 15 Excel Range Section 2 Pack Cat No. Emergency LightHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP941WEWE Power failure safety light Pack Cat No. Movement sensor switchesHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP912WEWE Movement sensor 3 wire 1000W 5 XLP913WEWE Movement sensor 2 wire 400W Pack Cat No. No-touch switchHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP914WEWE No-touch switch Pack Cat No. Emergency SwitchHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP915WEWE Emergency stop mushroom Pack Cat No. Hotel Room IndicatorsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP924WEWE Room indicator push 5 XLP925WEWE Room control lamp and bell Pack Cat No. Illuminated SignsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm Labels available on PDF, printed on standard transparent paper. 5 XLP926WEWE Illuminated sign with White LED 5 XLP927WEWE Illuminated sign with Blue LED 5 XLP928WEWE Illuminated sign Green/Red LED, dual scenario Pack Cat No. Bulkhead LightsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP930WEWE Red bulkhead light 12/24V 5 XLP931WEWE White bulkhead light 12/24V 5 XLP932WEWE Green bulkhead light 12/24V 5 XLP933WEWE Blue bulkhead light 12/24V 5 XLP934WEWE Red bulkhead light 230V 5 XLP935WEWE White bulkhead light 230V 5 XLP936WEWE Green bulkhead light 230V 5 XLP937WEWE Blue bulkhead light 230V Pack Cat No. Skirting LightsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP939WEWE Skirting light permanent 5 XLP940WEWE Skirting light with PIR sensor and sound Excel Range Section 2 XLP924WEWE XLP925WEWE XLP926WEWE XLP927WEWE XLP928WEWE XLP928WEWE XLP931WEWE XLP939WEWE XLP940WEWE XLP912WEWE XLP914WEWE XLP915WEWE XLP941WEWE S 2 S 2 Pack Cat No. BuzzersHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP917WEWE Buzzer 230V 5 XLP918WEWE Electronic buzzer 12/24/48V Pack Cat No. Shutter SwitchesHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 500W, 3 Wire 5 XLP919WEWE Relay control shutter switch 5 XLP920WEWE Direct control shutter switch Pack Cat No. Temperature ControlHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP921WEWE Thermostat control HVAC XLP917WEWE XLP919WEWE XLP921WEWE Excel range commercial and hospitality Pack Cat No F connector pay-TV outletPlate size: 73 x 117mm Mounting centres: 84mm 10 XL770F F connector for cable, microwave & satelite TV. 75 ohm, 1G rated (Foxtel Approval No: G21) 10 XLP770F F connector for cable, microwave & satelite TV. 75 ohm, 1G rated (Gloss)(Foxtel Approval No: G21) Pack Cat No Standard size TV and FM-TV outlets Standard size: 73 x 117mm Mounting centres: 84mm 10 XL770/1CX 75 ohm coax outlet 10 XLP770/1CX 75 ohm coax outlet (Gloss) 10 XL770/1FCX 75 ohm coax to F connector 10 XLP770/1FCX 75 ohm coax to F connector (Gloss) Pack Cat No Architrave TV outletsPlate size: 32 x 68mm Mounting centres: 70mm 10 XLA770/1CX 75 ohm coax outlet XL770/1CX XLA770/1CX XL770F

16 17 Pack Cat No. Standard size weatherproof switches, IP56Plate size 73 x 117mm. Mounting centres: 84mm. 3 XLW770H1 10A 1 gang standard size switch for horizontal mounting 3 XLPW770H1 10A 1 gang standard size switch for horizontal mounting (Gloss) 3 XLW770H2 10A 2 gang standard size switch for horizontal mounting 3 XLPW770H2 10A 2 gang standard size switch for horizontal mounting (Gloss) 3 XLW770V1 10A 1 gang standard size switch for vertical mounting 3 XLPW770V1 10A 1 gang standard size switch for vertical mounting (Gloss) 3 XLW770V2 10A 2 gang standard size switch for vertical mounting 3 XLPW770V2 10A 2 gang standard size switch for vertical mounting (Gloss) Pack Cat No. Horizontal standard size switchesPlate size 117 x 73mm. Mounting centres: 84mm 10 XL770/1H 10A 1 gang standard size switch 10 XLP770/1H 10A 1 gang standard size switch (Gloss) 10 XL770/2H 10A 2 gang standard size switch 10 XLP770/2H 10A 2 gang standard size switch (Gloss) 10 XL770/3H 10A 3 gang standard size switch 10 XLP770/3H 10A 3 gang standard size switch (Gloss) 10 XL770/4H 10A 4 gang standard size switch 10 XLP770/4H 10A 4 gang standard size switch (Gloss) 10 XL770/5H 10A 5 gang standard size switch 10 XLP770/5H 10A 5 gang standard size switch (Gloss) 10 XL770/6H 10A 6 gang standard size switch 10 XLP770/6H 10A 6 gang standard size switch (Gloss) Excel Range Section 2 Pack Cat No. Heavy duty rocker switches, range switch isolatorsPlate size 73 x 117mm. Mounting centres: 84mm. Mechanism size 41 x 63 x 13mm deep from back of plate. 10 XL1036 40A, 240V a.c. single pole switch with looping terminals 10 XLP1036 40A, 240V a.c. single pole switch with looping terminals (Gloss) 10 XL1036N 40A, 240V a.c. single pole switch with neon indicator 10 XLP1036N 40A, 240V a.c. single pole switch with neon indicator (Gloss) 10 XL1036P 40A, 415V a.c. double pole switch & terminal for common neutral & earth 10 XLP1036P 40A, 415V a.c. double pole switch & terminal for common neutral & earth (Gloss) 10 XL1036PN 40A, 415V a.c. double pole switch with neon indicator & terminal for common neutral & earth Pack Cat No. Time delay switchesPlate size 73 x 117mm. Mounting centres: 84mm. Available in white only. Cover plates in various co- lours are sold separately - refer to Excel accessories. 3 XLTX770/1 10A time delay switch, 3-wire. Push start/push restart. 1 sec to 239 hrs time adjustment. 3 XLTX770/1A 10A time delay switch, 2-wire. Push start/push restart. 1 sec to 239 hrs time adjustment. 3 XLTX770/1NC 10A time delay switch, 3-wire. Push start/push restart, normally closed contacts. 1 sec to 239 hrs time adjustment. 3 XLTX770/2 10A time delay switch, 3-wire. Push start/push stop. 1 sec to 239 hrs time adjustment. Excel Range Section 2 XL770/2H XLW770V1 XL1036 XLTD770/1 3 XLTX770/2A 10A time delay switch, 2-wire. Push start/push stop. 1 sec to 239 hrs time adjustment. 3 XLTX770/2NC 10A time delay switch, 3-wire. Push start/push stop, normally closed contacts. 1 sec to 239 hrs time adjustment. 3 XLTX770/3 10A repeat cycle timer, 3-wire. Choice of 8 time cycles - 15s, 1 min, 5 min, 15 min, 1 hr, 4 hrs, 12 hrs, 24 hrs. 3 XLTX770/3A 10A repeat cycle timer, 2-wire. Choice of 8 time cycles - 15s, 1 min, 5 min, 15 min, 1 hr, 4 hrs, 12 hrs, 24 hrs. 3 XLTF770/1 Fan time delay, 2-wire: 3, 10 & 20 minutes 3 XLTD770/1 2.5A time delay switch, 2-wire. 1, 3 & 10 minutes, push start/push restart Pack Cat No. Light switch with timerPlate size 117 x 73mm. Mounting centres: 84mm. Available in white only. Auto, manual or random operation. 500W incand. 500VA dichroic/fluoro/fan motors. 7VA min load. 10 XL770T 1 gang light switch with programmable digital 24hr & 7 day timer. Vertical mounting. 10 XLP770T 1 gang light switch with programmable digital 24hr & 7 day timer. Vertical mounting. (Gloss) 10 XL770TH 1 gang light switch with programmable digital 24hr & 7 day timer. Horizontal mounting. 10 XLP770TH 1 gang light switch with programmable digital 24hr & 7 day timer. Horizontal mounting. (Gloss) XL770TH S 2 S 2 Pack Cat No. Switches are supplied with Cat. No. 770M unless otherwise specified. These are interchangeable with any 770, 769, 707 series mechanism. Available to Public Works Depart- ment (PWD) specification with rear-screwed plate mounting of mechanisms. Vertical standard size switchesPlate size 73 x 117mm Mounting centres: 84mm 10 XL770/0 Blank grid with blank cover 10 XLP770/0 Blank grid with blank cover (Gloss) 10 XL770/1 10A 1 gang standard size switch 10 XLP770/1 10A 1 gang standard size switch (Gloss) 10 XL770/2 10A 2 gang standard size switch 10 XLP770/2 10A 2 gang standard size switch (Gloss) 10 XL770/3 10A 3 gang standard size switch 10 XLP770/3 10A 3 gang standard size switch (Gloss) 10 XL770/4 10A 4 gang standard size switch 10 XLP770/4 10A 4 gang standard size switch (Gloss) 10 XL770/5 10A 5 gang standard size switch 10 XLP770/5 10A 5 gang standard size switch (Gloss) 10 XL770/6 10A 6 gang standard size switch 10 XLP770/6 10A 6 gang standard size switch (Gloss) Excel Range switches 230 - 240V a.c. XL770/1 Pack Cat No. Architrave switchesPlate size 35 x 84mm Mounting centres: 70mm 10 XLA770/1 10A 1 gang architrave switch, 35 x 84mm, 70mm mounting centres 10 XLA770/2 10A 2 gang architrave switch, 35 x 84mm, 70mm mounting centres 10 XLA770/3 10A 3 gang architrave switch, 35 x 110mm, 95mm mounting centres 10 XLA770/4 10A 4 gang architrave switch, 35 x 135mm, 120mm mounting centres XLA770/1

18 19 Excel Range Pack Cat No. Keylock Switches Plate size: 73 x 117mm. Mount- ing centres: 84mm. Supplied with Cat. No. 770M mechanism. Also available in 15A and 20A. Specify. Note: For common keys, add CK to Cat. No. no of switch required eg. XL770/1KLICK. 10 XL770/1KLO 10A keylock switch, with key removable in off position 10 XLP770/1KLO 10A keylock switch, with key removable in off position (Gloss) 10 XL770/1KLIO 10A keylock switch, with key removable in on or off position 10 XLP770/1KLIO 10A keylock switch, with key removable in on or off position (Gloss) Section 2 Pack Cat No. VingCard KeyTag switches Plate size: 73 x 117mm. Mounting centres: 84mm. Available in white only. Activation by insertion of a VingCard (not supplied). Base pocket style KeyTags are available with plastic cover plates only. Replacement market only. 10 XL770VCKT1 2 x 20A switches & neon in base pocket 10 XL770VCKT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above Excel Range Section 2 10 XL770VCKT7 2 x 20A switches & neon in top pocket 10 XL770VCKT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 XL770VCKT9 2 x 20A switches & neon in top pocket, 10A independent switch & neon below 10 XL770VCKT10 3 x 20A switches in top pocket Pack Cat No. KeyCard switches Plate size: 73 x 117mm. Mounting centres: 84mm. Available in white only. Activation by insertion of a room access card, (not supplied). Base pocket style KeyTags are avail- able with plastic cover plates only. 10 XL770KM1 2 x 20A switches & neons in base pocket 10 XL770KM2 2 x 20A switches & neons in base pocket, 10A independent switch above 10 XL770KM3 2 x 20A switches & neons in base pocket, 10A independent switch & neon above 10 XL770KM7 2 x 20A switches & neons in top pocket 10 XL770KM8 2 x 20A switches & neons in top pocket, 10A independent switch below 10 XL770KM9 2 x 20A switches & neons in top pocket, 10A independent switch & neon below 10 XL770VCKT11 3 x 20A switches in top pocket, 10A independent switch below 10 XL770VCKT12 3 x 20A switches in top pocket, 10A independent switch & neon below 10 XL770VCKT13 3 x 20A switches & neon in base pocket 10 XL770VCKT14 4 x 20A switches in base pocket 10 XL770VCKT15 3 x 20A switches & neon in top pocket 10 XL770VCKT16 4 x 20A switches in top pocket XL770/1KLIO XL770VCKT1 XL770KM1 10 XL770VCKT4 3 x 20A switches in base pocket 10 XL770VCKT5 3 x 20A switches in base pocket, 10A independent switch above 10 XL770VCKT6 3 x 20A switches in base pocket, 10A independent switch & neon above Pack Cat No. KeyTag switchesPlate size: 73 x 117mm. Mounting centres: 84mm. Supplied with Cat. No. 770/20KTM switches inside pockets, Cat. No. 707M neons (opal in pocket, red outside), Cat. No. 770T3 blank tag. The KeyTag mechanisms supplied are interchangeable with other mechs. Detailed below.Base pocket style KeyTags are available with plastic cover plates only. 10 XL770KT1 2 x 20A switches & neon in base pocket 10 XL770KT2 2 x 20A switches & neon in base pocket, 10A independent switch above 10 XL770KT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above 10 XL770KT4 3 x 20A switches in base pocket 10 XL770KT5 3 x 20A switches in base pocket, 10A independent switch above 10 XL770KT6 3 x 20A switches in base pocket, 10A independent switch & neon above 10 XL770KT7 2 x 20A switches & neon in top pocket 10 XL770KT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 XL770KT9 2 x 20A switches & neon in top pocket, 10A independent switch & neon below 10 XL770KT10 3 x 20A switches in top pocket 10 XL770KT11 3 x 20A switches in top pocket, 10A independent switch below 10 XL770KT12 3 x 20A switches in top pocket, 10A independent switch & neon below 10 XL770KT13 3 x 20A switches & neon in base pocket 10 XL770KT14 4 x 20A switches in base pocket 10 XL770KT15 3 x 20A switches & neon in top pocket 10 XL770KT16 4 x 20A switches in top pocketKeyTags 10 770T3 Keytag, 100mm long, with removable insert XL770KT1 S 2 S 2 Pack Cat No. Automatic light switchPlate size 73 x 117mm. Mounting centres: 84mm. Available in white only. Cover plates available in Matt Silver (PLMS), Polished Silver (PLPS), Polished Brass (PLPB) and White (PLWE) - sold separately 10 XL632 Automatic light switch for internal use. Rated 600VA, min load 7VA. Vertical mounting. Light switches on automatically when someone enters the room and switches off after a preset time if no further movement detected. Manual override. 10 XLP632 Automatic light switch for internal use. Rated 600VA, min load 7VA. Vertical mounting. Light switches on automatically when someone enters the room and switches off after a preset time if no further movement detected. Manual override. (Gloss) XL632 Pack Cat No. Remote controlled switch Plate size: 73 x 117mm. Mounting centres: 84mm. Available in white only. Cover plates in various colours are sold seperately - refer to Excel accessories. 3 XL770/2RX Remote/touch switch rated 600VA, min load 7VA. Remote control (included) range up to 9m. XL770/2RX

20 21 Pack Cat No. Single powerpoints with extra switchPlate size: 117 x 73mm. Mounting centres: 84mm 5 XL787X 10A single powerpoint with extra switch 5 XLP787X 10A single powerpoint with extra switch (Gloss) 5 XL787XS 10A single powerpoint with extra switch & safety shutter 5 XLP787XS 10A single powerpoint with extra switch & safety shutter (Gloss) 5 XL787XNS 10A single powerpoint with extra switch, neon & safety shutter (Gloss plate available) 5 XL787XR 10A single powerpoint with extra switch & round earth 10 XL787XRS 10A single powerpoint with extra switch, round earth & safety shutter 10 XL787X15WE 15A single powerpoint with extra switch Pack Cat No. No-volt powerpointsPlate size: 117 x 73mm. Mounting centres: 84mm When power to the circuit is interrupted (no volt) the relay drops out. After power is restored, the relay must be manually reset. Ideal for load shedding of non essential loads. Allows greater restart without in-rush loads. 5 XL787XNV 10A single powerpoint with extra switch, no volt 5 XLP787XNV 10A single powerpoint with extra switch, no volt (Gloss) 5 XL787XNV15 15A single powerpoint with extra switch Section 2 Excel Range Pack Cat No. Single powerpoints with 2 extra switchesPlate size: 117 x 73mm. Mounting centres: 84mm 5 XL787/2X 10A single powerpoint with 2 extra switches 5 XLP787/2X 10A single powerpoint with 2 extra switches (Gloss) 10 XL787/2XS 10A single powerpoint with 2 extra switches & safety shutter 1 XLP787/2XS 10A single powerpoint with 2 extra switches & safety shutter (Gloss) Pack Cat No Single powerpoints with blanking insertsPlate size: 117 x 73mm. Mounting centres: 84mm 5 XL787ID 10A single powerpoint with white ID insert 5 XL787IDCL 10A single powerpoint with clear ID insert 5 XLP787IDCL 10A single powerpoint with clear ID insert (Gloss) Section 2 Excel Range XL787X XL787XNV XL787/2X XL787ID Single powerpoints, double pole Plate size: 117 x 73mm. Mounting centres: 84mm 10 XL787P 10A single powerpoint, double pole 10 XL787PN 10A single powerpoint, double pole with neon 10 XL787PR 10A single powerpoint, double pole with round earth Pack Cat No Vertical single powerpoints with 2 extra switchesPlate size: 73 x 117mm. Mounting centres: 84mm 10 XLV787/2X 10A vertical single powerpoint with 2 extra switches 10 XLPV787/2X 10A vertical single powerpoint with 2 extra switches (Gloss) 10 XLV787/2XS 10A vertical single powerpoint with 2 extra switches & safety shutters 10 XLPV787/2XS 10A vertical single powerpoint with 2 extra switches & safety shutters (Gloss) XLV787/2X Pack Cat No Vertical single powerpoints Plate size: 73 x 117mm. Mounting centres: 84mm 10 XLV787 10A vertical single powerpoint 10 XLPV787 10A vertical single powerpoint (Gloss) 10 XLV787S 10A vertical single powerpoint with safety shutter 10 XLPV787S 10A vertical single powerpoint with safety shutter (Gloss) 5 XLV787/15 15A vertical single powerpoint 5 XLPV787/15 15A vertical single powerpoint (Gloss) 5 XLV787/15S 15A vertical single powerpoint with safety shutter 5 XLPV787/15S 15A vertical single powerpoint with safety shutter (Gloss) 10 XLV787R 10A vertical single powerpoint with round earthVertical single powerpoints with extra switch Plate size: 73 x 117mm. Mounting centres: 84mm 5 XLV787X 10A vertical single powerpoint with extra switch (Gloss plate available) 5 XLV787XS 10A vertical single powerpoint with extra switch & safety shutter 5 XLPV787XS 10A vertical single powerpoint with extra switch & safety shutter (Gloss) XLV787 S 2 S 2 Pack Cat No. Double powerpoints Plate size: 117 x 73mm. Mounting centres: 84mm 10 XL777 10A double powerpoint 10 XLP777 10A double powerpoint (Gloss) 10 XLP777ES 10A double GPO with external rotary switch shutter (Gloss) 10 XL777S 10A double powerpoint with safety shutters 10 XLP777S 10A double powerpoint with safety shutters (Gloss) 10 XL777NS 10A double powerpoint, neons & safety shutters 10 XL777R 10A double powerpoint with round earths NEW XL777ES XL777 Pack Cat No. Single powerpoints Plate size: 117 x 73mm. Mounting centres: 84mm 10 XL787 10A single powerpoint 10 XLP787 10A single powerpoint (Gloss) 10 XL787S 10A single powerpoint with safety shutter 10 XLP787S 10A single powerpoint with safety shutter (Gloss) 10 XL787R 10A single powerpoint with round earth 10 XLP787R 10A single powerpoint with round earth (Gloss) 10 XL787NS 10A single powerpoint with neon & safety shutter 10 XL787RS 10A single powerpoint with round earth & safety shutter 10 XL787RNS 10A single powerpoint with round earth, neon & safety shutter 10 XL787/15 15A single powerpoint 10 XLP787/15 15A single powerpoint (Gloss) 10 XL787/15S 15A single powerpoint with shutters 10 XLP787/15S 15A single powerpoint with shutters (Gloss) 10 XL787/15NS 15A single powerpoint with neon & safety shutter 10 XL787/20 20A single powerpoint, triple spacing between single & powerpoint 10 XLP787/20 20A single powerpoint (Gloss) ,triple spacing between single & powerpoint 10 XL787/20N 20A single powerpoint with neon 10 XL787/25 25A single powerpoint 10 XLP787/25 25A single powerpoint (Gloss) 10 XL787/25N 25A single powerpoint with neon 10 XL787/32 32A single powerpoint 10 XLP787/32 32A single powerpoint (Gloss) Excel Range powerpoints 230 - 240V a.c. Excel Range permanent connection units 5 XLP770/2PC 2 gang plate with cord clamp, 1 x 10A mech (Gloss) 5 XLP770/2PC15 2 gang plate with cord clamp, 1 x 15A mech (Gloss) XL787

22 23 23 Section 2 Excel Range Pack Cat No Double powerpoints with blanking insertPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL777ID 10A double powerpoint with white ID insert 10 XL777IDCL 10A double powerpoint with clear ID insert 10 XLP777IDCL 10A double powerpoint with clear ID insert (Gloss) Pack Cat No Vertical double powerpoints with extra switchPlate size: 73 x 117mm. Mounting centres: 84mm 10 XLV777X 10A double powerpoint with extra switch 10 XLV777XS 10A double powerpoint with extra switch & safety shutters 10 XLPV777XS 10A double powerpoint with extra switch & safety shutters (Gloss) Pack Cat No. Vertical double powerpointsPlate size: 73 x 117mm. Mounting centres: 84mm 10 XLV777 10A double powerpoint 10 XLPV777 10A double powerpoint (Gloss) 10 XLV777S 10A double powerpoint with safety shutters 10 XLPV777S 10A double powerpoint with safety shutters (Gloss) 10 XLP777/15S 15A double powerpoint with safety shutters (Gloss) Section 2 Excel Range XL777ID XLV777 XLV777X Pack Cat No Double slimline powerpointsPlate size: 157 x 50mm. Mounting centres: 137mm 5 XL792B 10A double slimline powerpoint with busbar link 5 XL792B15 15A double slimline powerpoint with busbar link 5 XL792NS 10A double slimline powerpoint, 2 neons & safety shutters with busbar link 5 XL792/15 15A double slimline powerpoint with busbar link 1 XL792/OA Double slimline grid & cover, flat blank 34 x 57 x 2.5mm thick may be punched or drilled (no mechs) XL792B Pack Cat No Four-in-one powerpointPlate size: 190.5 x 72.5mm. Mounting centres: 84mm Available in white only. Suits 137/1 mounting block. 5 XL7774 10A Four-in-one powerpoint 5 XLP7774 10A Four-in-one powerpoint (Gloss) Pack Cat No Multiple powerpoints, 5 gangPlate size: 250 x 72.5mm. Mounting centres: 84mm Available in white only. Includes mounting block and conduit adapter. 10 XL7775 10A 5 gang powerpoint with 5 switched outlets 10 XL7775/1 10A 5 gang powerpoint with 4 switched outlets plus 1 x 10A switch 10 XL7775/2 10A 5 gang powerpoint with 4 switched outlets plus 2 x 10A switch XL7774 XL7775 Pack Cat No Power monitorPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL787B 10A power monitor. Brownout protecting single powerpoint 10 XLP787B 10A power monitor. Brownout protecting single powerpoint (Gloss) 10 XL787B15 15A power monitor. Brownout protecting single powerpoint 10 XLP787B15 15A power monitor. Brownout protecting single powerpoint (Gloss) XL787B S 2 S 2 Pack Cat No Electresafe powerpoints, 10mA trippingPlate size: 117 x 73mm. Mounting centres: 84mm 2 XL777EL10 10mA Electresafe powerpoint, 10A 2 XLP777EL10 10mA Electresafe powerpoint, 10A (Gloss) 2 XL777EL10N 10mA Electresafe powerpoint with ‘supply available’ neon, 10A 2 XL777EL10N3 10mA Electresafe powerpoint with 3 neons, 10A Pack Cat No Electresafe powerpoints, 30mA trippingPlate size: 117 x 73mm. Mounting centres: 84mm 2 XL777EL30 30mA Electresafe powerpoint, 10A 2 XLP777EL30 30mA Electresafe powerpoint, 10A (Gloss) 2 XL777EL30N 30mA Electresafe powerpoint with ‘supply available’ amber neon, 10A 2 XL777EL30N3 30mA Electresafe powerpoint with switched outlet neons, 10A 2 XL777EL30/1015 30mA Electresafe powerpoint with 10A & 15A outlets XL777EL10 XL777EL30 10 XLP777R 10A double powerpoint with round earths (Gloss) 10 XL777RS 10A double powerpoint with round earths & safety shutters 10 XL777/1015 Double powerpoint with 10A & 15A outlets 10 XLP777/1015 Double powerpoint with 10A & 15A outlets (Gloss) 10 XL777/1015S Double powerpoint with 10A & 15A outlets & safety shutters 10 XL777/1015NS Double powerpoint with 10A & 15A outlet, neons & safety shutters 10 XL777CH 10A double powerpoint, chemical resisitant (available in white only) 10 XL777/15 15A double powerpoint 10 XLP777/15 15A double powerpoint (Gloss) 10 XL777/15S 15A double powerpoint with safety shutters 10 XLP777/15S 15A double powerpoint with safety shutters (Gloss) 10 XL777/15NS 15A double powerpoint, neons & safety shuttersDouble powerpoints, double pole Plate size: 117 x 73mm. Mounting centres: 84mm 10 XLP777P15 15A double pole double powerpoint (Gloss) Pack Cat No. Double powerpoints with extra switchPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL777X 10A double powerpoint with extra switch 10 XLP777X 10A double powerpoint with extra switch (Gloss) 10 XL777XS 10A double powerpoint with extra switch & safety shutters 10 XLP777XS 10A double powerpoint with extra switch & safety shutters (Gloss) 10 XL777XNS 10A double powerpoint with extra switch, 2 neons & safety shutters 10 XL777X3NS 10A double powerpoint with extra switch, 3 neons & safety shutters 1 XL777XCH 10A double powerpoint, with extra switch. Chemical resistant 10 XL777X15 15A double powerpoint with extra switch 10 XL777X35O 10A double powerpoint with extra 35A switch "oven" engraved 10 XLP777X35O 10A double powerpoint with extra 35A switch "oven" engraved (Gloss) XL777X

24 25 Excel Range Section 2 Pack Cat No Leading edge light dimmers, EMC compliantPlate size: 73 x 117mm. Mounting centres: 84mm. Refer to technical pages at the back of this Section for more information. 3 XL250L 250VA light dimmer, leading edge 3 XLP250L 250VA light dimmer, leading edge (Gloss) 3 XL400L 400VA light dimmer, leading edge 3 XLP400L 400VA light dimmer, leading edge (Gloss) 3 XL700L 700VA light dimmer, leading edge 3 XLP700L 700VA light dimmer, leading edge (Gloss) 1 XL1000L 1000VA light dimmer, leading edge 1 XLP1000L 1000VA light dimmer, leading edge (Gloss) 1 XL1000ERC 1000VA light dimmer/fan controller, leading edge, for remote mounting. Available in white only. Control plate suits all standard-sized mounting accessories - 84mm centres. Plate size: 117mm H x 73mm W x 13mm D from back of plate. Remote unit 190mm H x 100mm W x 46mm D overall. 1 XLP1000ERC 1000VA light dimmer/fan controller, leading edge, for remote mounting. Available in white only. Control plate suits all standard-sized mounting accessories - 84mm centres. Plate size: 117mm H x 73mm W x 13mm D from back of plate. Remote unit 190mm H x 100mm W x 46mm D overall. (Gloss) 3 XL2000ERC 2000VA light dimmer/fan controller, leading edge, for remote mounting. Available in white only. Control plate suits all standard-sized mounting accessories - 84mm centres. Plate size: 117mm H x 73mm W x 13mm D from back of plate. Remote unit 190mm H x 100mm W x 46mm D overall. 3 XLP2000ERC 2000VA light dimmer/fan controller, leading edge, for remote mounting. Available in white only. Control plate suits all standard-sized mounting accessories - 84mm centres. Plate size: 117mm H x 73mm W x 13mm D from back of plate. Remote unit 190mm H x 100mm W x 46mm D overall. (Gloss) Dimmers and fan controllers 230-240V a.c. Section 2 Excel Range XL400L Pack Cat No Trailing edge light dimmers, EMC compliantPlate size: 73 x 117mm. Mounting centres: 84mm. Refer to technical pages at the back of this Section for more information. 3 XL250T 250VA light dimmer, trailing edge 3 XLP250T 250VA light dimmer, trailing edge (Gloss) 3 XL400T 400VA light dimmer, trailing edge 3 XLP400T 400VA light dimmer, trailing edge (Gloss) 3 XL700T 700VA light dimmer, trailing edge 3 XLP700T 700VA light dimmer, trailing edge (Gloss) 3 XL1000T 1000VA light dimmer, trailing edge 3 XLP1000T 1000VA light dimmer, trailing edge (Gloss) Pack Cat No Universal push button light dimmers, EMC compliantPlate size: 73 x 117mm. Mounting centres: 84mm Refer to technical pages at the back of this Section for more information. Available in high gloss white, black, cream and matt silver (with white or black rim) 3 XLP450P 450W push button light dimmer, universal (Gloss) XL400T XLP450P S 2 S 2 Pack Cat No Fan controllersPlate size: 73 x 117mm. Mounting centres: 84mm 230 - 240V a.c. Must be matched to fan type. Refer to technical pages at the back of this section for more information. 3 XL300F 300VA fan controller 3 XLP300F 300VA fan controller (Gloss) 3 XL650ET 650VA timed fan speed controller with auto switch-off. Min load 60VA. Timer switches off load after approximately 2 hours, manually resettable. Also suited for controlling resistive loads. Suitable for ceiling sweep & ceiling exhaust fans. 3 XL475 100VA de-hummer 3-speed fan controller with 3.3 µF + 4.7 µF capacitors. 3 XLP475 100VA de-hummer 3-speed fan controller with 3.3 µF + 4.7 µF capacitors. (Gloss) 3 XL475/1 100VA de-hummer 3-speed fan controller with 1.5 µF + 2.5 µF capacitors. Not suitable for multigang plate installations. 3 XLP475/1 100VA de-hummer 3-speed fan controller with 1.5 µF + 2.5 µF capacitors. Not suitable for multigang plate installations. (Gloss) 3 XL475/2 100VA de-hummer 3-speed fan controller with 1.5 µF + 2.5 µF capacitors. Suitable for multigang plate installations. 3 XLP475/2 100VA de-hummer 3-speed fan controller with 1.5 µF + 2.5 µF capacitors. Suitable for multigang plate installations. (Gloss) XL300F 2 XLP777EL30/1015 30mA Electresafe powerpoint with 10A & 15A outlets (Gloss) 2 XL777EL30G 30mA Electresafe powerpoint for generators, 10A 2 XLP777EL30G 30mA Electresafe powerpoint for generators, 10A (Gloss) 1 XL777EL30G1015 30mA Electresafe powerpoint for generators, 10A & 15A outlets Pack Cat No Excel shaver supply outletsPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL798/O Excel shaver outlet XL798/0 Pack Cat No Excel shaver supply outlets with double powerpointPlate size: 114 x 177mm. Mounting centres: 84mm Available in white only 1 XL798/777 Excel shaver outlet & 10A double powerpoint 1 XL798/777EL30 Excel shaver outlet & 10A double powerpoint with 30mA safety switch 1 XL798/777X Excel shaver outlet & 10A double powerpoint and extra switch XL798/777EL30 Pack Cat No. Electresafe wall mounted safety switches Plate size: 117 x 73mm. Mounting centres: 84mm 10 XL770EL10N1 Electresafe 10mA wall mounted safety switch with 1 neon 10 XL770EL10N2 Electresafe 10mA wall mounted safety switch with 2 neons 10 XL770EL10 Electresafe 10mA wall mounted safety switch 10 XL770EL30 Electresafe 30mA wall mounted safety switch XL770EL30WE

26 27 Excel Range Section 2 Excel Range Section 2 Pack Cat No Available in various colour and metallic finishes - please refer to colour options page at the back of this Section for details of codes and surcharges. Please note that not all plates are available in every colour and/or metallic finish. Not all plates have been listed, however, plates are available for all products. Standard size switch cover plate onlyPlate size: 73 x 117mm.Mounting centres: 84mm Plates available for all Excel prducts (not all listed). Can be used for horizontal and vertical switches. 10 XL770/0PL Blank cover plate only 10 XLP770/0PL Blank cover plate only (Gloss) 10 XL770/1PL Cover plate only for 1 gang switch 10 XLP770/1PL Cover plate only for 1 gang switch (Gloss) 10 XL770/2PL Cover plate only for 2 gang switch 10 XLP770/2PL Cover plate only for 2 gang switch (Gloss) 10 XL770/3PL Cover plate only for 3 gang switch 10 XLP770/3PL Cover plate only for 3 gang switch (Gloss) 10 XL770/4PL Cover plate only for 4 gang switch Cover plates and grids with cover plates XL770/1PL S 2 S 2 Pack Cat No Standard size grids and cover plate only (no mechs)Plate size: 73 x 117mm. Mounting centres: 84mm. Colour surcharges might apply - please see Colour op-tions and surcharges page. Please note that not all plates are available in every colour. Not all plates have been listed, however, plates are available for all Excel products. 10 XL770/1GPL 1 gang standard size grid & cover plate only 10 XLP770/1GPL 1 gang standard size grid & cover plate only (Gloss) 10 XL770/2GPL 2 gang standard size grid & cover plate only 10 XLP770/2GPL 2 gang standard size grid & cover plate only (Gloss) 10 XL770/3GPL 3 gang standard size grid & cover plate only 10 XLP770/3GPL 3 gang standard size grid & cover plate only (Gloss) 10 XL770/4GPL 4 gang standard size grid & cover plate only 10 XLP770/4GPL 4 gang standard size grid & cover plate only (Gloss) 10 XL770/5GPL 5 gang standard size grid & cover plate only 10 XLP770/5GPL 5 gang standard size grid & cover plate only (Gloss) 10 XL770/6GPL 6 gang standard size grid & cover plate only 10 XLP770/6GPL 6 gang standard size grid & cover plate only (Gloss) 10 XLP770/4PL Cover plate only for 4 gang switch (Gloss) 10 XL770/5PL Cover plate only for 5 gang switch 10 XLP770/5PL Cover plate only for 5 gang switch (Gloss) 10 XL770/6PL Cover plate only for 6 gang switch 10 XLP770/6PL Cover plate only for 6 gang switch (Gloss) Architrave switch cover plate only (matt only) Plate size: 35 x 84mm. Mounting centres: 70mm 20 XLA770/1PL Cover plate only for 1 gang switch 20 XLA770/2PL Cover plate only for 2 gang switch 20 XLA770/3PL Cover plate only for 3 gang switch 20 XLA770/4PL Cover plate only for 4 gang switch Pack Cat No Slimline grids and cover plate only (no mechs) Plate size: 157 x 50mm. Mounting centres: 137mm. 10 XL792/OA Double slimline grid & cover, flat blank 34 x 57 x 2.5mm thick. May be punched or drilled. 10 XL792/O2A Double slimline 2 gang grid & cover,flat blank 34 x 57 x 2.5mm thick. 10 XL792/4 Four gang grid & cover. Accepts 4 x RJ sockets with adaptor, or other mecs. XL770/3GPL XL792/4 Architrave switch grids and cover plate only (no mechs) 20 XLA770/1GPL 1 gang architrave grid & cover plate only 20 XLA770/2GPL 2 gang architrave grid & cover plate only 10 XLA770/3GPL 3 gang architrave grid & cover plate only 10 XLA770/4GPL 4 gang architrave grid & cover plate onlyHeavy duty rocker cover plate only 20 XL1036PL Cover plate only for heavy duty rocker switch 20 XLP1036PL Cover plate only for heavy duty rocker switch (Gloss) Pack Cat No Universal grid cover platePlate size: 117 x 73mm. Mounting centres: 84mm A multi purpose plate, used by electronics manufacturers as a base for a variety of switching applications. 10 XL770U Excel universal plate 10 XLP770U Excel universal plate (Gloss) XL770U Pack Cat No Single powerpoint cover plate onlyPlate size: 117 x 73mm. Mounting centres: 84mm. 10 XL787PL Cover plate only for single powerpoint 10 XLP787PL Cover plate only for single powerpoint (Gloss) 10 XL787XPL Cover plate only for single powerpoint with extra switch 10 XLP787XPL Cover plate only for single powerpoint with extra switch (Gloss) 20 XL787NSPL Cover plate only for single powerpoint with neon 10 XL7872XPL Cover plate only for single powerpoint with 2 extra switches 10 XL787/20PL Cover plate only for single 20A powerpoint 10 XLP787/20PL Cover plate only for single 20A powerpoint (Gloss) XL787PL Pack Cat No Double powerpoint cover plate only Plate size: 117 x 73mm. Mounting centres: 84mm. 10 XL777PL Cover plate for double powerpoint 10 XLP777PL Cover plate for double powerpoint (Gloss) 10 XL777XPL Cover plate for double powerpoint with extra switch 10 XLP777XPL Cover plate for double powerpoint with extra switch (Gloss) 20 XL777NSPL Cover plate for double powerpoint with neon XL777PL

28 29 Excel Range Section 2 Pack Cat No Double size cover plate only (matt only) Plate size: 144 x 116.5mm or 116.5 x 114mm, 230.5 x 72.5mm or 72.5 x 230.5mm. Mounting centres: 84mm. Enables 2 x Excel units to be mounted side by side or one above each other. Choose from 4 different layouts. Specify layout and cover function when ordering. Please contact us for an order form. 10 XLDC Double size cover plate onlyTriple size cover plate only (matt only)Plate size: 117 x 213mm or 213 x 117mm. Mounting centres: 84mm. Enables 3 x excel standard size units to be mounted side by side or above each other. Choose from 2 different layouts. Specify layout and cover functions when ordering. Please contact us for an order form. 1 XLTC Triple size cover plate onlyFour-in-one powerpoint cover plate onlyPlate size: 190.5 x 72.5mm. Mounting centres: 84mm. 5 XL7774PL Cover plate only for Four-in-one powerpoint, White only XLDC S 2 Plain caps Pack Cat No. Plain blank flush caps 100 FLUSHCAPS Plain blank flush caps only. (Packet of 100). Pack Cat No. Identification products 10 800 Blanking piece, suits all 770 series switch plates 10 800LH Blanking piece with hole for potentiometer mounting, suits all 770 series switch plates. 10 800ID Blanking piece engraved - Not Safety Switch Protected. Suits all 770 series switch plates. 50 800/2 Blanking insert with opaque cap. Suits all 770 series switch plates. 50 800/2CL Blanking insert with clear cap. Suits all 770 series switch plates. 50 800/2CL1 Die cut labels for circuit identifica- tion to suit Cat. No. 800/2CL 1 800/2CL3 Blank die-cut paper for Cat. No. 800/2CL2 circuit ID kit. 10 sheets per pack. Specify: WE (white); BU (blue); RED (red); or YE (yellow)Paint blisters 1 XL1FB Paint blister Pack Cat No Telephone outlet cover plate onlyPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL770TOPL Telephone outlet plate 10 XLP770TOPL Telephone outlet plate (Gloss) Pack Cat No Computer grids and plates onlyPlate size: 117 x 73mm. Mounting centres: 84mm. 10 XL770/1D1 Computer outlet plate for 1 x 9 pin (CP9) D connector socket 10 XL770/2D1 Computer outlet plate for 2 x 9 pin (CP9) D connector sockets 10 XL770/1D2 Computer outlet plate for 1 x 15 pin (CP9) D connector socket XL770TOPL XL770/1D3 800/2CL Colour Options for the Excel Range Section 2 How to order Excel Range is available in various colours and metallic finishes. When ordering add ordering code/s to the end of Cat. No. e.g. XLP777BU, XL777BLMS Please note: Not all colours and/or metallic finishes are available on all products. Please check when ordering. Minimum quantities may apply. XL Matt Finish Colours Available White WE Cream CR Beige BE Mist Grey MG Brown BR Black BL Red RED Blue BU Green GR Regular Cover Plate XLP Gloss Finish Colours Available White WE Cream CR Beige BE Mist Grey MG Brown BR Black BL High Gloss Cover Plate Solid Metal Metallic Finishes Available Polished Silver PS Matt Silver MS Stainless Steel SS Stone Metal SM Brushed Brass BB Polished Brass PB

30 31 Max number of transformers per dimmer Nelson MTECOUGAR60 8 14 20 Nelson MTETRADE65 Nelson MTECONT70 Nelson MTEFOX60 Nelson MTEICE60 Nelson MTEKITTY60 Nelson MTEMICRO60 Nelson MTEPBS60 Assumes 1 x 50W lamp per transformer Nelson MTECONT105 4 7 10 Nelson MTEFLAT105 Nelson MTEFOX105 Nelson MTEICE105 Nelson MTEKITTY105 Assumes 2 x 50W lamp per transformer This table is an example only. Other models of electronic transformers may be used. El ectr onic tr ansf ormer model XL400T XL700T XL1000T Fan controllers XL300F 300VA 40VA XL475 100VA - XL475/1 100VA - XL475/2 100VA - Timed fan controller XL650ET 650VA 60VA • Cat. No. XL475, XL475/1 and XL475/2 are capacitive type controllers that will eliminate motor humming. These can control only a single fan. All other fan controllers are capable of controlling multiple fans up to their maximum load. • The capacitor values in Cat. No. XL475/1 and XL475/2 are the same, and have been selected to suit most fan models. The only difference between the two is that Cat. No. XL475/2 can be installed on a multi-gang plate with other switches or dimmers. • If Cat. No. XL475/1 or XL475/2 cause the fan to operate too slowly, Cat. No. XL475 should be used instead. • Cat. No. XL650ET has an in-built two hour timer and will automatically switch off after this time. Cat. No. Maximum l oad Minimum l oad How many electronic transformers can I use? Selecting the correct fan controller 0 20 25˚C 75˚C 50˚C 40 60 80 100 Installation air temperature % Rating Applies to all dimmers and fan controllers Section 2 Excel Range S 2 Cat. No. Type Maximum l oad Minimum l oad Inc andesc ent 240V Linear hal ogen GU10 240V hal ogen do wnlights Lo w v olt age hal ogen with wir ew ood (Ir on Cor e) tr ansf ormer s Lo w v olt age hal ogen with el ectr onic tr ansf ormer s Ceiling f an Dimmers XL250L Leading edge 250VA 10VA       XL250T Trailing edge 250VA 10VA       XL400L Leading edge 400VA 10VA       XL400T Trailing edge 400VA 10VA       XLP450P Universal 450VA 10VA       XL700L Leading edge 700VA 10VA       XL700T Trailing edge 700VA 10VA       XL1000L Leading edge 1000VA 10VA       XL1000T Trailing edge 1000VA 10VA       Remote-mounted dimmers XL1000ERC Leading edge 1000VA 75VA     See note  XL2000ERC Leading edge 2000VA 75VA     See note  Note Some electronic transformers state that they are compatible with Leading Edge Dimmers. However, significant de-rating of the dimmer is usually required. Therefore, HPM recommends the use of Trailing Edge Dimmers (HPM Cat. No. XL400T, XL700T or XL1000T) for these applications. If it is necessary to use a Leading Edge Dimmer, then please refer to the Dimming Electronic Transformers information sheet enclosed with the product. When using wirewound transformers, ensure the transformers are marked “suitable for dimming” and de-rate the dimmer by 20%. Dimmers specifications table Section 2 Excel Range S 2

32 33 Wiring diagrams One-way switching with dimmer Two-way switching with dimmer XL1000ERC and XL2000ERC Installation dimensions XL475, XL475/1 XL475/2 XL300F XL250L, XL250T, XL400L, XL400T Section 2 Excel Range S 2 Cat. No. Maximum l oad Neutr al r equir ed Mode of oper ation Normall y open or Normall y cl osed Remot e c ontr ol Timing r ange Excel time delay switches XLTD770/1 600VA No Re-trigger Normally open Yes 1, 3 and 10 min XLTX770/1 2400VA Yes Re-trigger Normally open Yes 1 sec - 239 hrs XLTX770/2 2400VA Yes Toggle Normally open Yes 1 sec - 239 hrs XLTX770/3 2400VA Yes Repeat cycle Normally open Yes 15 sec - 24 hrs cycle XLTX770/1A 2400VA No Re-trigger Normally open Yes 1 sec - 239 hrs XLTX770/2A 2400VA No Toggle Normally open Yes 1 sec - 239 hrs XLTX770/3A 2400VA No Repeat cycle Normally open Yes 15 sec -24 hrs cycle XLTX770/1NC 2400VA Yes Re-trigger Normally closed Yes 1 sec - 239 hrs XLTX770/2NC 2400VA Yes Toggle Normally closed Yes 1 sec - 239 hrs XLTF770/1 2400VA (lamp) No Fan delay Normally open No 3, 10 and 20 min 600VA (fan) • Re-trigger means that a button press during the timing cycle will re-start the timing cycle. • Toggle means that a button press during the timing cycle will stop the timing cycle. • Fan delay means that the fan remains on for a certain period after the light is turned off. A light must be connected for the unit to operate. Time delay switches table Information Wiring diagrams Example application with remote switches. A Cat No. PE170R photoelectric switch is programmed to turn external lights on at dusk and off at a pre-programmed time to save energy. Outside of these hours, lights can be turned on for a timed period by the TX770 or remote push buttons. Some HPM time delay switches may have compatibility issues with some types of compact fluorescent lamp or electronic ballast when the load is small. This may cause the lamp to flicker slightly in the off state. It can be overcome by increasing the size of the load, or by connecting a resistive load in parallel. for more information, please contact HPM Technical Support on 1300 369 777 A fan runs for a certain period after light switch is turned off. Section 2 Excel Range S 2

34 35 Section 2 Excel Range XL787 XL787/20 XL787/25 XL787/32 Cat No. XL787 Plate size: 117 x 73mm. Mounting centres: 84mm XL787/20 Plate size: 117 x 73mm. Mounting centres: 84mm XL787/25 Plate size: 117 x 73mm. Mounting centres: 84mm XL787/32 Plate size: 117 x 73mm. Mounting centres: 84mm N A E N A E N A E Single powerpoints with extra switch XL787X XL787X Plate size: 117 x 73mm. Mounting centres: 84mm N A E XL787/2X XL787/2X Plate size: 117 x 73mm. Mounting centres: 84mm E N A Single powerpoints with 2 extra switches XLV787 XLV787 Plate size: 73 x 117mm. Mounting centres: 84mm N A E Vertical single powerpoint Single powerpoints S 2 Section 2 Excel Range XL450P XL650ET XL1000L, XL1000T XL1000ERC, XL2000ERC XL700L, XL700T S 2

36 37 Excel Range Vertical double powerpoints with extra switch XLV777X Cat No. XLV777X Plate size: 73 x 117mm. Mounting centres: 84mm N A E Electresafe powerpoints, 10mA tripping XL777EL10 LOAD LOAD LINE LINE N N A E A XL777EL10 Plate size: 117 x 73mm. Mounting centres: 84mm Electresafe powerpoints, 30mA tripping XL777EL30 LOAD LOAD LINE LINE N N A E A XL777EL30 Plate size: 117 x 73mm. Mounting centres: 84mm Power brown out monitor XL787B N POWER MONIT OR Cat XL787B SPECIFICA TION Maximum Load: 10 ampsSupply voltage: 240V ac 50HZCut off voltage: 200V acPower restoration: Appro x 5 mins HPM INDUSTRIES PTY LTD MADE IN AU STRALIA N12297 POWER MONIT OR E A XL787B Plate size: 117 x 73mm. Mounting centres: 84mm Surge protecting double powerpoints XL777PA N E A XL777PA Plate size: 117 x 73mm. Mounting centres: 84mm Section 2 S 2 Section 2 Excel Range XLV787/2X XLV787X Cat No. XLV787X Plate size: 70 x 114mm. Mounting centres: 84mm N A E N A E XL777 N A E Vertical single powerpoints with 2 extra switches Double powerpoints XLV787/2X Plate size: 73 x 117mm. Mounting centres: 84mm XL777 Plate size: 117 x 73mm. Mounting centres: 84mm XL777X N A E Double powerpoints with extra switch XL777X Plate size: 117 x 73mm. Mounting centres: 84mm XLV777 N A E Vertical double powerpoints XLV777 Plate size: 73 x 117mm. Mounting centres: 84mm Vertical single powerpoints with extra switch S 2

38 39 Linea Range Linea Range switches 230 - 240V a.c. Pack Cat No. Switches are supplied with Cat. No. 770M unless otherwise specified. These are interchangeable with any 770, 769, 707 series mechanism. Architrave switches, 10APlate size: 38mm wide. Low 4mm profile. Available in high gloss WE (White), CR (Cream) and BL (Black) 10 LNA770/1 10A 1 gang architrave switch. 80mm long. Mounting centres: 60mm 10 LNA770/2 10A 2 gang architrave switch. 100mm long. Mounting centres: 79mm Pack Cat No. Horizontal switches, 10APlate size: 127 x 82mm. Mounting centres: 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN770/1H 10A 1 gang switch 10 LN770/2H 10A 2 gang switch 10 LN770/3H 10A 3 gang switch 10 LN770/4H 10A 4 gang switch 10 LN770/5H 10A 5 gang switch 10 LN770/6H 10A 6 gang switch Pack Cat No. Vertical switches, 10APlate size: 82 x 127mm. Mounting centres: 85mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN770/1 10A 1 gang switch 10 LN770/2 10A 2 gang switch 10 LN770/3 10A 3 gang switch 10 LN770/4 10A 4 gang switch 10 LN770/5 10A 5 gang switch 10 LN770/6 10A 6 gang switch Pack Cat No. Single powerpointsPlate size: 127 x 82mm. Mounting centres: 84mm, Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN787 10A single powerpoint 10 LN787/15 15A single powerpoint 10 LN787X 10A single powerpoint with extra switch Linea Range powerpoints 230 -240V a.c. Section 3 Pack Cat No. Double powerpointsPlate size: 127 x 82mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black). 10 LN777 10A double powerpoint 10 LN777X 10A double powerpoint with extra switch 10 LN777ES 10A double powerpoint with external rotary safety shutters Pack Cat No. Autoswitch powerpoints 10APlate size: 127 x 82mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN777A Double autoswitch powerpoint with safety shutters & ‘power on’ indicator 10 LN777AES Double autoswitch powerpoint with external rotary safety shutters NEW NEW LN770/1 LN787 LN770/1H LNA770/1 LN777ES LN777 LN777AES LN777A Linea Range Section 3 S 3

40 41 Linea Range Pack Cat No. Cover plates only for switchesPlate size: 82 x 127mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream), BL (black). Surcharge applies for MS (matt silver), SM (stone metal) and AS (asphalt) 40 LN770/OPL Blank cover plate only 40 LN770/1PL Cover plate only for 1 gang switch 40 LN770/2PL Cover plate only for 2 gang switch 40 LN770/3PL Cover plate only for 3 gang switch 40 LN770/4PL Cover plate only for 4 gang switch 40 LN770/5PL Cover plate only for 5 gang switch 40 LN770/6PL Cover plate only for 6 gang switch Pack Cat No. Cover plates only for powerpointsPlate size: 127 x 82mm. Low 4mm profile. Available in high gloss WE (white), CR (cream), BL (black). Surcharge applies for MS (matt silver), SM (stone metal) and AS (asphalt) 40 LN787PL Cover plate only for single powerpoint 40 LN787XPL Cover plate only for single powerpoint with extra switch 40 LN777PL Cover plate only for double powerpoint 40 LN777APL Cover plate for auto switch double powerpoint 40 LN777XPL Cover plate for double powerpoint with extra switch 40 LN777ESPL Cover plate for extra-safe double powerpoint 40 LN777AESPL Cover plate for auto switched, extra-safe double powerpoint Pack Cat No. Grids and cover plates onlyPlate size: 82 x 127mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 40 LN770/OGPL Blank grid & cover plate only 40 LN770/1GPL Grid & cover plate only for 1 gang switch 40 LN770/2GPL Grid & cover plate only for 2 gang switch 40 LN770/3GPL Grid & cover plate only for 3 gang switch 40 LN770/4GPL Grid & cover plate only for 4 gang switch 40 LN770/5GPL Grid & cover plate only for 5 gang switch 40 LN770/6GPL Grid & cover plate only for 6 gang switch Linea Range grids & plates Section 3 Linea Range mounting accessories Pack Cat No. Stud bracket 10 LN143 Linea recessed stud bracket Pack Cat No. Mounting clip 10 LN711 Linea Mounting clip to suit approx 5mm walls LN770/4GPL LN770/5PL LN777PL LN143 LN711 S 3 Linea Range Pack Cat No. Leading edge light dimmers, EMC compliant, 230 - 240V a.c.Plate size: 127 x 82mm. Mounting centres: 84mm. Low 4mm profile. Available in high gloss (WE) white, CR (Cream) and BL (black) 9 LN400L 400VA light dimmer, leading edge for vertical mounting 9 LN400LH 400VA light dimmer, leading edge for horizontal mounting Dimmers and fan controllers Pack Cat No. Trailing edge light dimmers, EMC compliant, 230 - 240V a.c.Plate size: 82 x 127mm. Mounting centres: 84mm. Low 4mm profile. Available in high gloss (WE) white, CR (Cream) and BL (black) 9 LN400T 400VA light dimmer, trailing edge for vertical mounting 9 LN400TH 400VA light dimmer, trailing edge for horizontal mounting Pack Cat No. Fan controllersPlate size: 82 x 127mm. Mounting centres: 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 9 LN3FC 100VA 3 speed fan controller for vertical mounting 9 LN3FCH 100VA 3 speed fan controller for horizontal mounting Pack Cat No. TV outletsLow 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN770/1CX TV coax outlet 10 LN770/1FCX TV outlet PAL socket with F type connection 1 LN770/2CX/FCX TV coax outlet & TV outlet Pal socket with F type connection Outlets Pack Cat No. Telephone and data outletsPlate size: 127 x 82mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss WE (white), CR (cream) and BL (black) 10 LN770/1RJ1 Single RJ12 outlet (phone) 10 LN770/1RJ2E Single RJ45 outlet (phone/data, Cat 5E) 10 LN770/2RJ1 Double RJ12 outlet (phone) 1 LN770/2RJ2E Double RJ45 outlet (phone/data, Cat 5E) Section 3 Pack Cat No. Universal push button light dim- mers, EMC compliant, 230 - 240V a.c.Plate size: 82 x 127mm. Mounting centres: 84mm. Low 4mm profile. Available in high gloss (WE) white, CR (Cream) and BL (black) 9 LN450P 450W push button light dimmer, universal for vertical mounting LN400LH LN400T LN450P LN3FC LN770/2CX/FCX LN770/1RJ1 S 3

42 43 Col our Linea 1-gang swit ch plat e Linea 2-gang swit ch plat e Linea 3-gang swit ch plat e Linea 4-gang swit ch plat e Linea 5-gang swit ch plat e Linea 6-gang swit ch plat e Linea 10A 2-gang po w erpoint plat e Linea 10A 2-gang e xtr a saf ety po w erpoint plat e Linea 10A 2-gang e xtr a- swit ch po w erpoint plat e Linea 10A 1-gang po w erpoint plat e Linea 10A 1-gang ar chitr av e swit ch plat e Linea 10A 2-gang ar chitr av e swit ch plat e Soft touch colours VA LN770/1PLVA LN770/2PLVA LN770/3PLVA LN770/4PLVA LN770/5PLVA LN770/6PLVA LN777PLVA LN777ESPLVA LN777XPLVA LN787PLVA LNA770/1PLVA LNA770/2PLVA YE LN770/1PLYE LN770/2PLYE LN770/3PLYE LN770/4PLYE LN770/5PLYE LN770/6PLYE LN777PLVA LN777PLYE LN777ESPLYE LN787PLYE LNA770/1PLYE LNA770/2PLYE LG LN770/1PLLG LN770/2PLLG LN770/3PLLG LN770/4PLLG LN770/5PLLG LN770/6PLLG LN777PLLG LN777ESPLLG LN777XPLLG LN787PLLG LNA770/1PLLG LNA770/2PLLG OG LN770/1PLOG LN770/2PLOG LN770/3PLOG LN770/4PLOG LN770/5PLOG LN770/6PLOG LN777PLOG LN777ESPLOG LN777XPLOG LN787PLOG LNA770/1PLOG LNA770/2PLOG OL LN770/1PLOL LN770/2PLOL LN770/3PLOL LN770/4PLOL LN770/5PLOL LN770/6PLOL LN777PLOL LN777ESPLOL LN777XPLOL LN787PLOL LNA770/1PLOL LNA770/2PLOL PI LN770/1PLPI LN770/2PLPI LN770/3PLPI LN770/4PLPI LN770/5PLPI LN770/6PLPI LN777PLPI LN777ESPLPI LN777XPLPI LN787PLPI LNA770/1PLPI LNA770/2PLPI KH LN770/1PLKH LN770/2PLKH LN770/3PLKH LN770/4PLKH LN770/5PLKH LN770/6PLKH LN777PLKH LN777ESPLKH LN777XPLKH LN787PLKH LNA770/1PLKH LNA770/2PLKH RE LN770/1PLRE LN770/2PLRE LN770/3PLRE LN770/4PLRE LN770/5PLRE LN770/6PLRE LN777PLRE LN777ESPLRE LN777XPLRE LN787PLRE LNA770/1PLRE LNA770/2PLRE DG LN770/1PLDG LN770/2PLDG LN770/3PLDG LN770/4PLDG LN770/5PLDG LN770/6PLDG LN777PLDG LN777ESPLDG LN777XPLDG LN787PLDG LNA770/1PLDG LNA770/2PLDG SB LN770/1PLSB LN770/2PLSB LN770/3PLSB LN770/4PLSB LN770/5PLSB LN770/6PLSB LN777PLSB LN777ESPLSB LN777XPLSB LN787PLSB LNA770/1PLSB LNA770/2PLSB MI LN770/1PLMI LN770/2PLMI LN770/3PLMI LN770/4PLMI LN770/5PLMI LN770/6PLMI LN777PLMI LN777ESPLMI LN777XPLMI LN787PLMI LNA770/1PLMI LNA770/2PLMI AU LN770/1PLAU LN770/2PLAU LN770/3PLAU LN770/4PLAU LN770/5PLAU LN770/6PLAU LN777PLAU LN777ESPLAU LN777XPLAU LN787PLAU LNA770/1PLAU LNA770/2PLAU Metalic finishes AS LN770/1PLAS LN770/2PLAS LN770/3PLAS LN770/4PLAS LN770/5PLAS LN770/6PLAS LN777PLAS LN777ESPLAS LN777XPLAS LN787PLAS LNA770/1PLAS LNA770/2PLAS MS LN770/1PLMS LN770/2PLMS LN770/3PLMS LN770/4PLMS LN770/5PLMS LN770/6PLMS LN777PLMS LN777ESPLMS LN777XPLMS LN787PLMS LNA770/1PLMS LNA770/2PLMS GL LN770/1PLGL LN770/2PLGL LN770/3PLGL LN770/4PLGL LN770/5PLGL LN770/6PLGL LN777PLGL LN777ESPLGL LN777XPLGL LN787PLGL LNA770/1PLGL LNA770/2PLGL Colour options for Linea Range Section 3 Linea Range Pack Cat No. Plaster bracket 10 LN953 Linea recessed plaster bracket Wall boxes Pack Cat No. Wall box 10 LN429 Wall box Pack Cat No. Paint cover 1 LNPC Paint cover Paint covers Pack Cat No. Shroud 10 LN751 Shroud Shrouds Section 3 Colour options for Linea Range Linea is available in various colours and metallic finishes. When ordering, add colour code/s to the end of Cat. No. e.g. LN777AWE, LN777APLMS Gloss finish colours available White WE Cream CR Black BL Metallic finishes available Matt Silver MS Asphalt AS Gun Metal GL Soft-touch colours available Runaway Bride VA Ghost Gum LG 5 O'Clock Olive OL Ninja Khaki KH Wet Elephant DG Midnight Dash MI Sunshine YE Orange Crush OG Bubblegum PI Saucy Red RE Cheeky Boy Blue SB Abracadabra AU Pack Cat No. Mounting clip 10 LN712 Linea Mounting clip to suit 10mm walls LN712 LN953 LN429 LN751 LNPC S 3 S 3

44 45 Cat No. LN777 Plate size: 127 x 82mm. Mounting centres: 84mm Cat No. LN777A Plate size: 127 x 82mm. Mounting centres: 84mm Section 3 Linea Range Double powerpoints Autoswitch powerpoint 10A Cat No. LN770/1 Plate size: 127 x 82mm. Mounting centres: 84mm Cat No. LN770/6 Plate size: 127 x 82mm. Mounting centres: 84mm Section 3 Linea Range Vertical switches, 10A Similar mounting centres apply to LN770/2 and LN770/3 Similar mounting centres apply to LN770/4 and LN770/5 S 3 S 3

52 53 S 5 Pack Cat No. Architrave switchesPlate size: 32mm wide. Suitable for horizontal or vertical mounting. 10 A770/1 10A 1 gang architrave switch. 68mm long. Suits 141 mounting block. Mounting centres: 57mm. 10 A770/2 10A 2 gang architrave switch. 79mm long. Suits 156 mounting block. Mounting centres: 70mm. Pack Cat No. Switches are supplied with Cat. No. 770M unless otherwise specified. These are interchangeable with any 770, 769, 707 series mechanism. Available to PWD specification with rear-screwed plate mounting of mechanisms. Vertical standard size switchesPlate size: 70 x 114mm. Mounting centres: 84mm 10 770/1 10A 1 gang standard size switch 10 770/2 10A 2 gang standard size switch 10 770/3 10A 3 gang standard size switch 10 770/4 10A 4 gang standard size switch Standard Range Standard Range switches 230 - 240V a.c. Section 5 Pack Cat No. Deep plate surface-mount switchesOther 770, 769 or 707 series mechanisms are available. Please specify. Plate size: 34 x 81 x 21mm. Mounting centres: 60mm. Switch protrudes past mounting surface by 5mm. 10 1A770 10A 1 gang single pole switch (770M mech.) 10 1A770P 10A 1 gang double pole switch, caravan type (769PM mech.) 5 2/770 10A 2 gang single pole switch (770M mech.) 5 2/770P 10A 2 gang double pole switch, caravan type (769PM mech.) Pack Cat No. Older style round surface-mount switchesAvailable to PWD specification with rear-screwed plate mounting of mechanisms. Not suitable for module mechanisms. Plate size: 51mm diameter x 21mm deep. 10 65 10A old style surface switch, 1-2 way & loop Standard Range Section 5 770/1 A770/1 1A770P 65 Pack Cat No. Heavy duty rocker switches, switch isolatorsSpecial integral mechanism size 41 x 63 x 13mm deep from back of plate. Plate size: 70 x 114mm. Mounting centres: 84mm. 10 F1036/3 36A, 240V a.c. single pole switch with looping terminals 10 F1036P 36A, 415V a.c. double pole switch & terminal for common neutral & earth. Pack Cat No. Time delay switches 3 TX770/1RC 10A time delay switch, 3-wire. Push start/push restart, for remote mounting. 1 sec to 239 hrs time adjustment. 3 TX770/1RCNC 10A time delay switch, 3-wire. Push start/push restart, for remote mounting. Normally-closed contacts. 1 sec to 239 hrs time adjustment. 3 TX770/2RC 10A time delay switch, 3-wire. Push start/push stop, for remote mounting. 1 sec to 239 hrs time adjustment. 3 TX770/2RCNC 10A time delay switch, 3-wire. Push start/push stop, for remote mounting. Normally-closed contacts. 1 sec to 239 hrs time adjustment. F1036/3 TF770/1RC

54 55 Standard Range Section 5 Pack Cat No. Rectangle cord-pull ceiling switches, flush mountingPlate size: 114 x 70mm. Mounting centres: 84mm. Cut-out 70 x 48 x 35mm depth from back of plate. Supplied with clear shroud. 10 600 10A flush cord-pull ceiling switch. (770 mech). 10 600N 10A flush cord-pull ceiling switch with neon. (770 mech). 10 600X 15A flush cord-pull ceiling switch, momentary contact, changeover (770XM mech). Pack Cat No. Round cord-pull ceiling switches, surface mountingPlate size: 73mm diameter. Mount- ing centres: 50mm. Supplied with clear rear cover. 10 601 10A surface mounting cord-pull ceiling switch. (770 mech). 10 601X 15A surface mounting cord-pull ceiling switch, momentary contact. (770XM mech). Pack Cat No. KeyTag switchesPlate size: 70 x 114mm. Mounting centres: 84mm. Available in white only. Supplied with Cat. No. 770/20KTM switches inside pockets, Cat. No. 707M neons (opal in pocket, red outside) Cat. No. 770M switches outside pockets, and Cat. No. 770T3 blank tag. The KeyTag mechanisms supplied are interchangeable with other mechs detailed below. 10 770KT1 2 x 20A switches & neon in base pocket 10 770KT2 2 x 20A switches & neon in base pocket, 10A independent switch above Standard Range Section 5 Pack Cat No. KeyLock switch, 10APlate size: 70 x 114mm. Mounting centres: 84mm. 10 770/1KLI KeyLock switch, 10A, key removable in ‘on’ position 10 770/1KLO KeyLock switch, 10A, key removable in ‘off’ position 10 770/1KLIO KeyLock switch, 10A, key removable in ‘on’ or ‘off’ positions Pack Cat No. Booster relay switches for solar hot water systems, and load shedding. Plate size: 70 x 114mm. Mounting centres: 84mm. 3 770REL1 Current held hot water booster switch, neons for boost required, on, temp OK. 4.8kW Pack Cat No. Relay switches pack for motion sensors 3 770REL8 Relay pack. 2400W/1900VA max. Normally open. Not suitable for devices with solid state switching , such as traics. 770REL1 770REL8 770/1KLI 600 601 770KT1 S 5 S 5 3 TF770/1RC Fan time delay switch, 3, 10 & 20 min (approx) time adjustment, for remote mounting. 1 TD170/1 Weatherproof 2-wire time delay switch, 2.5A: 1, 3 & 10 min (approx) time adjustment. Replaces pneumatic type switches used in stairwells etc. 10 770KT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above 10 770KT4 3 x 20A switches in base pocket 10 770KT5 3 x 20A switches in base pocket, 10A independent switch above 10 770KT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 770KT10 3 x 20A switches in top pocket 10 770KT11 3 x 20A switches in top pocket, 10A independent switch below 10 770KT13 3 x 20A switches & neon in base pocket 10 770KT14 4 x 20A switches in base pocket 10 770KT16 4 x 20A switches in top pocketKeyTags 10 770T3 KeyTag, 100mm long, with removable insert Pack Cat No. Single powerpoint with extra switchPlate size: 114 x 70mm. Mounting centres: 84mm. Also available in 15A powerpoint. To order insert/15 as follows: 787/15X, 787/15XS 10 787X 10A single powerpoint with extra swith 10 787XS 10A single powerpoint with extra swith & safety shutter Pack Cat No. Single powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm 10 787 10A single powerpoint 10 787S 10A single powerpoint with safety shutter 10 787NS 10A single powerpoint with neon & safety shutter 10 787R 10A single powerpoint with round earth 10 787/15 15A single powerpoint 10 787/15S 15A single powerpoint with safety shutter 10 787/15NS 15A single powerpoint with neon & safety shutter 10 787/20 20A single powerpoint 10 787/25 25A single powerpoint 10 787/32 32A single powerpoint Standard Range powerpoints 230 - 240V a.c. 787 787X Pack Cat No. Single powerpoints with 2 extra switchesPlate size: 114 x 70mm. Mounting centres 84mm 10 787/2X 10A single powerpoint with 2 extra switches 787/2X Pack Cat No. Double pole single powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm. Supplied with Cat. No. 769PM mechanism. 10 787P 10A double pole single powerpoint 10 787P15 15A double pole single powerpoint 10 787P20 20A double pole single powerpoint 787P Pack Cat No. Vertical single powerpointsPlate size: 70 x 114mm. Mounting centres: 84mm 10 V787 10A vertical single powerpoint V787

56 57 Standard Range Section 5 Pack Cat No. No-volt powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm When power to the circuit is interrupted (no volt) the relay drops out. After power is re- stored, the relay must be manually reset. Ideal for load shedding of non essential loads. Allows greater restart without in-rush loads. 5 787XNV 10A no-volt single powerpoint. Comprises 787X powerpoint with electrically held relay & reset switch (770XM) 5 787XNV15 15A no-volt single powerpoint. Comprises 787/15X powerpoint with electrically held relay & reset switch (770XM) Pack Cat No. Double powerpointsPlate size: 114 x 40mm. Mounting centres: 84mm 10 777 10A double powerpoint 10 777IDCL 10A double powerpoint with Cat. No. 800/2CL blanking insert with clear cap 10 777ID 10A double powerpoint with Cat. No. 800/2 blanking insert with opaque cap 10 777S 10A double powerpoint with safety shutters 10 777NS 10A double powerpoint with neons & safety shutters 10 777R 10A double powerpoint with round earths 10 777/1015 Double powerpoint with 10A & 15A outlets 10 777/15 15A double powerpoint 10 777/15S 15A double powerpoint with safety shutters Pack Cat No. Double powerpoints with extra switchPlate size: 114 x 70mm. Mounting centres: 84mm 10 777X 10A double powerpoint with extra switch 10 777XS 10A double powerpoint with extra switch & safety shutters Pack Cat No. Double pole double powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm 10 777P 10A double pole powerpoint 10 777PLK 10A double pole powerpoint with pre-wired link 10 777P15 15A double pole powerpoint Standard Range Section 5 Pack Cat No. KeyLock powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm. Key removed in off position only. 10 738KL 10A KeyLock powerpoint 10 738KLN 10A KeyLock powerpoint with separate neon 10 738KL15 15A KeyLock powerpoint 10 738KLN15 15A KeyLock powerpoint with separate neon 10 738KL20 20A KeyLock powerpoint 738KL 787XNV 777 777X 777P15 S 5 S 5 Pack Cat No. Jumbo double powerpoint with outside holesPlate size: 143 x 83mm. Mounting centres: 119mm 5 778/0 10A double powerpoint Pack Cat No. Square single powerpointPlate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical and 2 holes at 84mm horizontal on centre line. 5 SQ787 10A single powerpoint Pack Cat No. Large plate triple powerpointPlate size: 184 x 86mm. Mounting centres: 2 holes 152mm horizontal and 6mm below horizontal centre line. 5 3G788 10A single pole triple powerpoint Pack Cat No. Double narrow powerpoints, busbarred for easy wiringPlate size: 157 x 46mm. Mounting centres: 137mm 5 792B 10A double narrow powerpoint with busbar 5 792B1015 Double narrow powerpoint with busbar and 10A & 15A outlets Pack Cat No. Vertical double powerpointsPlate size: 70 x 114mm. Mounting centres: 84mm 10 V777 10A vertical double powerpoint 10 V777LK 10A vertical double powerpoint with pre-wired link 10 V777S 10A vertical double powerpoint with safety shutters 10 V777/15 15A vertical double powerpoint Pack Cat No. Vertical double powerpoint with extra switchPlate size: 70 x 114mm. Mounting centres: 84mm 10 V777X 10A vertical double powerpoint with extra switch Pack Cat No. Double narrow powerpointsPlate size: 157 x 46mm. Mounting centres: 137mm 5 792 10A double narrow powerpoint 5 792NS 10A double narrow powerpoint with neons & safety shutters 5 792/15 15A double narrow powerpoint 5 792/1015 Double narrow powerpoint with 10A &15A outlets Pack Cat No. Single narrow powerpointPlate size: 98 x 46mm. Mounting centres: 79mm 10 790 10A single narrow powerpoint V777 V777X 790 792 792B 778/0 3G788 SQ787

58 59 Standard Range Section 5 Pack Cat No. Square double powerpointsPlate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical and 2 holes at 84mm horizontal on centre line. 5 SQ777 10A double powerpoint Standard Range Section 5 SQ777 S 5 S 5 Pack Cat No. Deep-plate single powerpointsPlate size: 81mm square x 32mm. Mounting centres: 60mm. Mechanism 3mm shallower than mounting surface. 10 1/788 10A single pole single powerpoint 10 1/788P 10A double pole single powerpoint, caravan type 10 1/788P15 15A double pole single powerpoint, caravan type Pack Cat No. Square double powerpoint with extra switchPlate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical. 5 SQ777X 10A double powerpoint with extra switch SQ777X 1/788P 1 777EL30M 30mA Electresafe module. 20A Pack Cat No. Deep-plate single powerpoints with extra switchPlate size: 132 x 81 x 32mm. Mounting centres: 97mm. Mechanisms are 5mm shallower than mounting surface. Powerpoint mechanisms are 3mm shallower than mounting surface. Switch and powerpoint isolated by removable insulation barriers. 5 788PXP 10A 2 pole single powerpoint with extra 2 pole switch, caravan type 5 788PX 10A 2 pole single powerpoint with extra switch Pack Cat No. Deep-plate double powerpoint Plate size: 132 x 81 x 32mm. Mechanism 3mm shallower than mounting surface. 5 2/788P 10A double pole double powerpoint, caravan type Pack Cat No. Electresafe double powerpoints, 30mA trippingPlate size: 114 x 70mm. Mounting centres: 84mm 2 777EL30 30mA Electresafe powerpoint 10A 2 777EL30/1015 30mA Electresafe powerpoint with 10A & 15A outlets 2 777EL30G 30mA Electresafe powerpoint for use on generators, 10A 2 777EL30G1015 30mA Electresafe powerpoint for use on generators, 10A & 15A outlets 788PXP 2/788P 777EL30 Pack Cat No. Electresafe double powerpoints, 10mA trippingPlate size: 114 x 70mm. Mounting centres: 84mm 2 777EL10 10mA Electresafe powerpoint 10A 2 777EL10/1015 10mA Electresafe powerpoint with 10A & 15A outlets 2 777EL10N 10mA Electresafe powerpoint with ‘supply available’ neon, 10A 2 777EL10N3 10mA Electresafe powerpoint with 3 neons, 10ARCD modules for panel mountingPlate size: 114 x 70mm. Mounting centres: 84mm 2 777EL30ES 30mA tripping RCD module, 20A double pole with mounting bracket 2 777EL10ES 10mA tripping RCD module, 20A double pole with mounting bracket Pack Cat No. Single powerpoint, DIN rail mounting Plate size: 67 x 44mm. 4 modules wide, 53mm projection. 10 787DIN 10A single powerpoint with DIN bracket 10 787DIN15 15A single powerpoint with DIN bracket Pack Cat No. Chemically resistant powerpointsPlate size: 114 x 70mm. Mounting centres: 84mm 10 777CH 10A standard double powerpoint Pack Cat No. Shaver supply outletsPlate size: 184 x 85mm. mounting centres: 152mm 1 798H Horizontal shaver outlet & single powerpoint 1 798V Vertical shaver outlet & single powerpoint Pack Cat No. Leading edge light dimmersPlate size: 70 x 114mm. mounting centres: 84mm Refer to technical section at back of this section for more information 3 250L 250VA light dimmer, leading edge 3 400L 400VA light dimmer, leading edge 3 700L 700VA light dimmer, leading edge 3 1000L 1000VA light dimmer, leading edge Standard Range dimmers / fan controllers 230-240V 777EL10 787DIN 777CH 798H 400L Pack Cat No. Trailing edge light dimmersPlate size: 70 x 114mm. Mounting centres: 84mm Refer to technical section at back of this section for more information 3 250T 250VA light dimmer, trailing edge 3 400T 400VA light dimmer, trailing edge 3 700T 700VA light dimmer, trailing edge 3 1000T 1000VA light dimmer, trailing edgeLight dimmers with heatsinkPlate size: 135mm square. Not suitable for mounting blocks. 1 2000E 2000VA light dimmer, leading edge. 60mm deep 1 2400E 2400VA light dimmer, leading edge. 60mm deep 400T

60 61 Standard Range Section 5 Standard Range Section 5 S 5 S 5 Pack Cat No. Modular series RJ outletsPlate size: 114 x 70mm. Mounting centres: 84mm 10 770/1RJ2 Single RJ45 outlet (phone/data, Cat 5E) 10 770/2RJ2 Double RJ45 outlet (phone/data, Cat 5E) Pack Cat No. Please note that not all plates are available in every colour. Standard size switch cover plate onlyPlate size: 114 x 70mm. Mounting centres: 84mm 20 770/0 Blank standard plate 20 770/1PL 1 gang standard switch plate 20 770/2PL 2 gang standard switch plate 20 770/3PL 3 gang standard switch plate 20 770/4PL 4 gang standard switch plate 10 770/5PL 5 gang standard switch plate 10 770/6PL 6 gang standard switch plate Standard Range plates Pack Cat No. Standard size TVPlate size: 70 x 114mm. Mounting centres: 84mm. 10 770/1CX 75 ohm coax outlet 10 770/1FCX 75 ohm coax to F connector Pack Cat No. Fan controllersPlate size: 70 x 114mm. Mounting centres: 84mm 3 300F 300VA fan controller 3 650ET 650VA timed fan controller with auto switch-off. Min load 60VA. Timer switches off load after approximately 2 hours, manually resettable. Also suited for controlling resistive loads. 3 650ET1 650VA timed fan speed controller with auto switch-off and reduced maximum speed. Min load 60VA. Timer switches off load after approximately 2 hours, manually resettable. Also suited to resistive loads. Reduced maximum speed feature meets Department of Public Works requirements. 3 475/1 100VA de-Hummer 3-Speed fan controller, with 1.5 µF & 2.5 µF capacitors (Not suitable for multigang plate installations) 3 475/2 100VA de-Hummer 3-Speed fan controller, with 1.5 µF & 2.5 µF capacitors (Suitable for multigang plate installations) Standard Range outlets Pack Cat No. Deep-plate TV outlet 10 1A770CX 75 ohm coax outlet, in surface mounting base 650ET 1A770CX 770/1CX 770/1RJ1 Pack Cat No. Architrave switch plate only 10 A770/1PL 1 gang architrave switch plate, 68 x 32mm 10 A770/2PL 2 gang architrave switch plate, 81 x 32mm 10 A770/3PL 3 gang architrave switch plate, 106 x 32mm 10 A770/4PL 4 gang architrave switch plate, 132 x 32mmDeep switch surface mounting plate onlyPlate size: 34 x 81 x 21mm. Mounting centres: 60mm. 20 1A770PL 1 gang deep plate, caravan type, for surface mounting 10 2/770PL 2 gang deep plate switch plate Pack Cat No. Intermediate size switch plate onlyPlate size: 95 x 44mm. Mounting centre: 55 or 79mm. 20 AL770/11PL 1 gang intermediate size switch plate. Mounting centres: 55mm 20 AL770/12PL 1 gang intermediate size switch plate. Mounting centres: 79mm 10 AL770/21PL 2 gang intermediate size switch plate. Mounting centres: 55mm 20 AL770/22PL 2 gang intermediate size switch plate. Mounting centres: 79mm A770/1PL AL770/11PL Pack Cat No. Small architrave switch plate only 10 AS770/1PL 1 gang small architrave switch plate, 54 x 26mm 10 AS770/2PL 2 gang small architrave switch plate, 79 x 26mm AS770/1PL Pack Cat No. Square switch plate onlyMounting centres: 1-6 gang: 4 holes at 46mm horizontal and 84mm vertical and 2 holes at 84mm horizontal on centre line. 7-9 gang: 4 holes at 46mm horizontal and 84mm vertical. 20 SQ770/0 Blank square plate 20 SQ770/1PL 1 gang square switch plate 20 SQ770/2PL 2 gang square switch plate 20 SQ770/3PL 3 gang square switch plate 20 SQ770/4PL 4 gang square switch plate 1 SQ770/5PL 5 gang square switch plate 20 SQ770/6PL 6 gang square switch plate 1 SQ770/7PL 7 gang square switch plate 20 SQ770/9PL 9 gang square switch plate Pack Cat No. Computer data & communication plate onlyPlate size: 117 x 73mm. Mounting centres: 84mm 20 770/1D1PL Computer outlet plate for 1 x 9 pin (CP9) D connector socket 20 770/1D3PL Computer outlet plate for 1 x 25 pin (CP25) D connector socket 20 770/2D3PL Computer outlet plate for 2 x 25 pin (CP25) D connector socket Pack Cat No. Plain blank flush caps 100 FLUSHCAPS Plain blank flush caps only. (Packet of 100). Circuit identification and plain caps SQ770/1PL 770/1D1PL Pack Cat No. Identification products 10 800 Blanking piece, suits all 770 series switch plates 10 800LH Blanking piece with hole for potentiometer mounting, suits all 770 series switch plates. 10 800ID Blanking piece engraved - Not Safety Switch Protected. Suits all 770 series switch plates. 50 800/2 Blanking insert with opaque cap. Suits all 770 series switch plates. 50 800/2CL Blanking insert with clear cap. Suits all 770 series switch plates. 50 800/2CL1 Die cut labels for circuit identifica- tion to suit Cat. No. 800/2CL 1 800/2CL3 Blank die-cut paper for Cat. No. 800/2CL2 circuit ID kit. 10 sheets per pack. Specify: WE (white); BU (blue); RED (red); or YE (yellow) Identification products 800/2CL

62 63 Section 5 Standard Range Cat. No. Type Maximum l oad Minimum l oad Inc andesc ent 240V Linear hal ogen GU10 240V hal ogen do wnlights Lo w v olt age hal ogen with wir ew ood (Ir on Cor e) tr ansf ormer s Lo w v olt age hal ogen with el ectr onic tr ansf ormer s ceiling f an Dimmers 250L Leading edge 250VA 10VA       250T Trailing edge 250VA 10VA       400L Leading edge 400VA 10VA       400T Trailing edge 400VA 10VA       700L Leading edge 700VA 10VA       700T Trailing edge 700VA 10VA       1000L Leading edge 1000VA 10VA       1000T Trailing edge 1000VA 10VA       2000E Leading edge 2000VA 100VA     See note  2400E Leading edge 2400VA 100VA     See note  Note Some electronic transformers state that they are compatible with Leading Edge Dimmers. However, significant de-rating of the dimmer is usually required. Therefore, HPM recommends the use of Trailing Edge Dimmers (HPM Cat. No. 400T, 700T or 1000T) for these applications. If it is necessary to use a Leading Edge Dimmer, then please refer to the Dimming Electronic Transformers information sheet enclosed with the product. When using wirewound transformers, ensure the transformers are marked “suitable for dimming” and de-rate the dimmer by 20%. Dimmer specifications Section 5 Standard Range Cat. No. Maximum l oad Neutr al r equir ed Mode of oper ation Normall y open or Normall y cl osed Remot e c ontr ol Timing r ange Remote-mounting time delay switches TX770/1RC 2400VA Yes Re-trigger Normally open Yes 1 sec - 239 hrs TX770/2RC 2400VA Yes Toggle Normally open Yes 1 sec - 239 hrs TX770/1RCNC 2400VA Yes Re-trigger Normally closed Yes 1 sec - 239 hrs TX770/2RCNC 2400VA Yes Toggle Normally closed Yes 1 sec - 239 hrs TF770/1RC 2400VA (lamp) No Fan delay Normally open Yes 3, 10 and 20 min 600VA (fan) • Re-trigger means that a button press during the timing cycle will re-start the timing cycle. • Toggle means that a button press during the timing cycle will stop the timing cycle. • Fan delay means that the fan remains on for a certain period after the light is turned off. A light must be connected for the unit to operate. Time delay switches specifications Wiring diagrams Example application with remote switches. A Cat No. PE170R photoelectric switch is programmed to turn external lights on at dusk and off at a pre programmed time to save energy. Outside of these hours, lights can be turned on for a timed period by the TX770 or remote push buttons. A fan runs for a certain period after light switch is turned off. Information Some HPM time delay switches may have compatibility issues with some types of compact fluorescent lamp or electronic ballast when the load is small. This may cause the lamp to flicker slightly in the off state. It can be overcome by increasing the size of the load, or by connecting a resistive load in parallel. for more information, please contact HPM Technical Support on 1300 369 777 S 5 S 5

64 65 Standard Range Wiring diagrams One-way switching with dimmer 2000E and 2400E 475 and 475/1 475/2 Two-way switching with dimmer Section 5 Section 5 Standard Range Max number of transformers per dimmer Nelson MTECOUGAR60 8 14 20 Nelson MTETRADE65 Nelson MTECONT70 Nelson MTEFOX60 Nelson MTEICE60 Nelson MTEKITTY60 Nelson MTEMICRO60 Nelson MTEPBS60 Assumes 1 x 50W lamp per transformer Nelson MTECONT105 4 7 10 Nelson MTEFLAT105 Nelson MTEFOX105 Nelson MTEICE105 Nelson MTEKITTY105 Assumes 2 x 50W lamp per transformer This table is an example only. Other models of electronic transformers may be used. El ectr onic tr ansf ormer model 400T 700T 1000T Fan controllers 300F 300VA 40VA 475 100VA - 475/1 100VA - 475/2 100VA - Timed fan controller 650ET 650VA 60VA 650ET1 650VA 60VA • Cat. No. 475, 475/1 and 475/2 are capacitive type controllers that will eliminate motor humming. These can control only a single fan. All other fan controllers are capable of controlling multiple fans up to their maximum load. • The capacitor values in Cat. No. 475/1 and 475/2 are the same, and have been selected to suit most fan models. The only diffirence between the two is that Cat. No. 475/2 can be installed on a multi-gang plate with other switches or dimmers. • If Cat. No. 475/1 or 475/2 cause the fan to operate too slowly, Cat. No. 475 should be used instead. • Cat. No. 650ET and 650ET1 have an in-built two hour timer, and will automatically switch off after this time. • Cat. No. 650ET1 has a reduced maximum speed of 80-85% to satisfy Department of Public Works specifications. Cat. No. Maximum l oad Minimum l oad How many electronic transformers can I use? Selecting the correct fan controller 0 20 25˚C 75˚C 50˚C 40 60 80 100 Installation air temperature % Rating Applies to all dimmers and fan controllers S 5 S 5

66 67 F1036P Section 5 Standard Range 787 787/20 787/25 787/32 787X 787/2X Cat No. F1036P Plate size: 70 x 114mm. Mounting centres: 84mm 787X Plate size: 114 x 70mm. Mounting centres: 84mm 787/2X Plate size: 114 x 70mm. Mounting centres: 84mm 787 Plate size: 114 x 70mm. Mounting centres: 84mm 787/20 Plate size: 114 x 70mm. Mounting centres: 84mm 787/25 Plate size: 114 x 70mm. Mounting centres: 84mm 787/32 Plate size: 114 x 70mm. Mounting centres: 84mm N LOAD LOAD E LINE LINE N A E N A E N A E N A E E N A Single powerpoints Single powerpoints with extra switch Single powerpoints with 2 extra switches Heavy duty rocker switches, range switch isolators Standard Range Installation dimensions 300F 700L, 700T 250L, 250T, 400L, 400T Section 5 1000L, 1000T 2000E, 2400E 650ET, 650ET1, 700E S 5 S 5

68 69 Standard Range V777X 777PLK 790 Cat No. 777PLK Plate size: 114 x 70mm. Mounting centres: 84mm V777X Plate size: 70 x 114mm. Mounting centres: 84mm 790 Plate size: 98 x 46mm. Mounting centres: 79mm V777 Plate size: 70 x 114mm. Mounting centres: 84mm V777LK Plate size: 70 x 114mm. Mounting centres: 84mm N DOUBLE POLE A E N DOUBLE POLE A E V777 N A E V777LK Vertical double powerpoint Vertical double powerpoints with extra switch Single narrow powerpoint N A E Double pole double powerpoints Section 5 Section 5 Standard Range V787 738KL 787XNV 777 777X 787P Cat No. 787P Plate size: 114 x 70mm. Mounting centres: 84mm 738KL Plate size: 114 x 70mm. Mounting centres: 84mm 787XNV Plate size: 114 x 70mm. Mounting centres: 84mm V787 Plate size: 70 x 114mm. Mounting centres: 84mm N A E 1 2 2 N A E A N A E E N A A Vertical single powerpoints KeyLock powerpoints No-volt powerpoints 777 Plate size: 114 x 70mm. Mounting centres: 84mm N A E N A E Double powerpoints 777X Plate size: 114 x 70mm. Mounting centres: 84mm N A E Double powerpoints with extra switch Double pole single powerpoint S 5 S 5

70 71 Standard Range 3G2P788 Cat No. 3G2P788 Plate size: 184 x 86mm. Mounting centres: 2 holes 152mm horiz. and 6mm below horiz. centre line N DOUBLE POLE A E N DOUBLE POLE A E N DOUBLE POLE A E 778/O Plate size: 143 x 83mm. Mounting centres 119mm 778/O N A E Jumbo double powerpoints with outside holes Large plate double pole triple powerpoints Section 5 Standard Range Single narrow powerpoints with extra switch 790X 792 792B 3GP788 Cat No. 790X Plate size: 114 x 46mm. Mounting centres: 95mm 792 Plate size: 157 x 46mm. Mounting centres: 137mm 792B Plate size: 157 x 46mm. Mounting centres: 137mm 3GP788 Plate size: 184 x 86mm. Mounting centres: 2 holes 152mm horiz. and 6mm below horiz. centre line POWER N A E N A E N A E N A E N A E N A E N A E N A E N A E Double narrow powerpoints, busbarred for easy wiring Large plate triple powerpoints Double narrow powerpoints Section 5 S 5 S 5

72 73 Standard Range Square double powerpoints with extra switch SQ777X SQ777X Plate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical N A E Single powerpoints, DIN rail mounting 787DIN 787DIN Plate size: 67 x 44mm N A E CUT OUT Cut out: 30 x 50 61.5mm 3mm dia TOP OF RAIL TOP OF ESCUT CHEON 35 X 7.5MM DIN RAIL DIN POWER POINT 53mm Section 5 Standard Range 778/I SQ787 Cat No. 778/I Plate size: 143 x 83mm. Mounting centres: 84mm SQ787 Plate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical and 2 holes at 84mm horizontal on centre line N A E E N A Square single powerpoints Square double powerpoints SQ777 SQ777 Plate size: 114mm square. Mounting centres: 4 holes at 46mm horizontal and 84mm vertical and 2 holes at 84mm horizontal on centre line N A E Jumbo double powerpoints with inside holes Section 5 S 5 S 5

74 75 Section 6 Pack Cat No. Intermediate (DPXT - crossover), 240V a.c. 10 770IM 10A intermediate mechanism. Red body Pack Cat No. 1 way (SPST), 240V a.c. 10 770/20M 20A mechanism, 1 way & loop. Grey body 10 770/35M 35A mechanism, 1 way & loop. Grey body Switch Mechanisms Information Pack Cat No. Mechanism with red dot on dolly, 1 & 2 way (SPDT), 240V a.c. 10 770RM 10A standard mechanism (770M) with red dot on dolly. Pack Cat No. 770 series: 21mm dia x 17mm deep from back of standard plate. 1 and 2 way (SPDT), 240V a.c. 10 770M 10A mechanism, 1-2 way & loop. 10 770/15M 15A mechanism, 1-2 way & loop. 10 770/202M 20A mechanism, 1-2 way & loop. Pack Cat No. Illuminated 1 and 2 way (SPDT), 240V a.c.Supplied with wires to both sides of isolated neon. 1-2 way & loop 10 770LLM 10A self illumination switch mechanism. White body 10 770LL15M 15A self illumination switch mechanism 10 770LL20M 20A self illumination switch mechanism. White body Switch mechanisms Standard colour range available for most mechansims & accessories. Most switch mechanisms are available with laser engraved words. Word options include: FAN, HEAT, AUTO, SENSOR , Etc. To order, insert “PRINT” after the Cat. No. and before the colour descriptor. Please check availability and surcharge details at time of ordering. Switch Mechanisms Section 6 770M 770RM 770LLM 770IM 770/20M S 6 Pack Cat No. Double pole (DPST), 240V a.c.Size 35 x 18 x 166mm from back of standard plate to terminal screws 10 768PM 10A double pole appliance switch mechanism Pack Cat No. Double pole (DPDT) or (DPST), 240V a.c. 769 series: 22mm square x 18mm deep from back of Standard plate. 10 769M 10A mechanism, double pole, double throw. 10 769PM 10A mechanism, double pole, single throw. 10 769P15M 15A mechanism, double pole, single throw. 10 769P20M 20A mechanism, double pole, single throw. 769M 768PM

76 77 Switch Mechanisms Section 6 Pack Cat No. 770 series: 21mm dia. x17mm deep from back of Standard range plate. 769 series: 22mm square x 16mm deep from back of standard plate. Single pole, normally open, non-latching, 240V a.c. 10 NX770M 5A push button mechanism, normally open. 10 NL770M 5A illuminated push button mechanism with neon on when contact is open. 10 NL770/4M 5A illuminated push button mechanism with neon indepen- dently connected. Push button mechanisms Pack Cat No. Single pole, normally closed, non-latching, 240V a.c. 10 NXC770M 5A push button mechanism, normally closed. Green body 10 NLC770/5M 5A illuminated push button mechanism with neon independently connected 10 NLC770/7M 5A illuminated push button mechanism with neon on when contact is open Pack Cat No. Single pole, normally open, non-latching, extra low voltageSuitable for ELV control systems. 20 NX770ELV24 Push button mechanism, 24V dc, normally open 20 NL770ELV24 Push button mechanism, 24V dc, normally open, with 10mA red LED independently connected Pack Cat No. Single pole, Electronic Push Button switch, 240V a.c.Single pole, Electronic Push Button switch, 240V a.c. Available in White (WE), Black (BL), Cream (CR), White / Matt Silver (WEMS) and Black / Matt Silver (BLMS) 10 883M 5A electronic push button switch (neutral required) 22 x 22 x 40mm from back of plate Pack Cat No. Single pole changeover, non-latching, 240V a.c. 10 NCH770M 5A push button mechanism, single pole changeover. 10 NCH770/6M 5A illuminated push button mechanism, single pole changeover, one side of neon connected to switch terminal 10 NCH769NM 5A illuminated push button mechanism, single pole changeover. Neon independently connectedDouble pole changeover, non-latching, 240V a.c. 10 NCH769PM 5A push button mechansism, double pole, changeover. Pack Cat No. Indicating light mechanisms, 240V a.c.Colour codes: Available in Amber (AM), Green (GR), Opal (OP), Red (RED), Blue (BU). Sizes 21mm dia. x 17mm from back of Standard range plate. 10 707M 240V a.c. indicating light, Indicating light mechanisms Section 6 Switch Mechanisms Pack Cat No. Changeover (SPDT), non-latching, 240V a.c. Size 21mm dia. x 17mm from back of Standard range plate. 10 770XM 15A spring return mechanism, single pole changeover. Quick make/Quick break action. Laser engraved with PRESS. Spring return switch mechanism (bell press) Pack Cat No. 2 x 1 way (2 x SPST), 240V a.c.Size 22 x 22 x 18mm from back of Standard range plate 10 770DM 10A DUO mechanism, 2 independent single pole switches in one body DUO switch mechanisms 240V a.c. Pack Cat No. 1 and 2 way (SPDT), and 1 way (SPST), 240V a.c.Size 21mm dia. x 17mm from back of Standard range plate 10 770KTM 10A KeyTag mechanism, 1-2 way & loop. 10 770/15KTM 15A KeyTag mechanism, 1-2 way & loop. 10 770/202KTM 20A KeyTag mechanism, 1-2 way & loop. 10 770/20KTM 20A KeyTag mechanism, 1 way & loop. Pack Cat No. 1 and 2 way SPDT, 240V a.c.Supplied with a Cat. No. 770M mechanism. For common keys suffix Cat. No. with CK eg 770KLOMCK 10 770KLIM 10A KeyLock mechanism, key removable in on (I) position 10 770KLOM 10A KeyLock mechanism, key removable in off (O) position 10 770KLIOM 10A KeyLock mechanism, key removable in on & off (I & O) positions KeyLock assemblies KeyTag mechanisms 770DM 770XM 770KLIM 770KTM NX770M NX770ELV24 883M NXC770M NCH770M 707M 10 870M 10AX mechanical push button switch. 24mm² x 25mm deep from back of plate 10 870IM 10A mechanical push button inter- mediate switch. 24mm² x 25mm deep from back of plate S 6 S 6

78 79 Installation Accessories Section 7 Section 6 Pack Cat No. Trailing edge dimmer mechanisms, 240V a.c., 20 250TM 400VA light dimmer mechanism. Size: 22 x 25 x 35mm from back of Standard plate 20 400TM 400VA light dimmer mechanism. Size: 25 x 25 x 35mm from back of Standard plate 10 700TM 700VA light dimmer mechanism. Size: 50 x 50 x 37mm from back of Standard plate 1 1000TM 1000VA light dimmer mechanism. Size: 50 x 50 x 37mm from back of Standard plate Pack Cat No. Dimmer knobsAvailable in Beige (BE), Black (BL), Brown (BR), Cream (CR), Mistgrey (MG) and White (WE) 10 KNOB1 Dimmer knob Dimmer knob 20 700LM 700VA light dimmer mechanism. Size: 50 x 50 x 37mm from back of Standard plate 1 1000LM 1000VA light dimmer mechanism. Size: 50 x 50 x 37mm from back of Standard plate Pack Cat No. Shrouds 1 749 Insulating shroud, suits all 770 series round mechanisms, 21mm diameter. 21mm sq. Overall length, 45mm with 13mm sq exit hole for cable. 1 749S Insulating shroud, suits all 769 series & DUO square mechanisms, 21mm sq. Overall length, 45mm with 13mm sq exit hole for cable. Mechanism accessories Switch Mechanisms Pack Cat No. Single pole, 240V a.c. 10 770RS180M 15A 180° rotary mechanism with 3 positions 10 770RS270M 15A 270° rotary mechanism with 4 positions 10 770RS360M 15A 360° rotary mechanism with 4 continuous rotation positions Rotary switch mechanisms Pack Cat No. Universal push button mecha- nisms, 240V a.c. Available in White (WE), Black (BL), Cream (CR), Matt Silver/White (WEMS), and Matt Silver/Black (BLMS) 20 450PM 450W push button light dimmer mechanism. Size: 22 x 22 x 40mm from back of standard plate. 20 450SM Secondary dimmer control button, works with 450PM Pack Cat No. Fan control mechanisms, 240V a.c.Size: 25mm square x 16mm deep from back of Standard range plate 20 300FM Fan controller mechanism. Rated 300VA 10 475/2M De-hummer 3-speed fan controller mechanism, rated 100VA Fan control mechanisms 400TM 450P 300FM KNOB1 770RS180M Pack Cat No. Leading edge dimmer mechanisms, 240V a.c. 20 250LM 250VA light dimmer mechanism. Size: 22 x 25 x 35mm from back of Standard plate 20 400LM 400VA light dimmer mechanism. Size: 25 x 25 x 35mm from back of Standard plate Dimmer mechanisms 400LM S 6

120 121 Architectural Metal Range Section 14 Section 14 Architectural Metal Range Pack Cat No. MS large plate flat series switchesPlate size: 88 x 138mm. Mounting centres: 84mm. Standard colours available: white (WE) & black (BL). 1 MS770/1LP 1 gang switch 1 MS770/2LP 2 gang switch 1 MS770/3LP 3 gang switch 1 MS770/4LP 4 gang switch 1 MS770/5LP 5 gang switch 1 MS770/6LP 6 gang switch - WE only Switches 230-240V a.c. Pack Cat No. Switch units without cut-outs (no mechs)Supplied as plate, grids and wall box, but without mechanisms. Available in flat plate style only. mechanisms must be ordered separately. Suits all 770, 769 & 707 series mechanisms. Standard colours for grids & mechanisms - White (WE) & Black (BL). Normally supplied in vertical brushed stainless steel. Can be en- graved to special order. Engravable, removable inserts also available. Plates can be ordered separately by adding PL suffix to Cat. No. Surcharge applicable to any plates other than brushed stainless steel - please check when ordering. 1 ES3-2 6 gang unit, 3 Cat. No. no MG672 grids, ES wall box & plate. 1 ES3-3 9 gang unit, 3 Cat. No. no MG673 grids, ES wall box & plate. 1 ES4-2 8 gang unit, 4 Cat. No. no MG672 grids, ES wall box & plate. 1 ES4-3 12 gang unit, 4 Cat. No. no MG673 grids, ES wall box & plate. 1 ES6-2 12 gang unit, 6 Cat. No. no MG672 grids, ES wall box & plate. 1 ES6-3 18 gang unit, 6 Cat. No. no MG673 grids, ES wall box & plate. White (WE) only. 1 ES9-2 18 gang unit, 9 Cat. No. no MG672 grids, ES wall box & plate. 1 ES12-2 24 gang unit, 12 Cat. No. no MG672 grids, ES wall box & plate. 1 ES15-2 30 gang unit, 15 Cat. No. no MG672 grids, ES wall box & plate. Pack Cat No. MS large plate flat series (grid & plate)Plate size: 88 x 138mm. Mounting centres: 84mm. Standard colours available: white (WE) only. 1 MS770/1GPOLP 1 gang large plate (grid & plate only) 1 MS770/2GPOLP 2 gang large plate (grid & plate only) 1 MS770/3GPOLP 3 gang large plate (grid & plate only) 1 MS770/4GPOLP 4 gang large plate (grid & plate only) 1 MS770/5GPOLP 5 gang large plate (grid & plate only) 1 MS770/6GPOLP 6 gang large plate (grid & plate only) 1 ES18-2 36 gang unit, 18 Cat. No. no MG672 grids, ES wall box & plate. 1 ES21-2 42 gang unit, 21 Cat. No. no MG672 grids, ES wall box & plate. (White (WE) only. 1 ES24-2 48 gang unit, 24 Cat. No. no MG672 grids, ES wall box & plate. White (WE) only. MS770/1LP MS770/1GP0LP ES3-3 S 14

122 123 S 14 Architectural Metal Range Pack Cat No. MS large plate flat series vertical single powerpointPlate size: 88 x 138mm. Mounting centres: 84mm. Standard colours for mechanisms - white (WE) & black (BL). 1 MS788LP 10A vertical powerpoint 1 MS788RLP 10A vertical powerpoint with round earth White (WE) only. 1 MS788/15PLP 15A vertical powerpoint, double pole White (WE) only. Pack Cat No. MS flat series large plate single powerpointPlate size: 138 x 88mm. Standard colours available: white (WE) & black (BL). 1 MS791LP 10A large plate single powerpoint 1 MS791/15LP 15A large plate single powerpoint 1 MS738/20LP 20A large plate single powerpoint Pack Cat No. MS flat series double powerpointsPlate size: 138 x 88mm. Mounting centres: 84mm Standard colours for mechanisms - white (WE) & black (BL). 1 MS777LP 10A double powerpoint 1 MS777NSLP 10A double powerpoint with neons & safety shutters 1 MS777XLP 10A double powerpoint with extra switch Powerpoints 230-240V av Section 14 Pack Cat No. M788 series powerpoint mecha- nisms, 240V a.c.Mechanisms used in MM, MS and Multi series are identical. Standard colours available: White (WE) & Black (BL). 10 M788M Vertical mechanism for 10A powerpoint 10 M788NSM Vertical mechanism for 10A power- point with neon and safety shutter White (WE) only. 1 M788RM Vertical mechanism for 10A powerpoint with round earth White (WE) only. 1 M788PM Vertical mechanism for 10A powerpoint, double pole White (WE) only. 10 M788PNSM Vertical mechanism for 10A powerpoint, double pole, neon and safety shutters 1 M788PNHM Vertical mechanism for 10A 2 pole powerpoint with supply available. Neon & safety shutter for hospital use White (WE) only. MS788LP MS791LP M788M MS777LP M787 series powerpoint mechanisms, 240V a.c.Mechanisms used in MM & MS series are identical. Standard colours available: White (WE) & Black (BL), Mist Grey (MC), Red (RED). 1 M787/1 Horizontal mechanism for 10A powerpoint 10 M787M Horizontal powerpoint for 10A powerpoints 10 M787MNSM Horizontal powerpoint for 10A powerpoints with mean and safety shutter - (WE) & (BL) only Pack Cat No. Multi series powerpoints (no mechs)Plate size: 114mm square. Mounting centres: 84mm. Available in MS flat series plate only. Supplied as plate and wall box, but without mechanisms. Standard colours for mechanisms - white (WE) & black (BL). Supplied as Cat. No. MS788PL plates and Cat. No. 920 to 960 wall boxes but without Cat. no. M788M mechanisms. All items may be ordered separately. No earthing of plate required. Plates can be engraved to special order. 1 MS788/2 Metal plate for 2 powerpoints: 920 wall box & plate. Suits 2 x Cat. No. No M788M mechs. 1 MS788NS2 Metal plate for 2 powerpoints with neons: 920 wall box & plate. Suits 2 x Cat. No. No M788NSM mechs. Black (BL) only. 1 MS788NS3 Metal plate for 3 powerpoints with neons: 930 wall box & plate. Suits 3 x Cat. No. No M788NSM mechs. 1 MS788/4 Metal plate for 4 powerpoints: 940 wall box & plate. Suits 4x Cat. No. No M788M mechs. 1 MS788/6 Metal plate for 6 powerpoints: 960 wall box & plate. Suits 6x Cat. No. No M788M mechs. Black (BL) only. 10 M78815M Vertical mechanism for 15A powerpointM777 powerpoint mechanisms, 240V a.c. 1 M777M Mechanism for double powerpoint Architectural Metal Range Section 14 Pack Cat No. Shaver supply outlets with single powerpointPlate size: 184 x 85mm. Mounting centres: 84mm 1 MS798 Metal plate shaver outlet & single powerpoint 1 MS798V Vertical metal plate shaver outlet & single powerpoint Pack Cat No. Shaver supply outlets with single powerpoint and safety switchPlate size: Horizontal model 225 x 90mm, vertical models 100 x 270mm. Mounting centres: Horizontal models 200mm, vertical models 245mm. 1 MS798EL30 Metal plate shaver outlet & single powerpoint, 30mA Safety Switch 1 MS798VEL30 Vertical metal plate shaver outlet & single powerpoint, 30mA Safety Switch Grids and plates Pack Cat No. Grids, clips and inserts for multi & Esco ranges Standard colours available: white (WE) & black (BL). 1 MG670 1 gang switch grid. 46 x 25mm with 38mm mounting centres. Suits 770, 796, 768 & 707 series mechanisms. Suitable for panel mounting. 1 MG672 2 gang switch grid to suit Multi & Esco series. 114 x 70mm with 84mm mounting centres. 1 MG673 3 gang switch grid to suit Multi & Esco series. 114 x 70mm with 84mm mounting centres. Pack Cat No. MS Large plate flat series TV out- lets, 240V a.c.Plate size: Suffix part no. with LP (138 x 88mm) to indicate plate sizes. Mounting centres: 84mm 1 MS770/1CX 75 ohm coax in standard flat plate Architectural Metal Range outlets MS788/2 MS798 MS798EL30 S 14

124 125 S 14 Architectural Metal Range Section 14 Pack Cat No. MS large plate flat series metal switch platesPlate size: 70 x 114mm. Mounting centres: 84mm. 1 MS770/1PL Plate only for 1 gang switch 1 MS770/2PL Plate only for 2 gang switch 1 MS770/3PL Plate only for 3 gang switch 1 MS770/4PL Plate only for 4 gang switch 1 MS770/5PL Plate only for 5 gang switch Pack Cat No. Metal architrave switch platesPlate size: 70 x 114mm. Mounting centres: 84mm 1 MA770/1PL Metal cover plate only for 1 gang architrave switch 1 MA770/2PL Metal cover plate only for 2 gang architrave switch MS770/1PL Pack Cat No. Multi & Esco range clips & inserts Standard colours available: white (WE) & black (BL). 10 74703 Panel thickness 0.76mm (0.03 inch) 10 74704 Panel thickness 1.00mm (0.04 inch) 10 74705 Panel thickness 1.3mm (0.05 inch) 10 74706 Panel thickness 1.5mm (0.06 inch) 1 801/1 Engravable insert to identify the function of individual switches Suits all Multi series & Esco plates with 2 gang (not 3 gang) switch grids. Supplied either blank or engraved to your requirements - please specify. Plate must be punched to accept. Suffix Cat. No. no 801/1. Mounting accessories 74703 Pack Cat No. Mounting accessories 1 717 Flush mounting assembly for MS switches for mounting on gyprock or wallboard. For large plates. Must be ordered complete with switch - suffix Cat. No. no with /717. 1 717/1 Gyprock mounting bracket, large 1 719 Flush mounting assembly for MS switches for mounting on gyprock or wallboard. Must be ordered complete with switch - suffix Cat. No. no with /717. 1 719/1 Gyprock mounting bracket, small 20 718/8 8mm deep plaster guage. For use with Cat. No. 429 wallbox & Cat. No. 953 adaptor plate. For setting 8mm depth of wallbox for MS series. 20 718/13 Plaster gauge, reusable. For use with Cat. No. 429 wallbox & Cat. No. 953 adaptor plate. For setting 13mm depth of wallbox for MS series powerpoints. 718/8 Hospitality Section 15

126 127 Section 15 Hospitality Excel Range Pack Cat No. BuzzersHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP917WEWE Buzzer 230V 5 XLP918WEWE Electronic buzzer 12/24/48V Pack Cat No. Emergency SwitchHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP915WEWE Emergency stop mushroom Pack Cat No. Illuminated SignsHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP926WEWE Illuminated sign with White LED 5 XLP927WEWE Illuminated sign with Blue LED 5 XLP928WEWE Illuminated sign Green/Red LED Pack Cat No. Bulkhead LightsHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP930WEWE Red bulkhead light 12/24V 5 XLP931WEWE White bulkhead light 12/24V 5 XLP932WEWE Green bulkhead light 12/24V 5 XLP933WEWE Blue bulkhead light 12/24V 5 XLP934WEWE Red bulkhead light 230V 5 XLP935WEWE White bulkhead light 230V 5 XLP936WEWE Green bulkhead light 230V 5 XLP937WEWE Blue bulkhead light 230V Section 15 Hospitality Pack Cat No. Excel KeyTag switchesPlate size: 73 x 117mm. Mount- ing centres: 84mm. Supplied with Cat. No. 770/20KTM switches inside pockets, Cat. No. 707M neons (opal in pocket, red outside), Cat. No. 770T3 blank tag. The KeyTag mechanisms supplied are interchangeable with other mechs. Detailed below. Base pocket style KeyTags are available with plastic cover plates only. 10 XL770KT1 2 x 20A switches & neon in base pocket 10 XL770KT2 2 x 20A switches & neon in base pocket, 10A independent switch above 10 XL770KT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above 10 XL770KT4 3 x 20A switches in base pocket 10 XL770KT5 3 x 20A switches in base pocket, 10A independent switch above 10 XL770KT6 3 x 20A switches in base pocket, 10A independent switch & neon above 10 XL770KT7 2 x 20A switches & neon in top pocket 10 XL770KT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 XL770KT9 2 x 20A switches & neon in top pocket, 10A independent switch & neon below 10 XL770KT10 3 x 20A switches in top pocket 10 XL770KT11 3 x 20A switches in top pocket, 10A independent switch below 10 XL770KT12 3 x 20A switches in top pocket, 10A independent switch & neon below 10 XL770KT13 3 x 20A switches & neon in base pocket 10 XL770KT14 4 x 20A switches in base pocket 10 XL770KT15 3 x 20A switches & neon in top pocket 10 XL770KT16 4 x 20A switches in top pocketKeyTags 10 770T3 Keytag, 100mm long, with removable insert KeyTag switches 230-240V a.c. Pack Cat No. Skirting LightsHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP939WEWE Skirting light 5 XLP940WEWE Skirting light with PIR sensor and sound Pack Cat No. Emergency LightHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP941WEWE Power failure emergency light Pack Cat No. Shutter SwitchedHorizontal standard size plates For controlling roller shutters, blinds and similar devices. Plate size 117 x 73mm. Mounting centres: 84mm 500W, 3 wire 5 XLP919WEWE Relay control shutter switch 5 XLP920WEWE Direct control shutter switch Pack Cat No. Temperature ControlHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP921WEWE Thermostat control HVAC Pack Cat No. Hotel Room IndicatorsHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP924WEWE Hotel corridor call indicator 5 XLP925WEWE Hotel guest room call control XLP915WEWE XLP917WEWE XLP926WEWE XLP927WEWE XLP928WEWE XLP931WEWE XLP939WEWE XLP941WEWE XLP919WEWE XLP920WEWE XLP921WEWE XLP925WEWE XLP924WEWE XL770KT1 S 15 S 15

128 129 Hospitality Section 15 Pack Cat No. Excel KeyCard switches Plate size: 73 x 117mm. Mounting centres: 84mm. Available in white only. Activation by insertion of a room access card, (not sup- plied). Base pocket style KeyTags are available with plastic cover plates only. 10 770/20KMM Mechanism for keycard 10 XL770KM1 2 x 20A switches & neons in base pocket 10 XL770KM2 2 x 20A switches & neons in base pocket, 10A independent switch above 10 XL770KM3 2 x 20A switches & neons in base pocket, 10A independent switch & neon above 10 XL770KM7 2 x 20A switches & neons in top pocket 10 XL770KM8 2 x 20A switches & neons in top pocket, 10A independent switch below 10 XL770KM9 2 x 20A switches & neons in top pocket, 10A independent switch & neon below Pack Cat No. Standard KeyTag switchesPlate size: 70 x 114mm. Mounting centres: 84mm. Available in white only. Supplied with Cat. No. 770/20KTM switches inside pock- ets, Cat. No. 707M neons (opal in pocket, red outside) Cat. No. 770M switches outside pockets, and Cat. No. 770T3 blank tag. The KeyTag mechanisms supplied are interchangeable with other mechs detailed below. 10 770KT1 2 x 20A switches & neon in base pocket 10 770KT2 2 x 20A switches & neon in base pocket, 10A independent switch above 10 770KT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above 10 770KT4 3 x 20A switches in base pocket 10 770KT5 3 x 20A switches in base pocket, 10A independent switch above Section 15 Hospitality Pack Cat No. Architectural Metal Range shaver supply outlets with single powerpointPlate size: 184 x 85mm. Mounting centres: 84mm. 1 MS798 Metal plate shaver outlet & single powerpoint 1 MS798V Vertical metal plate shaver outlet & single powerpoint Pack Cat No. Standard Range shaver supply outletsPlate size: 184 x 85mm. mounting centres: 152mm 1 798H Horizontal shaver outlet & single powerpoint 1 798V Vertical shaver outlet & single powerpoint Pack Cat No Excel shaver supply outlets with double powerpointPlate size: 114 x 177mm. Mounting centres: 84mm Available in white only 1 XL798/777 Excel shaver outlet & double powerpoint 1 XL798/777EL30 Excel shaver outlet & double powerpoint with 30mA safety switch 1 XL798/777X Excel shaver outlet & double powerpoint and extra switch Pack Cat No Shaver supply outlets with single powerpoint and safety switch Plate size: 270 x 100mm. Mounting centres: 245mm. 1 MS798VEL30 Vertical metal plate shaver outlet & single powerpoint, 30mA Safety Switch Shaver supply outlets Pack Cat No Excel shaver supply outletsPlate size: 117 x 73mm. Mounting centres: 84mm 10 XL798/O Excel shaver outlet 10 770KT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 770KT10 3 x 20A switches in top pocket 10 770KT11 3 x 20A switches in top pocket, 10A independent switch below 10 770KT13 3 x 20A switches & neon in base pocket 10 770KT14 4 x 20A switches in base pocket 10 770KT16 4 x 20A switches in top pocket Pack Cat No. Excel VingCard KeyTag switches Plate size: 73 x 117mm. Mounting centres: 84mm. Available in white only. Activation by insertion of a VingCard (not supplied). Base pocket style KeyTags are avail- able with plastic cover plates only. Replacement Market only. 10 XL770VCKT1 2 x 20A switches & neon in base pocket 10 XL770VCKT3 2 x 20A switches & neon in base pocket, 10A independent switch & neon above 10 XL770VCKT4 3 x 20A switches in base pocket 10 XL770VCKT5 3 x 20A switches in base pocket, 10A independent switch above 10 XL770VCKT6 3 x 20A switches in base pocket, 10A independent switch & neon above 10 XL770VCKT7 2 x 20A switches & neon in top pocket 10 XL770VCKT8 2 x 20A switches & neon in top pocket, 10A independent switch below 10 XL770VCKT9 2 x 20A switches & neon in top pocket, 10A independent switch & neon below 10 XL770VCKT10 3 x 20A switches in top pocket 10 XL770VCKT11 3 x 20A switches in top pocket, 10A independent switch below 10 XL770VCKT12 3 x 20A switches in top pocket, 10A independent switch & neon below 10 XL770VCKT13 3 x 20A switches & neon in base pocket 10 XL770VCKT14 4 x 20A switches in base pocket 10 XL770VCKT15 3 x 20A switches & neon in top pocket XL770VCKT1 XL770KM1 770KT1 XL798/O XL798/777EL30 798H MS798 MS798VEL30 S 15 S 15

130 131 Section 15 Hospitality Pack Cat No. 1 and 2 way (SPDT), and 1 way (SPST), 240V acSize 21mm dia. x 17mm from back of Standard range plate 10 770KTM 10A KeyTag mechanism, 1-2 way & loop. Black Body 10 770/15KTM 15A KeyTag mechanism, 1-2 way & loop. Brown Body 10 770/202KTM 20A KeyTag mechanism, 1-2 way & loop. Orange Body 10 770/20KTM 20A KeyTag mechanism, 1 way & loop. Grey Body KeyTag mechanisms 770KTM S 15 Section 16 TV, AV, Data & Communication

132 133 Section 16 TV, AV, Data & Communication Pack Cat No. VGA OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900WEWE HD15 VGA outlet Excel Range Outlets Pack Cat No. RCA OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP901WEWE 1 gang Yellow RCA outlet 5 XLP902WEWE 2 gang White & Red RCA outlet Pack Cat No. Horizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP903WEWE 3 gang Yellow, Red & White RCA outlet 5 XLP904WEWE Red, Green & Blue RCA outlet Pack Cat No. Video OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP905WEWE Mini Din S Video outlet Pack Cat No. HDMI OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP906WEWE 1 gang HDMI (1.3c) outlet Pack Cat No. Speaker OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP907WEWE 1 gang loud speaker outlet 5 XLP907/2WEWE Double loud speaker outlet TV, AV, Data & Communication Section 16 Pack Cat No. XLR Female OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP908WEWE XLR female outlet Pack Cat No. XLR Male OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP909WEWE XLR male outlet Pack Cat No. Speakon OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP910WEWE Speakon outlet Pack Cat No. Audio JackHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP911WEWE 3.5mm audio jack, female plug Pack Cat No. DVI OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP950WEWE 1 gang DVI outlet Pack Cat No. VGA and Audio Jack OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900AUD- WEWE VGA and 3.5mm audio jack Pack Cat No. VGA and USB OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP900US- BWEWE VGA and USB (2.0) outlet Pack Cat No. USB OutletsHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP943WEWE 1 gang USB (2.0) female outlet 5 XLP943/2WEWE Double USB (2.0) XLP900WEWE XLP902WEWE XLP905WEWE XLP906WEWE XLP907/2WEWE XLP908WEWE XLP907WEWE XLP910WEWE XLP911WEWE XLP943/2WEWE XLP950WEWE XLP900AUDWEWE XLP900USBWEWE S 16 S 16 XLP904WEWE Pack Cat No. RGB and RCA OutletsHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XL- P904R2WEWE RGB and White/Red RCA XLP904R2WEWE Pack Cat No. RGB and USB OutletHorizontal standard size plates Plate size 117 x 73mm. Mounting centres: 84mm 5 XLP904US- BWEWE RGB and USB outlet XLP904USBWEWE XLP904R3WEWE 5 XL- P904R3WEWE RGB and Yellow/Red/White RCA XLP901WEWE XLP907WEWE XLP903WEWE XLP943WEWE

134 135 Standard Range outlets Pack Cat No. Standard size TV OutletPlate size: 70 x 114mm Mounting centres: 84mm 10 770/1CX 75 ohm coax outlet 10 770/1FCX 75 ohm coax to F connector Pack Cat No. RGB OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904/2WEWE Double RGB outlet Pack Cat No. RGB and S Video OutletHorizontal standard size plates Plate size 117 x 73mm Mounting centres: 84mm 5 XLP904S- VWEWE RGB and S video outlet TV, AV, Data & Communication Section 16 Pack Cat No. Modular series RJ outletsPlate size: 117 x 73mm Mounting centres: 84mm 10 XL770/1RJ2 Single RJ45 outlet (phone/data, Cat 5E) 10 XL770/2RJ2 Double RJ45 outlet (phone/data, Cat 5E) 10 XL770/1RJ1 Single RJ45 outlet 10 XL770/2RJ1 Double RJ45 outlet 10 XLP770BT BT 2 wire phone outlet, single Pack Cat No. Modular series RJ OutletsPlate size: 114 x 70mm Mounting centres: 84mm 10 770/1RJ2 Single RJ45 outlet (phone/data, Cat 5E) 10 770/2RJ2 Double RJ45 outlet (phone/data, Cat 5E) Pack Cat No Standard size TV outletsStandard size: 73 x 117mm. Mounting centres: 84mm 10 XL770/1CX 75 ohm coax outlet 10 XL770/1FCX 75 ohm coax to F connector Pack Cat No Architrave TV outletPlate size: 32 x 68mm Mounting centres: 70mm 10 XLA770/1CX 75 ohm coax outlet Pack Cat No F connector pay-TV outletPlate size: 73 x 117mm Mounting centres: 84mm 10 XL770F F connector for cable, microwave & satelite TV. 75 ohm, 1G rated (Foxtel Approval No: G21) Pack Cat No. Deep-plate TV Outlet 10 1A770CX 75 ohm coax outlet, in surface mounting base TV, AV, Data & Communication Section 16 Pack Cat No. Telephone outletsPlate size: 73 x 117mm Mounting centres: 84mm 10 XL770TO Excel telephone outlet to suit Telecom 610 socket XLP904/2WEWE XLP904SVWEWE 770/1CX 1A770CX 770/1RJ12 XL770/1CX XLA770/1CX XL770F XL770TO XL770/1RJ1 Pack Cat No Double size communication outlet combinationsPlate size: 117 x 146mm 1 XL222/2T 10A double powerpoint, 2 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 2 horizontal plates tall 1 XL222PA/2T 10A double powerpoint with surge protection, 2 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 2 horizontal plates tall XL222/2T Pack Cat No Triple size communication outlet combinationsPlate size: 117 x 219mm 1 XLV424/3W 2x 10A double powerpoint, 4 x F con-nectors and 2 x RJ45 sockets (8P8C - Cat 5E), 3 vertical plates wide 1 XL422PA/3T 1x 10A double powerpoint with surge protection, 1 x 10A double powerpoint, 2 x F connectors and 2 x RJ45 sockets (8P8C - Cat 5E), 3 horizontal plates tall XL422PA/3T Pack Cat No. Linea Range TV OutletsPlate size: 127 x 82mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss (WE) white, (CR) cream and (BL) black 10 LN770/1CX TV coax outlet 10 LN770/1FCX TV outlet PAL socket with F type connection 10 LN770/2CX/FCX TV coax outlet & TV outlet Pal socket with F type connection Linea Range outlets LN770/2CX/FCX Pack Cat No. Linea Range Telephone and Data OutletsPlate size: 127 x 82mm. Mounting centres 84mm. Low 4mm profile. Available in high gloss (WE) white, CR (Cream) and BL (black) 10 LN770/1RJ1 Single RJ12 outlet (phone) 10 LN770/1RJ2E Single RJ45 outlet (phone/data, Cat 5E) 10 LN770/2RJ1 Double RJ12 outlet (phone) 10 LN770/2RJ2E Double RJ45 outlet (phone/data, Cat 5E) LN770/1RJ1 S 16 S 16

136 137 TV, AV, Data & Communication Section 16 Pack Cat No. Patch Leads 1 HNPL5E200 200mm long CAT5e 1 HNPL5E300 300mm long CAT5e 1 HNPL6300 300mm long CAT6 Patch Leads Pack Cat No. Termination ToolPunchdown/termination tool for HPM RJ sockets. Also available for Krone style IDC. 1 RJT2 Termination tool for punchdown Termination tool Pack Cat No. Adaptors and Inserts for Telephone and DataConsult technical service for the product compatibility matrix 10 800RJT Insert for AT&T socket. Keystone style 'A' 10 800RJ Adaptor to fit RJ6A, RJ8A5, RJ8L5, Amp (8P) sockets. Not suitable DEC, AT&T. Ref 7542. Keystone style 'B' 10 800RJU/H Keystone style 'C' Inserts and adaptors Modular CLQ Universal RJ Sockets An economical range of 8P8C Category 6, 8P8C category 5E and 6P4C & 8P4C Category 3. Suit Clipsal, Cabac, Datacomm, Amdex and other wall plates. 20 RJ8P8C6/2 RJ45 socket, 8P8C, Category 6. White. 20 RJ8P8C5E/2 RJ45 socket, 8P8C, Category 5E. White. 20 RJ6P4C3/2 RJ11 socket, 6P4C, Category 3. White. 20 RJ8P4C3/2 RJ45 socket, 8P4C, Category 3. White. Pack Cat No. Modular HPM RJ Sockets An economical range of 8P8C cate- gory 6, 8P8C category 5E and 6P4C & 8P4C category 3. Suit Standard, Excel & Linea Range plates. 20 RJ8P8C6/1 RJ45 socket, 8P8C, category 6. White. Also available in black (BL), blue (BU), red (RED), yellow (YE) and green (GR). 20 RJ8P8C5E/1 RJ45 socket, 8P8C, category 5E. White. Also available in BL, BU, RED, YE and GR. 20 RJ6P4C3/1 RJ11 socket, 6P4C, category 3. White. Also available in BL, BU, RED, YE and GR. 20 RJ8P4C3/1 RJ45 socket, 8P4C, category 3. White. TV, AV, Data & Communication Section 16 RJ8P8C5E/1 RJ8P8C5E/2 800RJT HNPL5E300 RJT2 Pack Cat No. Telephone Leads and Adaptors 10 D420/1 Standard to standard double adaptor 10 D420/2 Standard to Modular double adaptor 10 D420/3 Standard to Modular adaptor 10 D420/4 Standard telephone plug 10 D420/5 Standard socket, surface mount 10 D420/6 5 metre extension lead withstandard plug & socket Telephone leads and adaptors 5 D420/7 10 metre extension lead withstandard plug & socket 5 D420/8 15 metre extension lead withstandard plug & socket 5 D420/9 Extension bell. 10 metre lead with standard plug 10 D420/10 5 metre handset extension lead curly cord with 2 Modular plugs Pack Cat No. Economy Passive SplittersFor VHF, UHF & CATV signals. Frequency range: 5 - 1000 MHz 10 1311S2 2 way passive splitter 10 1311S3 3 way passive splitter 10 1311S4 4 way passive splitter Splitters D420/1 1311S2 Pack Cat No. Professional Passive SplittersFor VHF, UHF, CATV and satellite signals. Frequency range: 5 -2050 MHz 10 1312S2 2 way passive splitter 10 1312S3 3 way passive splitter 10 1312S4 4 way passive splitter Pack Cat No. ‘F’ Connectors, Plugs and Sockets 10 1310FS ‘F’ connector, female to PAL socket in Cat. No. 800 insert Suits 770 & XL770 style switch plates. 10 1310F6 ‘F’ connector, male fitting, crimp type, for connection RG-6 cable (Pack 10.) 10 1310F59 ‘F’ connector, male fitting, crimp type, for connection RG-59 cable (Pack 10.) 10 1310FL ‘F’ connector, right angled bracket with male fitting on one end & female on other. (Pack 10.) 10 800F 75 ohm ‘F’ connector insert for cable & Pay-TV. Suits Excel, Standard & Linea plates. 10 SWFFC02 75 ohm ‘F’ connector insert for cable & Pay-TV. 2.4 GHz. White insert. (Foxtel Approval No: F10159) Connectors, plugs and sockets 1312S2 1310FS 10 D420/11 4 metre extension lead with 2 modular plugs 10 D420/12 8 metre extension lead with 2 modular plugs 10 D420/14 Single ‘Aussie’ to standard and modular double adaptor 10 D420/15 Skirting mount modular to standard adaptor 10 D420/16 Double extension lead - single modular plug to double modular socket with 5-metre lead 10 D420/18 1 metre modular fly lead 10 D420/19 In-line modular adaptor / cable joiner Pack Cat No. TV Mechanisms 10 770CXM 75 ohm coax socket mechanism 10 770L12CX Loop circuit mechanism, tap loss 12dB, insertion loss 1.6dB 10 770L16CX Loop circuit mechanism, tap loss 16dB, insertion loss 1.3dB TV mechanisms 770CXM S 16 S 16

138 139 Pack Cat No Computer Grids and Plates OnlyPlate size: 117 x 73mm Mounting centres: 84mm. 10 XL770/1D1 Computer outlet plate for 1 x 9 pin (CP9) D connector socket 10 XL770/2D1 Computer outlet plate for 2 x 9 pin (CP9) D connector sockets 10 XL770/1D2 Computer outlet plate for 1 x 15 pin (CP9) D connector socket Excel Range grids and cover plates Pack Cat No Antenna Accessories 10 D1214/1 1m TV/video fly lead 10 D1209/1.5 1.5m antenna lead, 75 ohm 10 D1209/2.5 2.5m antenna lead, 75 ohm 10 R1209/5 5m antenna lead, 75 ohm 5 R1209/10 10m antenna lead, 75 ohm 10 D1211 Coax plug joiner or extension socket, 75 ohm 10 D1210/75 Adaptor balun (coax to ribbon connection), 75 ohm coax to 300 ohm ribbon. 10 D1210/300 Adaptor balun (coax to ribbon connection), 300 ohm coax to 75 ohm ribbon. 10 D770CXP Coax TV plug top, 75 ohm 10 D770CXFP Coax female plug top, 75 ohm Antenna accessories TV, AV, Data & Communication Section 16 Standard Range plate only Pack Cat No. Computer Data & Communication plate onlyPlate size: 114 x 70mm Mounting centres: 84mm 20 770/1D1PL Computer outlet plate for 1 x 9 pin (CP9) D connector socket 20 770/1D3PL Computer outlet plate for 1 x 25 pin (CP25) D connector socket 20 770/2D3PL Computer outlet plate for 2 x 25 pin (CP25) D connector socket 10 770/1CXPL Computer outlet plate for 1 x bayonet cap TCN or BNC connector socket 10 770/2CXPL Computer outlet plate for 2 x bayonet cap TCN or BNC connector sockets 770/1D1PL XL770/1D2 D1214/1 S 16 S 16 Notes

140 141 Industrial Index About Chemically resistant and rated up to IP66, HPM's Quantum Industrial range, specifically designed for high impact zones, is ideal for factory and warehouse fit-outs. Section 17 Quantum Industrial Switchgear Page AS/NZS 3112 flat pin switch & socket combinations, IP66, 240V a.c. 142 AS/NZS 3112 RCD-protected flat pin switch & socket combinations, IP55, 240V a.c. 143 AS/NZS 3123 round pin switch & socket combinations, IP66 240V a.c. and 415V a.c. 143 AS/NZS 3123 RCD-protected round pin switch & socket combinations, IP55, 240V a.c. and 415Va.c. (Australian use) 144 AS/NZS 3112 flat pin captive plugs 240V a.c. 144 AS/NZS 3112 flat pin clear plugs, IP66, 240V a.c. 144 AS/NZS 3123 round pin clear plugs, IP66, 240V a.c. and 415V a.c. 144 Accessories 145 Quantum range wallboxes and enclosures 145 Suspended socket 145 See Legrand ® section for Energy Distribution & Industrial Applications Cable Management Warning Devices IEC Industrial Plugs & Sockets Industrial Boxes & Enclosures Cable Marking Systems Terminal Blocks Quantum Industrial Switchgear Section 17 Transformers & Power Supplies 140

142 143 Section 17 Quantum Industrial Switchgear Information Switch & Socket Combinations IP66 AS/NZS 3112 Pack Cat No. Available standard for surface mounting. Combination socket outlet and switch. 240V a.c. IP66 AS/NZS 3112 2 module size. Blue. 1 HB66C310 10A, 3 flat pin, 1 pole switch, 1.1kW. Matching plug is HB66P310C 1 HB66C310F 10A, flush mounted, 3 flat pin, 1 pole switch, 1.1kW. Matching plug is HB66P310C 1 HB66C310A 10A, 3 flat pin, 2 pole heavy duty switch, 1.1kW. Matching plug is HB66P310C 1 HB66C310L 10A, 3 flat pin with round earth, 1 pole switch, 1.1kW. Matching plug is HB66P310LC 1 HB66C315 15A, 3 flat pin, 1 pole switch, 1.8kW. Matching plug is HB66P315C 1 HB66C315A 15A, 3 flat pin, 2 pole heavy duty switch, 1.8kW. Matching plug is HB66P315C 1 HB66C320A 20A, 3 flat pin, 2 pole heavy duty switch, 2.2kW. Matching plug is HB66P320C - Quantum switch and socket combinations feature one-piece construction for fast installation. - The switch and socket is pre-wired and the unit requires no silicone or bridges to install. - Modular sizes are based on a size of 90 x 90mm modules. - Standard size is 2 modules: 180 x 90mm which can be joined to create multiples to any arrangement and retain the IP66 rating. - Material used is an engineering polymer which produces outstanding chemical resistance and strength. - AS/NZS 3112 types accept normal 3 pin plugs. - AS/NZS 3123 types accept round pin plugs. - Entry is slightly angled eliminating the need for angled plugs. - The plug has a safety stop which catches under the socket flap, preventing accidental removal and to ensure that plug is fully inserted. Pack Cat No. Surface mounting, 240V a.c. IP66 AS/NZS 31121 module socket only. Blue. For flush units (less base) add suffix F to Cat. No. (Indent) 1 HB66SO310 10A, 3 flat pin. Matching plug is HB66P310C 1 HB66SO310L 10A, 2 flat pin with round earth pin. Matching plug is HB66P310LC 1 HB66SO315 15A, 3 flat pin. Matching plug is HB66P315C 1 HB66SO320 20A, 3 flat pin. Matching plug is HB66P320C RCD-protected combinations IP55 AS/NZS 3112 Socket outlets IP66 AS/NZS 3112 For IEC PiN configuration refer to the Hypra range in Legrand catalogue Pack Cat No. Surface mounting, complete with 30mA RCD with easy access through the hinged clear cover. Supplied, assembled and prewired for fast installation. Type AC, 240V a.c. AS/NZS 3112 (for Australian use) 4 module size. Blue. 1 HB55SC310RC 10A, 3 flat pin, 30mA RCD with 2 pole heavy duty switch, 1.1kW. Matching plug is HB66P310C 1 HB55SC315RC 15A, 3 flat pin, 30mA RCD with 2 pole heavy duty switch, 1.8kW. Matching plug is HB66P315C Quantum Industrial Switchgear Section 17 Round pin switch & socket combinations IP66 AS/NZS 3123 Pack Cat No. Available standard for surface mounting. 25mm conduit entries. For flush units (less base) add suffix F to Cat. No. (Indent). Socket outlet & switch combination. 240V a.c., 3 pin (2P+E) AS/NZS 31232 module size. Blue/Clear. 1 HA66C310 10A, 3 round pin, 2 pole switch (2P+E), 1.1kW. Matching plug is HA66P310C 1 HA66C320 20A, 3 round pin, 2 pole switch (2P+E), 2.2kW. Matching plug is HA66P320C 1 HA66C332 32A, 3 round pin, 2 pole switch (2P+E), 4.0kW. Matching plug is HA66P332C Pack Cat No. Socket outlet & switch combination. 415V a.c., 4 pin (3P+E) AS/NZS 31232 module size. Red/Clear. 1 HA66C410 10A, 4 round pin, 3 pole switch (3P+E), 4.5kW. Matching plug is HA66P410C Pack Cat No. Socket outlet & switch combination. 415V a.c., 5 pin (3P+N+E) AS/NZS 31232 module size. Red/Clear. 1 HA66C510 10A, 5 round pin, 4 pole switch (3P+N+E), 4.5kW. Matching plug is HA66P510C 1 HA66C520 20A, 5 round pin, 4 pole switch (3P+N+E), 9.0kW. Matching plug is HA66P520C 1 HA66C532 32A, 5 round pin, 4 pole switch (3P+N+E), 15.0kW. Matching plug is HA66P532C 1 HA66C420 20A, 4 round pin, 3 pole switch (3P+E), 9.0kW. Matching plug is HA66P420C 1 HA66C432 32A, 4 round pin, 3 pole switch (3P+E), 15.0kW. Matching plug is HA66P432C Pack Cat No. Surface mounting, complete with 30mA RCD with easy access through the hinged clear cover. Supplied, assembled and prewired for fast installation. Type AC, 240V ac (for Australian use) AS/NZS 31123 module size. Blue. 1 HB55C310RC 10A, 3 flat pin, 30mA, RCD, 1.1kW. Matching plug is HB66P310C 1 HB55C315RC 15A, 3 flat pin, 30mA, RCD, 1.8kW. Matching plug is HB66P315C HB66C315 HB66SO310 HB55SC310RC HB55C310RC HA66C310 HA66C432 HA66C520 S 17 S 17

144 145 Section 17 AS/NZS 3112 flat pin clear plugs, IP66, 240V a.c. Pack Cat No. Clear plug body facilitates visual safety inspection of wiring. Specially designed terminal housing enhances speed and ease of wiring up. A clamp securely holds the cable preventing it twisting or damaging connections. Interchangeable with other manufacturer's plugs to AS/NZS 3112. 240V a.c., 3 pin Clear body with blue ends. 1 HB66P310C 10A AS/NZS 3112 plug, 3 flat pin 1 HB66P310LC 10A AS/NZS 3112 plug, 2 flat pin with round earth 1 HB66P315C 15A AS/NZS 3112 plug, 3 flat pin 1 HB66P320C 20A AS/NZS 3112 plug, 3 flat pin Quantum Industrial Switchgear Pack Cat No. Type AC, 415V a.c., 4 pin (3P+E) (for Australian use)4 module size. Red/Clear 1 HA55SC420RC 20A AS/NZS 3123 RCD-protected combination, 9.0kW, 4 round pin, 30mA, 3 pole heavy duty switch / 4 pole RCD. Matching plug is HA66P420C 1 HA55SC432RC 32A AS/NZS 3123 RCD-protected combination, 15.0kW, 4 round pins, 30mA, 3 pole heavy duty switch / 4 pole RCD. Matching plug is HA66P432C Pack Cat No. Type AC, 415V a.c., 5 pin (3P+N+E) (for Australian use)4 module size. Red/Clear 1 HA55SC520RC 20A AS/NZS 3123 RCD-protected combination, 9.0kW, 5 round pin, 30mA, 4 pole heavy duty switch / 4 pole RCD. Matching plug is HA66P520C 1 HA55SC532RC 32A AS/NZS 3123 RCD-protected combination, 15.0kW, 5 round pin, 30mA, 4 pole heavy duty switch / 4 pole RCD. Matching plug is HA66P532C AS/NZS 3123 round pin clear plugs, IP66, 240V a.c. and 415V a.c. Pack Cat No. Clear plug body facilitates visual safety inspection of wiring. Specially designed terminal housing enhances speed and ease of wiring up. A clamp securely holds the cable preventing it twisting or damaging connections. Interchangeable with other manufac- turer's plugs to AS/NZS 3123. 240V a.c., 3 pin (2P+E)Clear body with blue ends 10 HA66P310C 10A AS/NZS 3123 plug, 3 round pin 10 HA66P320C 20A AS/NZS 3123 plug, 3 round pin 10 HA66P332C 32A AS/NZS 3123 plug, 3 round pin Quantum Industrial Switchgear Section 17 Quantum range wallboxes and enclosures Pack Cat No. Surface mounting & semi-flush mount. Multi-combination enclosures 1 H65MC2/12 2 gang combination and 12 DIN, IP65 1 H65L1 Blank lid and gasket Pack Cat No. Wallboxes and enclosuresM25 plain conduit entry standard. 1 H55D4 Enclosure for surface mounting, IP55, 4 x DIN, 180 x 90mm, 2 module size Pack Cat No. 415V ac, Spin (3P+N+E)Clear body with red ends. 10 HA66P510C 10A AS/NZS 3123 plug, 5 round pin 10 HA66P520C 20A AS/NZS 3123 plug, 5 round pin 10 HA66P532C 32A AS/NZS 3123 plug, 5 round pin Accessories Pack Cat No. Suspended switched socket, 240V a.c. 1 HSS10 Simple wire up, double pole, accepts industrial plugs HPR10CL or HB66P310C as well as standard 3 pin plugs Suspended socket Pack Cat No. Base adaptor Transition piece 1 H66BA Base adaptor Transition piece for retrofitting Quantum 2-module flush unit to 56 series base in exist- ing installations. Allows installation of Quantum flush combinations where 200 x 100mm bases are fitted. Maintains IP66 rating. 1 H66H3 Hanger/pendant bracket suits all Quantum switch and socket com- binations Pack Cat No. 415V ac, 4 pin (3P+E)Clear body with red ends. 10 HA66P410C 10A AS/NZS 3123 plug, 4 round pin 10 HA66P420C 20A AS/NZS 3123 plug, 4 round pin 10 HA66P432C 32A AS/NZS 3123 plug, 4 round pin For IEC PiN configuration refer to the Legrand catalogue HA55SC420RC HA55SC520RC AS/NZS 3112 flat pin captive plugs 240V a.c. Pack Cat No. Superior economy where IP protection is not required. Blue threaded retaining ring allows standard plug tops to be held captive in industrial socket oulets. 240V a.c., 3 pin 10 HPR10CL 10A AS/NZS 3112 captive plug, 3 flat pin 10 HPR15CL 15A AS/NZS 3112 captive plug, 3 flat pin HPR15CL HB66P310C HA66P310C HA66P420C HA66P532C H66BA H65MC2/12 H55D4 HSS10 RCD-protected round pin switch & socket combinations IP55 AS/NZS 3123 Pack Cat No. Supplied complete with a 30mA RCD with easy access through the hinged clear cover. Supplied assembled and prewired for fast installation. Type AC, 240V a.c., 3 pin (2P+E) (for Australian use) AS/NZS 31234 module size. Blue/Clear. 1 HA55SC320RC 20A, 2.2kW, 3 round pin, 30mA RCD with 2 pole heavy duty switch / 2 pole RCD (2P+E). Matching plug is HA66P320C S 17 S 17
