HPM General Wiring & Installation Accessories

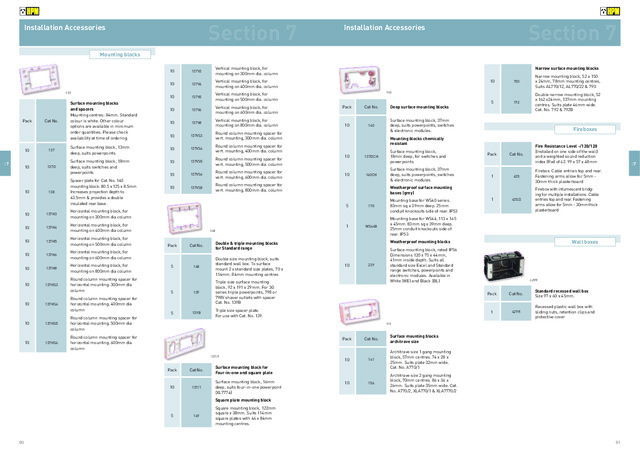

80 81 Installation Accessories Pack Cat No. Deep surface mounting blocks 10 140 Surface mounting block, 37mm deep, suits powerpoints, switches & electronic modules.Mounting blocks chemically resistant 10 137DCH Surface mounting block, 18mm deep, for switches and powerpoints 10 140CH Surface mounting block, 37mm deep, suits powerpoints, switches & electronic modulesWeatherproof surface mounting bases (grey) 5 170 Mounting base for WS40 series. 83mm sq x 39mm deep. 25mm conduit knockouts side of rear. IP53 1 WS44B Mounting base for WS44, 113 x 165 x 45mm. 83mm sq x 39mm deep. 25mm conduit knockouts side of rear. IP53Weatherproof mounting blocks 10 239 Surface mounting block, rated IP56 Dimensions 120 x 75 x 44mm, 41mm inside depth. Suits all standard size Excel and Standard range switches, powerpoints and electronic modules. Available in White (WE) and Black (BL) Pack Cat No. Surface mounting blocks architrave size 10 141 Architrave size 1 gang mounting block, 57mm centres. 74 x 28 x 25mm. Suits plate 32mm wide. Cat. No. A770/1 10 156 Architrave size 2 gang mounting block, 70mm centres. 86 x 36 x 26mm. Suits plate 35mm wide. Cat. No. A770/2, XLA770/1 & XLA7770/2 Pack Cat No. Fire Resistance Level -/120/120 (Installed on one side of the wall) and a weighted sound reduction index (Rw) of 62. 99 x 57 x 48mm 1 435 Firebox. Cable entries top and rear. Fastening arms allow for 5mm - 30mm thick plasterboard 1 435/2 Firebox with intumescent bridg- ing for multiple installations. Cable entries top and rear. Fastening arms allow for 5mm - 30mm thick plasterboard Fireboxes Pack Cat No. Standard recessed wall boxSize 97 x 60 x 45mm. 1 429R Recessed plastic wall box with sliding nuts, retention clips and protective cover Wall boxes Section 7 Narrow surface mounting blocks 10 150 Narrow mounting block, 52 x 150 x 24mm, 78mm mounting centres, Suits AL770/12, AL770/22 & 790 5 192 Double narrow mounting block, 52 x 162 x24mm, 137mm mounting centres. Suits plate 46mm wide. Cat. No. 792 & 792B Installation Accessories Mounting blocks Pack Cat No. Surface mounting blocks and spacers Mounting centres: 84mm. Standard colour is white. Other colour options are available in minimum order quantities. Please check availability at time of ordering. 10 137 Surface mounting block, 13mm deep, suits powerpoints 10 137D Surface mounting block, 18mm deep, suits switches and powerpoints 10 138 Spacer plate for Cat. No. 140 mounting block. 80.5 x 125 x 8.5mmIncreases projection depth to 43.5mm & provides a double insulated rear base. 10 137H3 Horizontal mounting block, for mounting on 300mm dia column 10 137H4 Horizontal mounting block, for mounting on 400mm dia column 10 137H5 Horizontal mounting block, for mounting on 500mm dia column 10 137H6 Horizontal mounting block, for mounting on 600mm dia column 10 137H8 Horizontal mounting block, for mounting on 800mm dia column 10 137HS3 Round column mounting spacer for horizontal mounting. 300mm dia column 10 137HS4 Round column mounting spacer for horizontal mounting. 400mm dia column 10 137HS5 Round column mounting spacer for horizontal mounting. 500mm dia column 10 137HS6 Round column mounting spacer for horizontal mounting. 600mm dia column Pack Cat No. Double & triple mounting blocks for Standard range 5 148 Double size mounting block, suits standard wall box. To surface mount 2 x standard size plates, 70 x 114mm. 84mm mounting centres 5 139 Triple size surface mounting block, 92 x 191 x 29mm. For 3G series triple powerpoints, 798 or 798V shaver outlets with spacer Cat. No. 139B 5 139B Triple size spacer plate. For use with Cat. No. 139. Pack Cat No. Surface mounting block for Four-in-one and square plate 10 137/1 Surface mounting block, 16mm deep, suits four-in-one powerpoint (XL7774)Square plate mounting block 5 149 Square mounting block, 122mm square x 38mm. Suits 114mm square plates with 46 x 84mm mounting centres. 10 137V3 Vertical mounting block, for mounting on 300mm dia. column 10 137V4 Vertical mounting block, for mounting on 400mm dia. column 10 137V5 Vertical mounting block, for mounting on 500mm dia. column 10 137V6 Vertical mounting block, for mounting on 600mm dia. column 10 137V8 Vertical mounting block, for mounting on 800mm dia. column 10 137VS3 Round column mounting spacer for vert. mounting, 300mm dia. column 10 137VS4 Round column mounting spacer for vert. mounting, 400mm dia. column 10 137VS5 Round column mounting spacer for vert. mounting, 500mm dia. column 10 137VS6 Round column mounting spacer for vert. mounting, 600mm dia. column 10 137VS8 Round column mounting spacer for vert. mounting, 800mm dia. column Section 7 137 148 137/1 140 141 429R S 7 S 7

82 83 Pack Cat No. Segregated mounting bracketsSuitable for Harmony Excel combinations. 1 14352 Segregated stud bracket. 2 gang 1 143S3 Segregated stud bracket. 3 gang 1 71252 Segregated gyprock bracket. 2 gang 1 712S3 Segregated gyprock bracket. 3 gang 1 95352 Segregated render bracket. 2 gang 1 953S3 Segregated render bracket. 3 gang Installation Accessories Pack Cat No. Standard size mounting brackets 20 143 Standard size mounting bracket 20 143JM Standard size mounting bracket with external mounting flange 20 143/2 Horizontal bracket, stud-mounting with nails 1 143/2V Vertical bracket, stud-mounting with nails 20 V&S404 Standard vertical mounting bracketTriple size mounting brackets 20 243 Triple size mounting bracket, with 152mm mounting centres. Suits 3G788 10 143U Universal Mounting Stud Bracket. Horizontal or vertical mounting stud bracket with captive nail Mounting brackets Pack Cat No. Render brackets 20 954 Render bracket to suit standard 84mm fixing centres 20 954R Recessed bracket to suit standard 84mm fixing centres Render brackets Pack Cat No. Shroud 20 751 Standard size shroud to fit opening 53 x 73 x 51mm deep. Suits 953, 143, 143JM, V&S404, 711 & 712 1 749 Insulating shroud, suits all 770 series round mechanisms, 21mm diameter 21mm sq. Overal length 45mm with 13mm sq exit hole for cable. 1 749S Insulating shroud, suits all 770 series square mechanisms Shrouds Pack Cat No. Junction boxes 10 413 Miniature junction box, with 3 terminals, (6mm bore). 30A. Size 37 x 68 x 22mm 10 413S Miniature junction box, with 3 terminals, (5mm bore), cord grip entry. 30A. Size 37 x 78 x 22mm 10 413SE Miniature junction box, with 2 terminals, (4mm bore), earth ter- minal, (5mm). 30A. With earthing strap. Size 37 x 68 x 22mm 10 413LA Enclosed terminal box for use by telecommunication providers. Size 37 x 68 x 22mm 5 J170 Modular weatherproof junction box, 40A, 415V with connectors. (3 x 1 screw, 1 x 2 screw). 83mm square x 65mm deep 10 404 Standard size junction box, with 4 x 40A connectors, (3 x 1 screw, 1 x 2 screw). Size 68 x 68 x 38mm 10 405 Giant size junction box, without connectors. Size 68 x 89 x 44mm 10 406 Giant size junction box, with 4 x 50A connectors, (3 x 1 screw, 1 x 2 screw). Size 68 x 89 x 44mm Junction boxes Section 7 Pack Cat No. Wall boxes for Multi Series Size 100mm high x 40mm deep. 20 920 2 gang Multi series wall box. 103mm wide, 84mm mounting centres. Suits all SQ series plates & MS770/24, MS770/26 & MS788/2 20 930 3 gang Multi series wall box. 149mm width, 84mm mounting cen- tres. Suits MS770/36, MS770/39 20 940 4 gang Multi series wall box. 195mm width, 84mm mounting centres. Suits MS770/48, MS770/412 & MS788/4 20 950 5 gang Multi series wall box. 241mm width, 84mm mounting centres. Suits MS770/510, Pack Cat No. Triple size wall boxesSize 165 x 70 x 45mm deep. 10 326 Triple wall box. 152mm mounting centres. Suits 3G788, 798, 798V, MS798 & MS798V Pack Cat No. Double size wall boxesMounting centres: 84mm. Size 97 x 57 x 40mm. 1 429/2 Double size wall box for flush mounting in brick & concrete. Supplied with 2 Pozidrive screws for fixing plate to box. 1 425S2 Segregated wall box. 2 gang. Suits Harmony double plate combinations. Pack Cat No. Mounting clips for standard sized switches, powerpoints etc on 84mm mounting centres 50 711 Mounting clip for 6.4mm wallboard. Max cut out 50 x 76mm. Suits Standard, Standard, Excel, Linea and Arch Metal Ranges, with standard mounting centres. 45 x 102mm, 84mm mounting centres. 50 712 Mounting clip for 10.0mm plaster- board/gyprock. Max cut out 50 x 76mm. Suits Standard, Excel, Linea & Arch Metal Ranges. With standard mounting centres. 48 x 102mm, 84mm mounting centres.Mounting clip for battenholders, ceiling switches, ceiling roses and plug bases 20 716 Mounting clip for 12.7mm plaster- board/gyprock. Max cut out 30 x 40mm. Suits 366, 368, 369, 80, 84, 601, 37 & 35. 75 x 48mm, 51mm mounting centres. Mounting clips Section 7 20 960 6 gang Multi series wall box. 287mm width, 84mm mounting centres. Suits MS770/612, MS770/618 & MS788/6Dual wall boxesSize 53 x 206 x 50mm deep 1 920/1 Dual wall box. Accepts 2 Excel grids, double horizontal, or double vertical Installation Accessories 429/2 326 920 712 143 143/S2 954R 404 413 S 7 S 7

84 85 Plugs, Bases & Sockets Section 8 Section 7 Pack Cat No. Insulated and earth connectors 100 401 40A heavy duty connector, 1 screw, 6mm hole, clear moulding 1 401/1 40A heavy duty connector. 1 screw, 6mm hole, clear moulding. Stack Pack. (Quantity 100) 1 401J 40A heavy duty connector, 1 screw, 6mm hole, clear moulding. (Jar of 100) 100 401L 50A heavy duty connector, 1 screw, 6.6mm hole, blue tinted moulding 50 402 40A heavy duty connector, 2 screws, 6mm hole, clear moulding 1 402/1 40A heavy duty connector. 2 screws, 6mm hole, clear moulding. Stack Pack. (Quantity 50) Insulated and earth connectors Pack Cat No. Cable clips 1 CL3B 13mm plastic flat cable clip with captive steel nail. (bucket of 500) 1 CL4B 15mm plastic flat cable clip with captive steel nail. (bucket of 500) 1 DQ001 Flat white 5mm (20 pack) 1 DQ002 Flat black 5mm (20 pack) 1 DQ003 Round white 6mm (20 pack) 1 DQ004 Round black 6mm (20 pack) 1 DQ005 Flat white 7mm (20 pack) 1 DQ006 Flat black 7mm (20 pack) 1 DQ007 Hook white 8-10mm (20 pack) 1 DQ008 Hook black 8-10mm (20 pack) 1 DQ009 Round white 10mm (20 pack) 1 DQ010 Flat white 13mm (20 pack) 1 DQ011 Flat white 15mm (20 pack) 1 DQ201 Flat white 5mm (200 pack) 1 DQ105 Flat white 7mm (100 pack) 1 DQ107 Hook white 8-10mm (100 pack) 1 DQ108 Hook black 8-10mm (100 pack) 1 DQ109 Round white 10mm (100 pack) 1 DQ110 Flat white 13mm (100 pack) 1 DQ111 Flat white 15mm (100 pack) Cable clips Screws Installation Accessories 401 402 100 246 76mm long 6-32 American thread screw, raised countersunk head. -Specify, Nickel plated or florentine bronze 100 247 51mm long 6-32 American thread screw, raised countersunk head. -Specify, Nickel plated or florentine bronze 100 248 32mm long 6-32 American thread screw, raised countersunk head. -Specify, Nickel plated or florentine bronze S 7

86 87 Section 8 Pack Cat No. 4 pin plug surface bases, 240V a.c. 10 33 10A 4 pin plug base with looping terminal. 50mm mounting centres. 69 x 69 x 46mm. (WE) 10 33B Snap-on base plate for Cat. No. 33 range. 58mm mounting centres. 114 x 70mm. (CL) 10 34 10A double 4 pin plug base with looping terminal. 84mm mounting centres. 69 x 106 x 46mm (WE) 10 34B Snap-on base plate for Cat. No. 34 range. 91mm mounting centres. 150 x 70mm (CL) Pack Cat No. Plug base and plate assembliesMounting centres: 95mm. Suits standard mounting accessories. Can be mounted horizontally or vertically. Size: 114 x 70mm. 10 38/1 10A, Cat. No. 38 plug base on plate (BL. RED, WE) 10 38/115 15A, Cat. No. 38/15 plug base on plate (WE) 10 38/1R 10A, Cat. No. 38R plug base on plate (WE) 10 38/120 20A, Cat. No. 38/20 plug base on plate (WE) 10 38/12R 10A, Cat. No. 38/2R plug base on plate (WE) 1 38/1PL Plate only suit 38 series (WE) Pack Cat No. Plug bases for panel or flush mounting, 240V a.c.Supplied as base mechanism plus front plate. Size: 38mm dia x 25mm deep. Minimum order quantities may apply - please check prior to ordering. 10 38 10A plug base, 3 pin flat, suits panel thickness of 2.5mm (BL, MG, WE) 10 38A0 10A plug base, 3 pin flat, suits panel thickness of 1.0mm (BL, WE) 10 38A1 10A plug base, 3 pin flat, suits panel thickness of 1.2mm (BL, WE) 10 38A2 10A plug base, 3 pin flat, suits panel thickness of 1.5mm (WE) 10 38A3 10A plug base, 3 pin flat, suits panel thickness of 1.6mm (BL, WE) 10 38A4 10A plug base, 3 pin flat, suits panel thickness of 2.0mm (WE) 10 38A5 10A plug base, 3 pin flat, suits panel thickness of 2.2mm (WE) 10 38R 10A plug base, 3 pin, round earth, flat active & neutral, suits panel thickness of 2.5mm (WE) Plugs, Bases & Sockets Pack Cat No. 3 pin plug surface bases, low profile, 240V a.c. 10 35 10A surface base, 3 pin flat (BR, BL, WE) Pack Cat No. Plug bases, surface, 240V a.c.Mounting centres: 50mm. Size 65mm dia x 48mm high. Standard colour is clear. 10 37 10A plug base, 3 pin flat, includes Cat. No. 37B snap-on base plate. (CL, BL) 10 37/15 15A plug base, 3 pin flat (CL) 10 37R 10A plug base, 3 pin, round earth, flat active & neutral (CL) 10 37B Snap-on base plate for Cat. No. 37 range. Also fits Cat. No. 366, 80 & 33 Section 8 Pack Cat No. Large finger-grip, rigid, impact-resistant moulding, 240V a.c. Colour codes:BL (Black), CL (Clear), GY (Grey), WE (White) 10 90 10A plug top, 3 pin flat (BL,WE) 10 90/15 15A plug top, 3 pin flat (BL, WE) 10 90/20 20A plug top, 3 pin flat (WE) 10 90/25 25A plug top, 3 pin, L-shaped earth, flat active and neutral (WE) 10 90R 10A plug top, 3 pin, round earth, flat active and neutral (WE) Pack Cat No. Flexible PVC cover with cord locking nut, and screwed clamp terminals, 240V a.c. 10 100L 10A plug top, 3 pin flat, locking nut, 8mm entry hole (BL, CL, GY, WE) 10 100LHD 10A plug top, 3 pin flat,10mm entry hole for 15A heavy duty cord (CL, GY) 10 100/8 10A plug top, 3 pin flat, figure 8 wire (BL, WE) 10 100R 10A plug top, 3 pin, round earth, flat active & neutral (BL, CL, GY, WE) 10 100/2R 10A plug top, 3 pin, flat earth, round active & neutral (CL, GY, WE) 10 100L15 15A plug top, 3 pin flat (CL, GY, WE) Pack Cat No. Low profile side entry with 45˚ cord entry and screwed clamp terminals, 240V a.c. 10 106/1 10A plug top, 3 pin flat. (BL, GY, WE) 10 106/2 10A plug top, 3 pin flat, accepts 15A heavy duty flexible cord. (WE) 10 106/3 15A plug top, 3 pin flat (BL, WE) 10 106/4 20A plug top, 3 pin flat (WE, GY) 10 106/5 25A plug top, 3 pin, L-shaped earth, flat active & neutral (WE) 10 106/6 10A plug top, 3 pin, round earth, flat active & neutral (WE) 10 106/7 10A plug top, 3 pin, flat earth, round active & neutral (WE) 10 106/8 32A plug top, 3 pin, U-shaped earth, flat active & neutral (WE) Plugs, Bases & Sockets Plug bases Plug tops 10 38/2R 10A plug base, 3 pin, flat earth, round active & neutral, suits panel thickness of 2.5mm (WE) 10 38/15 15A plug base, 3 pin flat, suits panel thickness of 2.5mm (BL, WE) 10 38/20 20A plug base, 3 pin flat, suits panel thickness of 2.5mm (WE) 10 38/25 25A plug base, 2 pin flat with L earth pin, suits panel thickness of 2.5mm (WE) Pack Cat No. Double Plug bases, surface, 240V a.c.Mounting centres: 84mm. Size 111mm dia x 69mm high. 5 37/2 10A double plug base (base included). Available in Clear (CL) and Black (BL) 5 37/215 15A double plug base (base included). Available in Clear (CL) 90 106/1 100L 37 37/2 35 38/15 38/1 33 S 8 S 8

88 89 Section 8 Pack Cat No. Switched lampholders - tapered cap - top cable entry240V a.c. Double pole push bar switch with red dot indication. Supplied with long skirt, (Cat. No. 333SK). 10 310 Switched lampholder with 1/2 inch brass thread with nipple (WE) 10 310/10 Switched lampholder with 10mm thread (1.0mm pitch) (WE) Plugs, Bases & Sockets Pack Cat No. Tapered cap - top cable entrySupplied with long skirt, (Cat. No. 333SK) 10 359 Lampholder with 10 mm thread (1.0 mm pitch) (WE) Pack Cat No. Festoon lampholdersMounting centres: 50mm. 3A, 240V a.c.. BC with side entry cable, wire piercing connections. Overall height 65mm. 10 303/1F Lampholder with fanged screw-on cap & long skirt, (Cat. No. 333SK) (BL) 10 WS303/1R Lampholder with round screw-on cap & rubber skirt for weatherproofing (BL) 10 WS303/1F Lampholder with fanged screw-on cap & rubber skirt for weatherproofing (BL) Pack Cat No. Lampholder skirts 10 333SK Lampholder skirt (long), 37 mm (WE) Lampholder accessories Pack Cat No. BC cord grip, 240V. Colour codes: BL (Black), WE (White) 10 333 Lampholder, cord grip, supplied with long skirt, (Cat. No. 333SK) (BL, WE) Lampholders Section 8 Plugs, Bases & Sockets Pack Cat No. Battenholder, 4 terminals 240V. a.c. To suit B22 bayonet cap lamps. Supplied with long skirt, (Cat. No. 333SK). 10 360 Adjustable angle battenholder, 4 large terminals. 64mm dia base. 50mm mounting centres. (WE) 5 360/W1 Adjustable angle battenholder, IP23. 4 terminals. Integral anchor plugs. 50mm mounting centres. (WE) 10 366BR Battenholder, 4 terminals, standard 68mm dia base. 50mm mounting centres. (WE) 10 366S Safety battenholder, 4 terminals, standard 68mm diameter base. 50mm mounting centres. (WE) 10 366Y Battenholder, 4 terminals, integral fix-fast anchor plugs, standard 68mm dia base. 50mm mounting centres. (WE) 10 366LY Battenholder, 4 terminals, separate fix-fast anchor plugs, standard 68mm dia base. 50mm mounting centres. (WE) 10 368 Battenholder, 4 terminals, 90mm dia base. 50mm mounting centres. (WE) Battenholders Pack Cat No. Latching cover ceiling roses, 240V a.c. 10 80 Ceiling rose, 4 way connection. Easily wired with connectors supplied. 68mm dia x 44mm high. (WE)Screw-on cover ceiling roses, 240V a.c.Size: 65mm dia x 37mm high. 10 84 Ceiling rose 10A, 4 plate x 2 post per plate (WE)Large screw-on cover type, 240V a.c.Size: 92mm dia x 36mm high. 10 78 Ceiling rose 10A, 4 plate x 2 posts per plate (WE) Ceiling roses Pack Cat No. Flexible PVC cover with safety skirt, cord locking nut and screwed clamp terminals, 240V a.c.Colour codes: BL (Black), Cl (Clear), GY (Grey), WE (White). 10 7P 10A extension socket, 3 pin flat, 8mm entry hole (BL, CL, GY, WE) 10 7P15 15A extension socket, 3 pin flat, 10mm entry hole (CL, GY, WE) Extension sockets 7P 80 84 366 333 359/10 310 303/1F 333SK S 8 S 8

Published: 23 May 2013 Category: Product Catalogues
