EYE Lighting - Street & Roadway
Eye Lighting

EYE Lighting - Street & Roadway

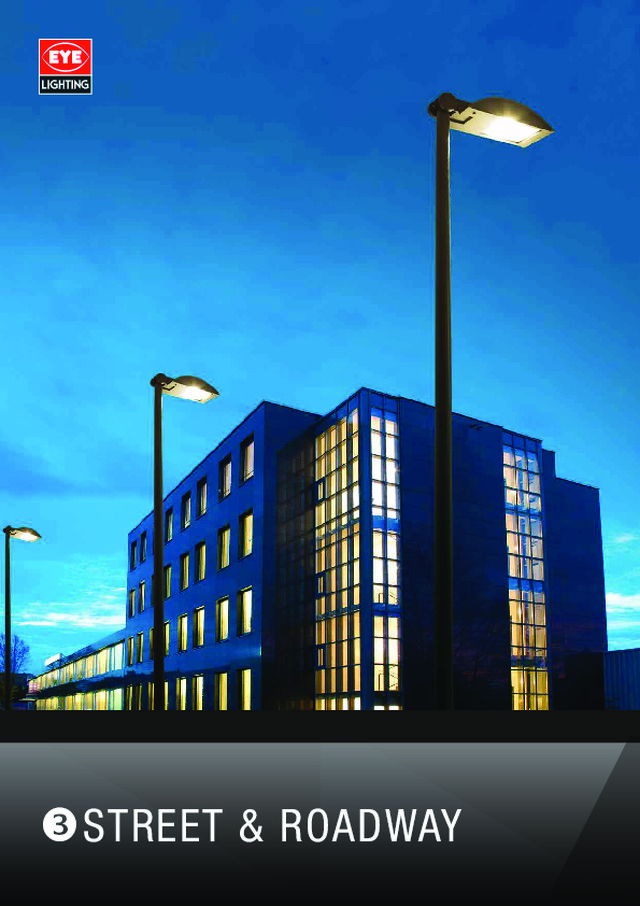

Ž STREET & ROADWAY

Street & Roadway Aphos Pole Mount Diamantina Kyro 2 HID Leo/SR 3.1 3.2 3.3 3.4

Measurements & Weights Technical Data The  Aphos Pole Mount is a robust LED luminaire offering a   variety of illumination levels ideal for mounting in a range of applications. APHOS POLE MOUNT Aphos Pole Mount IP65 Class I 595 101 152 76 51 51 x Ø 10 THRU Ø 61 13 25 127 13 51 Ø 51 2 x Ø 14 THRU 101 152 25 51 51 51 Ø 38 THRU 61 51 Ø 14   THRU 2 plcs MAPWM1 Square Pole or Wall Mount Round Pole Mount MARPC1 595 101 152 76 51 51 x Ø 10 THRU Ø 61 13 25 127 13 51 Ø 51 2 x Ø 14 THRU 101 152 25 51 51 51 Ø 38 THRU 61 51 Ø 14   THRU 2 plcs MAPWM1 Square Pole or Wall Mount Round Pole Mount MARPC1 595 101 152 76 51 51 x Ø 10 THRU Ø 61 13 25 127 13 51 Ø 51 2 x Ø 14 THRU 101 152 25 51 51 51 Ø 38 THRU 61 51 Ø 14   THRU 2 plcs MAPWM1 Square Pole or Wall Mount Round Pole Mount MARPC1 8.2 kg Max. 105W LED - Asymmetrical 105W LED - Symmetrical MAPWM1Square Pole or Wall Mount MARPC1Round Pole Mount 595 152 Ø61 Ø 61 Ø 51 151 10 x Ø Ø38 THRU Ø14  THRU v2 plcs 2 x Ø14 THRU THRU 101 101 51 25 51 51 13 13 25 51 51 51 127 76 Ø51 66 145 267 102  Specification ¬   Body - combination of die-cast and   extruded aluminium powder coated (silver) ¬   Lens - UV stabilised acrylic  ¬   LED configuration - 16, 32 or 64 available ¬   Colour temp. - 4000K ¬   Beam type - symmetrical medium   / asymmetrical side throw ¬   Driver - integral (ETRC) ¬   Operating temp. -35°C to +40°C ¬   Mounting - internal mount accepts O.D.    Ø60mm mounting spigot ¬   Electrical connection - Ø20mm        threaded entry ¬   Maintenance - easy single tool entry with       quick connects and wire strain relief     Special Features ¬   Thermal management - patented dynamic      thermal design accelerates air flow ¬   Product and components developed for     protection against heat, vibration and    water ingress ¬   EMC Compliant - product complies with all     provisions set out in AS/NZS CISPR 15:2011  Applications  ¬   Typical installations include parking lots,       public areas, residential and    street locations 3.1 EYE.VOL6.SAR.v1

EYE Lighting | Volume 6 Catalogue Street & Roadway For the latest product information visit  www.eyelighting.com.au Product Range Ž Code   Description 189150 MAPWM1 Arm Mount  Assembly  Ø 60mm (Square  Pole or Wall Mount) 189151 MARPC1 Arm AssemblyCoped  Ø 60mm  (Round Pole Mount) Accessories EYE Lighting International of North America, Inc. a division of Iwasaki Electric of Japan 9150 Hendricks Road   Tel:  (888) 665-2677   Mentor, Ohio 44060   Fax:  (440) 350-7001   Printed with soy-based inks on mixed-source paper (55% recycled, 30% post consumer waste).   Code   Description ℓ m LED Driver Distribution LED - Symmetrical 189015 Aphos PM L3 16 LED 3,963 43W - LED Integral Symmetrical  Medium Beam 189060 Aphos PM L7 32 LED 6,600 75W - LED Integral Symmetrical  Medium Beam 189105 Aphos PM L10 64 LED 10,667 105W - LED Integral Symmetrical  Medium Beam LED  - Asymmetrical 189000 Aphos PM L3 16 LED 3,963 43W - LED Integral Asymmetrical  Side Throw 189045 Aphos PM L7 32 LED 6,600 75W - LED Integral Asymmetrical  Side Throw 189090 Aphos PM L10 64 LED 10,667 105W - LED Integral Asymmetrical  Side Throw Pictorial is representative only. Specifications may change without notice. EYE.VOL6.SAR.v1 EYE.VOL6.SAR.v1

Measurements & Weights Technical Data The  Diamantina is a streetlight luminaire featuring a full cut-off  reflector that is designed to meet the demands of modern public area lighting. Installation and maintenance is tool free. DIAMANTINA Diamantina IP66 IP43  Class II F IK08 5J 150W EYE Cera Arc™ EX 8.0 kg Max. 0º 0º +20º +20º 90 90 ø60-76 ø42-60 max 135º 334 310 610 0º 0º +20º +20º 90 90 ø60-76 ø42-60 max 135º 334 310 610 2x2.5mm 2      EYE Cera Arc™ EX Characteristics  Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM70FLS/EX/HOR 3,500 75 20,000 72 E27 HOR  ±60° 7,700 107 CMT150/EX/HOR 3,500 75 24,000 150 E40 HOR ±45° 17,300 115  Specification ¬   Body - high temperature resistant and    UV-stabilised technopolymer (grey) ¬   Fixing - die-cast aluminium pole fixing clamp  ¬   Lens - clear toughened safety glass  ¬   Seal - lens is secured with a direct-to-glass     bonded silicone gasket ¬   Reflector - high purity aluminium anodised     and polished ¬   Beam type - street light side throw ¬   Control gear - integral  ¬   Mounting - pole or wall  ¬   Installation - suitable for pole Ø42mm - Ø76mm ¬   Adjustability - mounting incline adjustable    up to 20° ¬   Maintenance - upper cover is hinged and       unclips for access to lamp and control gear ¬   All maintenance is tool free ¬   Isolating terminal - interrupts power supply     when the gear tray is accessed    Special Features     ¬   Gear tray can be removed without tools ¬   Full cut-off reflector to eliminate light pollution  Applications  ¬   Suitable applications include minor roads and     side streets, residential and general       lighting of access roads and walkways       as well as security applications 2 x 2.5mm 2 Max. 135º +20º 0º 90 90 610 310 334 Ø60 - 76 Ø42 - 60 3.2 EYE.VOL6.SAR.v1

EYE Lighting | Volume 6 Catalogue Street & Roadway For the latest product information visit  www.eyelighting.com.au Product Range Ž Code   Description Lamp Gear Distribution CMH 156137 Diamantina CML70/L 70W -  CM70FLS/EX/HOR Integral Street Light  Side Throw  ^ Operates on approved mercury vapour control gear (IEC 60188).  CMH 156157 Diamantina CM150/L 150W -  CMT150/EX/HOR Integral Street Light  Side Throw HPS 156155 Diamantina S150/L 150W - NHT150 Integral Street Light  Side Throw ^ Operates on approved high pressure sodium control gear (IEC 60662). All fixtures supplied with lamp and 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated.  Pictorial is representative only. Specifications may change without notice. Code   Description 158120 Diamantina Wall Mount Bracket Accessories EYE.VOL6.SAR.v1 EYE.VOL6.SAR.v1

Measurements & Weights Technical Data The  Kyro 2 HID is a streetlight luminaire combining contemporary  styling with functional illumination offering a modern solution for public area lighting applications.  KYRO 2 HID Kyro 2 HID IP66 IK08 7J Class II 250W EYE Cera Arc™ EX 12.8 kg Max. 1103 345 80-120 845 76-90 170 Wall Mount Bracket Pole Mount  Single Arm Outreach EYE Cera Arc™ EX Characteristics  Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CMT250/EX/HOR 3,500 80 24,000 250 E40 HOR  ±45° 33,000 132 770 155 Ø60÷62 - Ø76÷78 835 330 170  Specification ¬   Body - die-cast aluminium pre-treated and     powder coated (grey)  ¬   Fixings - stainless steel  ¬   Lens - clear toughened safety glass ¬   Reflector - high purity aluminium anodised     and polished ¬   Beam type - street light side throw  ¬   Control gear - integral  ¬   Mounting - pole top, wall mount or decorative     arm available ¬   Installation - suitable for Ø60 -Ø76mm poles ¬   Adjustability - mounting incline adjustable    up to 30° ¬   Electrical connection - 2 x 2.5mm 2     terminal block ¬   Maintenance - hinged luminaire unclips for     easy access to lamp and control gear ¬   Fully removable gear tray for    workshop servicing   Special Features     ¬   Isolating terminal - interrupts power supply     when the gear tray is accessed  ¬   Easy installation and maintenance    Applications  ¬   Ideal for public area lighting, residential lighting     and minor/major roadway and street lighting    applications. Typical mounting heights    8m - 12m 835 770 155 845 76 - 90 1103 80 - 120 345 Ø60 - Ø62 /  Ø76 - 78 Single Arm Outreach Wall Mount Bracket Pole Mount 330 3.3 EYE.VOL6.SAR.v1

EYE Lighting | Volume 6 Catalogue Street & Roadway For the latest product information visit  www.eyelighting.com.au Product Range Ž Code   Description 155890 Single Arm Outreach (850mm) 155891 Mid Pole Mount -(for poles Ø76 -  Ø 90mm) 155892 Kyro 2 Wall Mount Bracket (310mm) Accessories Code   Description Lamp Gear Distribution CMH 155865 Kyro 2 HID  CM250/L 250W -  CMT250/EX/HOR Integral  Street Light  Side Throw  ^ Operates from approved high pressure sodium control gear (IEC 60662). All fixtures supplied with lamp and 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated.   Pictorial is representative only. Specifications may change without notice. EYE.VOL6.SAR.v1 EYE.VOL6.SAR.v1

Measurements & Weights Technical Data The  Leo/SR is a professional grade street light luminaire designed  with a rear mounted lamp for maximum side-throw light  distribution.  LEO/SR Leo/SR IP65  Class I F IK09 15J 220W EYE Cera Arc™ EX 12.0 kg Max. Ø10 ÷Ø14 M20x1,5 3x2,5mm 2 max 75 ° 430 09 2 595 Ø60 ÷76 max 75 ° max 75 ° 90 ° 1080 09 2 Ø60 ÷76 55 LEO CLASS I IP 65 94 IK 09 15J /S-A-C (NO 400W) /WR IK 08 6J Max 400W NAV-T SON-T ST 150W NAV-TS MHT-D HQI-TS SD-MD Max 400W CDO-TT HQI-BT/D HQI-T/D Max 400W HPI-T Plus MT MT max 13kg M20x1,5 Ø10÷Ø14 H05RN-F 3G1,5 3x2,5mm 2 Min 30 cm Min 90° 320 2xM10 200 45 3xØ11 850° 0,16m 2 430 215 545 Max 180° Min 1 cm Min 8 cm A0084 A0085 A0070 A0169 A0234 A0105 A0104/1 A0104/2 A999 A0031 A0083 - A0160 240 40° 50° 25° 43° 128°÷148° Imax 10÷33° Lampholder W Ilcos °K Optic Colour Class Wiring EEI = Cosφ ≥ 0,9 Code Notes E40 100W ST  WR 94 I CR 05061794 E40 150W ST-MT  WR 94 I CR 05061894 E40 250W ST-MT  WR 94 I CR 05061994 E40 100W ST  WR 94 I CR 05061394 E40 150W ST-MT  WR 94 I CR 05061494 E40 250W ST-MT  WR 94 I CR 05061594 LEO/WR Roadway reflector ACCESSORIES Code Denomination Colour Description 14327933 A0084 Steel wire guard (20Joule).  14009794 A0085 94 External steel anti-glare louvre painted aluminium grey. 14009594 A0070 94 External steel cowl painted aluminium grey. 14009894 A0169 94 External sheet steel circular baffle finished grey, available for LEO/C version only. 14018220 A0234 Frosted glass supplement to be ordered together with the fitting for factory fitted option. 14396993 A0105 Prismatic glass suitable for LEO/C fittings only. 14009694 A0083 94 Long bracket for ceiling mounting, painted aluminium grey. 14001699 A0160  INOX LEO mounting bracket in stainless steel. 14009994 A0104/1 94 Single aluminium pole top bracket for Ø60-76mm poles painted aluminium grey. 14010094 A0104/2 94  Twin aluminium pole top bracket for Ø60-76mm poles painted aluminium grey. 14012294 A999 94 Steel ‘U’ bolt clamp for Ø60-80mm poles painted aluminium grey. 14011594 A0031 94 1m support in strong sheet steel painted aluminium grey. Frosted glass fittings. EYE Cera Arc™ EX Characteristics  Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CMT150/EX/HOR 3,500 75 24,000 150 E40 HOR ±45° 17,300 115 EYE Cera Arc™ ACE EX Characteristics  Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CMT220LS/EX/HOR 3,500 75 24,000 230 E40 HOR ±45° 27,700 120  Specification ¬   Body - die-cast aluminium body pre-treated     and powder coated (grey)  ¬   Fixing clips - anodised aluminium with stainless     steel springs ¬   Lens - hinged clear toughened safety     glass (5mm) ¬   Reflector - high purity aluminium anodised     and polished  ¬   Beam type - street light side throw ¬   Control gear - integral  ¬   Mounting - pole or wall ¬   Mounting bracket - adjustable steel mounting     bracket with a clutch locking device ¬   Maintenance - easy lamp and control gear     access via the quick release clips    Special Features     ¬  Main features include reliable operation, high     output performance, low glare and elimination    of spill light  Applications  ¬   Typical applications include the illumination of     exit roads, car parks and large open areas on    the perimeter of building or fences 90º M20 x 1.5 1080 Ø10 - Ø14 3 x 2.5mm 2 Ø60 - 76 200 320 430 545 3 x Ø11 45 290 Max. 75º Max. 75º Max. 75º 2 x M10 3.4 EYE.VOL6.SAR.v1

EYE Lighting | Volume 6 Catalogue Street & Roadway For the latest product information visit  www.eyelighting.com.au Product Range Ž Code   Description Lamp Gear Distribution CMH 174024 Leo/SR CM150/L 150W -  CMT150/EX/HOR Integral Street Light   Side Throw ^ Operates on approved high pressure sodium control gear (IEC 60662). CMH 174025 Leo/SR CML220/L 220W -  CMT220LS/EX/HOR Integral Street Light  Side Throw HPS 174010 Leo/SR S220/L 220W - NHT220LX Integral Street Light  Side Throw ^ Operates on approved mercury vapour control gear (IEC 60188). All fixtures supplied with lamp and 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated.   Pictorial is representative only. Specifications may change without notice. Code   Description 174108 Leo/SR Protection Grill 174110 Leo/SR Pole Mounting Bracket 174105 Leo/SR Replacement Lens Accessories EYE.VOL6.SAR.v1 EYE.VOL6.SAR.v1
