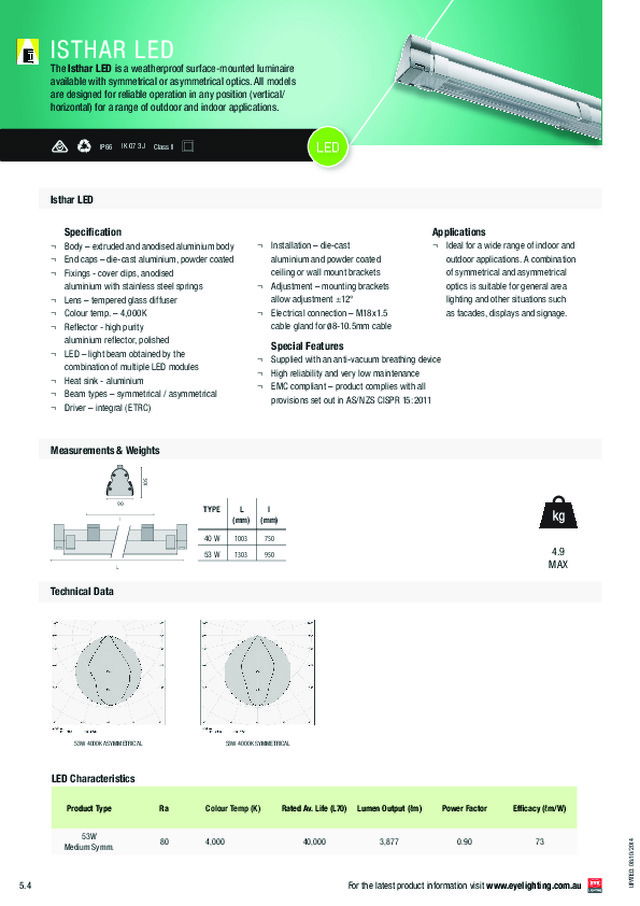

Eye Lighting - Isthar LED Weatherproof Surface Mounted Luminaire

Measurements & Weights Technical Data The  Isthar LED is a weatherproof surface-mounted luminaire  available with symmetrical or asymmetrical optics. All models are designed for reliable operation in any position (vertical/horizontal) for a range of outdoor and indoor applications. ISTHAR LED Isthar LED LED Characteristics  Product Type Ra  Colour Temp (K) Rated Av. Life (L70) Lumen Output (ℓm) Power Factor Efficacy (ℓm/W) 53W  Medium Symm. 80 4,000 40,000  3,877 0.90 73 IK 07 3J Class II IP66 53W 4000K ASYMMETRICAL 53W 4000K SYMMETRICAL TYPE L (mm) I (mm) 40 W 1003 750 53 W 1303 950  Specification   ¬ Body – extruded and anodised aluminium body   ¬ End caps – die-cast aluminium, powder coated    ¬ Fixings - cover clips, anodised       aluminium with stainless steel springs   ¬ Lens – tempered glass diffuser    ¬ Colour temp. – 4,000K    ¬ Reflector - high purity       aluminium reflector, polished   ¬ LED – light beam obtained by the       combination of multiple LED modules   ¬ Heat sink - aluminium   ¬ Beam types – symmetrical / asymmetrical    ¬ Driver – integral (ETRC)   Special Features   ¬ Supplied with an anti-vacuum breathing device   ¬ High reliability and very low maintenance   ¬ EMC compliant – product complies with all    provisions set out in AS/NZS CISPR 15:2011 Applications   ¬ Ideal for a wide range of indoor and   outdoor applications. A combination    of symmetrical and asymmetrical    optics is suitable for general area    lighting and other situations such     as facades, displays and signage. 4.9 MAX   ¬ Installation – die-cast       aluminium and powder coated     ceiling or wall mount brackets   ¬ Adjustment – mounting brackets    allow adjustment ±12°    ¬ Electrical connection – M18x1.5    cable gland for  ø 8-10.5mm cable 10 5 90 I L 5.4 For the latest product information visit  www.eyelighting.com.au UP ATED:  08/10/2014

EYE Lighting | Volume 6 Catalogue Multi-purpose For the latest product information visit  www.eyelighting.com.au Product Range  Code   Description ℓ m LED Gear Distribution LED SYMMETRICAL - Isthar LED N.66-40 S/M 840 2,907 40W  Integral Symmetrical  Medium Beam - Isthar LED N.88-53 S/M 840 3,877 53W Integral Symmetrical  Medium Beam LED ASYMMETRICAL - Isthar LED N.66-40 A10/W  840 2,810 40W Integral Asymmetrical  Wide Beam - Isthar LED N.88-53 A10/W  840 3,664 53W Integral Asymmetrical  Wide Beam  Pictorial is representative only. Specifications may change without notice. UPDA TED:  08/10/2014 UP ATED:  08/10/2014
