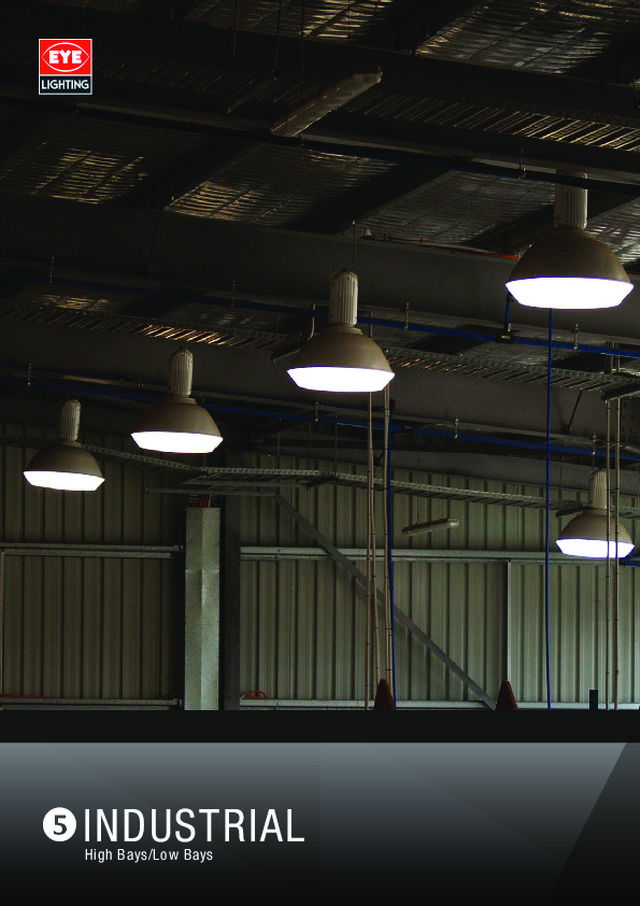

EYE Lighting | Volume 6 Catalogue INDUSTRIAL High Bays/Low Bays

High Bays / Lo w Bays Lama Quick Prismcast Prismcast 66 SAW 412 5.1 5.2 5.3 5.4 SAW 711 Squat HID 5.5 5.6

Measurements & Weights Technical Data The Lama Quick is a versatile high bay fixture with a quick connect system for easy installation. A range of efficient reflector systems are available in a variety of beam spreads. LAMA QUICK 360W EYE Cera Arc ™ - Narrow Beam 360W EYE Cera Arc ™ - Wide Beam IP65 Class I Lama Quick EYE Cera Arc™ ACE PRO Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM230FLS//PRO/BUD 4,100 80 24,000 235 E40 BU/BD ±45° 25,900 110 CM360FLS/PRO/BUD 4,100 80 24,000 375 E40 BU/BD ±45° 45,300 121 Specification ¬ Body - die-cast aluminium gear box powder coated (grey) ¬ Lens - clear toughened safety glass ¬ Lens clips - anodised aluminium hinged cover clips ¬ Reflector - high purity aluminium anodised and polished ¬ Beam types - faceted wide beam, wide beam and narrow beam ¬ Common specification - faceted wide beam (check application before ordering) ¬ Control gear - pendant ¬ Mounting - pre-wired luminaire mounted using M8 hook for quick installation ¬ Electrical connection - IP65 fast fit plug ¬ Tool free maintenance - internal access via quick release clips ¬ Lens is retained via nylon lanyards during maintenance Special Features ¬ EYE Cera Arc ™ Ace models for enhanced bright white light and increased spacing between fixtures Applications ¬ Ideal applications include warehouses, factories and large enclosed areas with mounting heights ranging from 5m to 12m Ø500 0 2 6 x a M 0 2 3 Ø500 0 2 6 x a M 0 2 3 Ø500 0 2 6 x a M 0 0 3 Ø 34 0 0 5 5 x a M 0 6 2 Ø340 5 0 6 x a M 0 6 2 Ø500 0 2 6 x a M 0 2 3 Ø500 0 2 6 x a M 0 2 3 Ø500 0 2 6 x a M 0 0 3 Ø 34 0 0 5 5 x a M 0 6 2 Ø340 5 0 6 x a M 0 6 2 Large Wide Beam Reflector 220-400W Narrow Beam Reflector 220-400W ø 9-14mm 3x2.5mm 2 10.8 kg Max. Ø9 - Ø14mm Ø500 Ø500 300 320 Max. 620 Max. 620 5.1 EYE.VOL6.HLB.v1

EYE Lighting | Volume 6 Catalogue High Bays / Lo w Bays For the latest product information visit www.eyelighting.com.au Product Range Code Description Lamp Gear Distribution CMH 150052 Lama Quick CML230/L 230W - CM230FLS/PRO/BUD H250 Box Pendant Symmetrical - Wide, Wide Faceted or Narrow Beam 150057 Lama Quick CML360/L 360W - CM360FLS/PRO/BUD H400 Box Pendant Symmetrical - Wide, Wide Faceted or Narrow Beam HPS 150065 Lama Quick S220/L 220W - NH220FLX H250 Box Pendant Symmetrical - Wide, Wide Faceted or Narrow Beam 150070 Lama Quick S360/L 360W - NH360FLX H400 Box Pendant Symmetrical - Wide, Wide Faceted or Narrow Beam ^ Operates on approved mercury vapour control gear (IEC 60188). All fixtures supplied with lamp and 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated. CMH = Ceramic Metal Halide Lamp. Pictorial is representative only. Specifications may change without notice. Code Description 150010 Lama Wide Beam Reflector Ø480mm (A0119-48D) 150015 Lama Faceted Wide Beam Reflector Ø480mm (A0119-48PR) 150020 Lama Narrow Beam Reflector Ø480mm (A0119-48I) 150030 Lama Glass Replacement Lens (A0120-AL-48) Accessories EYE.VOL6.HLB.v1 EYE.VOL6.HLB.v1

Measurements & Weights Technical Data The Prismcast is a covered high bay fixture designed for reliable operation in hot ambient conditions as either a high bay (pendant) or low bay (recessed) fixture. PRISMCAST IP40 Class I 360W EYE Cera Arc ™ 17.7 kg Max. Prismcast EYE Twin Cera Arc TM Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM230FTW/W/BUD 4,100 80 50,000 235 E40 BU/BD ±15° 25,900 110 EYE Cera Arc TM ACE PRO Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM230LS/PRO/BUD 4,100 80 24,000 235 E40 BU/BD ±45° 27,900 119 CM360LS/PRO/BUD 4,100 80 24,000 375 E40 BU/BD ±45° 47,000 125 Specification ¬ Gear box body - die-cast aluminium (EA401), pre-treated and powder coated (white) ¬ Reflector optical chamber - spun aluminium, pre-treated and powder coated (white) ¬ Lens - non-yellowing UV injection moulded acrylic ¬ Lamp containment - lens passes the hot lamp containment test for safety ¬ Control gear - pendant ¬ Flex cable - 1.7m cable and plug supplied ¬ Mounting - suspended via chain and suspension eyelets ¬ Mounting option - remote control gear available for mounting closer to the ceiling or recessed mounting into ceiling cavity with flange kit ¬ Maintenance - optical assembly twists and drops down retained by two stainless steel lanyards for lamp access ¬ Terminal block - fused Special Features ¬ 400W MH control gear unit has a 10 year life expectancy at a continuous 62°C ambient temperature ¬ Deep heat sink fins actively draws heat away from control gear ¬ Reflector design significantly reduces glare Applications ¬ Suitable for industrial and commercial applications including food and beverage production, retail stores, warehouses and high traffic areas 808 Ø711 422 183 503 Ø711 2m Flex Hard Wired Remote Gear 1.8 Flex & Plug Flat Earth 1.7m cablecomplete with3 pin plug Remote Gear 1.8 Flex & Plug Flat Earth 2m Flex Hard Wired Remote GearHousing 300 503 183 808 422 Ø711 Ø729 - 2 Cut Out Flex & Plug Round Earth Ø711 5.2 EYE.VOL6.HLB.v1

Measurements & Weights Technical Data The Prismcast 66 is a covered high bay fixture designed for reliable operation in harsh conditions. The shape sheds off water easily allowing for cleaning with a high pressure hose. PRISMCAST 66 IP66 Class I 360W EYE Cera Arc ™ Prismcast 66 EYE Twin Cera Arc TM Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM230FTW/W/BUD 4,100 80 50,000 235 E40 BU/BD ±15° 25,900 110 EYE Cera Arc TM ACE PRO Characteristics CM230LS/PRO/BUD 4,100 80 24,000 235 E40 BU/BD ±45° 27,900 119 CM360LS/PRO/BUD 4,100 80 24,000 375 E40 BU/BD ±45° 47,000 125 Specification ¬ Gear box body - die-cast aluminium (EA401), pre-treated and powder coated (white) ¬ Reflector optical chamber - spun aluminium, pre-treated and powder coated (white) ¬ Lens - non-yellowing UV injection moulded acrylic ¬ Lamp containment - lens passes the hot lamp containment test for safety ¬ Control gear - pendant ¬ Flex cable - 1.7m cable and plug supplied ¬ Mounting - suspended via chain and suspension eyelets ¬ Mounting option - remote control gear available for mounting closer to the ceiling or recessed mounting into ceiling cavity with flange kit ¬ Maintenance - optical assembly twists and drops down retained by two stainless steel lanyards for lamp access ¬ Terminal block - fused Special Features ¬ 400W MH control gear unit has a 10 year life expectancy at a continuous 62°C ambient temperature ¬ Deep heat sink fins actively draws heat away from control gear Applications ¬ Ideal for food preparation areas, abattoirs, meat processing as well as heavy industrial and mining applications 808 Ø711 422 183 503 Ø711 2m Flex Hard Wired Remote Gear 1.8 Flex & Plug Flat Earth 1.7m cablecomplete with3 pin plug 18.0 kg Max. Remote Gear 1.8 Flex & Plug Flat Earth 2m Flex Hard Wired Remote GearHousing 300 503 183 808 422 Ø711 Ø711 Ø729 - 2 Cut Out Flex & Plug Round Earth 5.3 EYE.VOL6.HLB.v1

Measurements & Weights Technical Data The SAW 412 high bay pendant fixture features a high performance facetted glass lined (ALGLAS ® ) reflector system. Ideal for medium wattage HID lamps. SAW 412 Class I 360W EYE Cera Arc ™ ACE PRO SAW 412 EYE Twin Cera Arc TM Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM230FTW/W/BUD 4,100 80 50,000 235 E40 BU/BD ±15° 25,900 110 EYE Cera Arc TM ACE PRO Characteristics CM230FLS/PRO/BUD 4,100 80 24,000 235 E40 BU/BD ±45° 25,900 110 CM360FLS/PRO/BUD 4,100 80 24,000 375 E40 BU/BD ±45° 45,300 121 Specification ¬ Body - pendant control gear housing extruded and anodised aluminium body ¬ Standard fixture is an open type (no lens) ¬ Lens option - tempered glass lens and fixing band available ¬ Reflector - chemically polished high grade aluminium reflector with ALGLAS ® finish ¬ Control gear - pendant control gear to suit lamp selection ¬ Electrical connection - 1.9m flex cable and plug supplied ¬ Mounting - suspended via zinc-coated steel mounting ring with lock nut ¬ Maintenance - open optical assembly for easy lamp access Special Features ¬ ALGLAS ® treated reflector is ideal for corrosive environments and resists dirt accumulation ¬ ALGLAS ® treatment offers exceptional light reflectance capabilities ¬ Reflector shape provides a self-cleaning airflow ¬ Deep heat sink fins actively draws heat away from control gear ¬ When using as an open fixture the EYE Cera Arc TM lamp is recommended Applications ¬ Ideal for general applications with mounting heights ranging from 5m to 10m 165 A 355 314 1.9m cablecomplete with3 pin plug 7.5 kg Max. Type A (mm) SAW 412 PCMX 230/L 675 SAW 412 CMX 230/L 675 SAW 412 CMX 360/L 675 SAW 412 SX/LX 220/L 675 SAW 412 SX/LX 360/L 675 SAW 412 MX 250/L 675 SAW 412 MX 400/L 675 SAW 412 SX 250/L 675 SAW 412 SX 400/L 710 SAW 412 SX S250/FEC/L 675 SAW 412 SX 400/FEC/L 710 NB: ALGLAS ® is a registered trademark of the General Electric Company, USA. 165 355 110 A 5.4 EYE.VOL6.HLB.v1

EYE Lighting | Volume 6 Catalogue High Bays / Lo w Bays For the latest product information visit www.eyelighting.com.au Product Range Code Description Lamp Gear Distribution CMH 180095 SAW 412 PCMX CM230FTW/L 230W - Twin Arc CM230FTW/W/BUD PCMX230 Pendant Symmetrical Wide Beam 180042 SAW 412 CMX CML230/L 230W - CM230FLS/PRO/ BUD PHX250 Pendant Symmetrical Wide Beam 180052 SAW 412 CMX CML360/L 360W - CM360FLS/PRO/ BUD PHX400 Pendant Symmetrical Wide Beam HPS 180060 SAW 412 SX/LX S220/L 220W - NH220FLX PHX250 Pendant Symmetrical Wide Beam 180065 SAW 412 SX/LX S360/L 360W - NH360FLX PHX400 Pendant Symmetrical Wide Beam ^ Operates on approved mercury vapour control gear (IEC 60188). MH 180035 SAW 412 MX M250/L 250W - MF250X/U PMX250 Pendant Symmetrical Wide Beam 180045 SAW 412 MX M400/L 400W - MF400X/U PMX400 Pendant Symmetrical Wide Beam ^ Operates on approved metal halide control gear (IEC 61167). HPS 180020 SAW 412 SX S250/FEC/L 250W - NH250F/I PSX250-FEC Pendant Symmetrical Wide Beam 180015 SAW 412 SX S250/L 250W - NH250F PSX250 Pendant Symmetrical Wide Beam 180030 SAW 412 SX S400/FEC/L 400W - NH400F/I PSX400-FEC Pendant Symmetrical Wide Beam 180025 SAW 412 SX S400/L 400W - NH400F PSX400 Pendant Symmetrical Wide Beam ^ Operates on approved high pressure sodium control gear (IEC 60662). All fixtures supplied with lamp and 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated. CMH = Ceramic Metal Halide Lamp. Pictorial is representative only. Specifications may change without notice. Code Description 180102 SAW 412 Reflector(110W - 400W) 180110 SAW 412 Louvre 180125 SAW 412 Wire Guard 180135 SAW 412 Glass Lens and Band 180145 SAW 412 Dust Cover SAW 412 Pendant Control Gear 252520 PHX 250 Pendant 240V / PSX 220 Pendant 240V 252530 PHX 400 Pendant 240V / PSX 360 Pendant 240V 252500 PMX 250 Pendant 240V 252505 PMX 400 Pendant 240V 252526 PSX 250-FEC Pendant 240V 252525 PSX 250 Pendant 240V 252541 PSX 400-FEC Pendant 240V 252540 PSX 400 Pendant 240V 252502 PCMX 230 Pendant 240V Accessories EYE.VOL6.HLB.v1 EYE.VOL6.HLB.v1

Measurements & Weights Technical Data The SAW 711 high bay pendant fixture features a high performance facetted glass lined (ALGLAS ® ) reflector system. Ideal for high wattage HID lamps. SAW 711 660W EYE Cera Arc TM PRO2 Class I SAW 711 EYE Cera Arc™ ACE PRO2 Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CM660FLS/PRO2/BU 4,100 85 20,000 660 E40 BU ±15° 71,300 108 Specification ¬ Body - pendant control gear housing extruded and anodised aluminium body ¬ Standard fixture is an open type (no lens) ¬ Lens option - tempered glass lens and fixing band available ¬ Reflector - chemically polished high grade aluminium reflector with ALGLAS ® finish ¬ Control gear - pendant control gear to suit lamp selection ¬ Electrical connection - 1.9m flex cable and plug supplied ¬ Mounting - suspended via zinc-coated steel mounting ring with lock nut ¬ Maintenance - open optical assembly for easy lamp access Special Features ¬ ALGLAS ® treated reflector is ideal for corrosive environment and resists dirt accumulation ¬ ALGLAS ® treatment offers exceptional light reflectance capabilities ¬ Reflector shape provides a self-cleaning airflow ¬ Deep heat sink fins actively draws heat away from control gear Applications ¬ Ideal for general applications with mounting heights ranging from 10m to 20m 1.9m cablecomplete with3 pin plug 880 535 165 13.2 kg Max. NB: ALGLAS ® is a registered trademark of the General Electric Company, USA. 165 535 880 5.5 EYE.VOL6.HLB.v1

Measurements & Weights Technical Data The Squat HID is a structurally strong high performance, low profile alternative to bulky industrial high bay fixtures. SQUAT HID 220W EYE Cera Arc TM EX without V Shaped Reflector 220W EYE Cera Arc TM EX with V Shaped Reflector IP65 IK 07 4J Class I Squat HID EYE Cera Arc™ EX Characteristics Product Type Colour Temp. (K) Ra Life (hrs) Rated (W) Base Burning Position Initial Lumens Efficacy ( ℓ m/W) CMT150/EX/HOR 3,500 75 24,000 150 E40 HOR ±45° 17,300 115 CMT220LS/EX/HOR 3,500 75 24,000 235 E40 HOR ±45° 27,700 120 Specification ¬ Body - extruded and anodised aluminium ¬ End caps - high pressure cast aluminium, pre-treated and powder coated (grey) ¬ Fire resistant to 850°C ¬ Lens - hinged clear toughened glass ¬ Reflector - high purity aluminium anodised and polished with a mirror finish ¬ Adjustable photometric distribution - supplied with 2 x removable ‘V’ shaped side reflectors for square light distribution ¬ Removal of ‘V’ shaped side reflectors creates a rectangular distribution (luminaire orientation should be considered when removing) ¬ Control gear - integral ¬ Mounting - extruded aluminium brackets for ceiling or wall mounting ¬ Tool free maintenance - internal access via quick release clips Special Features ¬ Weatherproof low profile luminaire ideal for internal or external use Applications ¬ Typical applications include warehouses, cold storage, indoor sporting complexes, covered car parks, transit centres and tunnels 65 248 09 1 PGx16 Ø10 - Ø14 3x2.5 - 4mm 2 8.5x1 6 0 6 71 400- 1300m 798min - 1016max m L NO OK 65 248 09 1 PGx16 Ø10 - Ø14 3x2.5 - 4mm 2 8.5x1 6 0 6 71 400- 1300m 798min - 1016max m L NO OK 18.3 kg Max. 65 248 798 3 x 2.5 - 4mm 2 PG x 16 Ø10 - Ø14 190 5.6 EYE.VOL6.HLB.v1

EYE Lighting | Volume 6 Catalogue High Bays / Lo w Bays For the latest product information visit www.eyelighting.com.au Product Range Code Description Lamp Gear Distribution CMH 164044 Squat HID CML220/L 220W - CMT220LS/EX/HOR Integral Symmetrical (adjustable) HPS 164030 Squat HID S220/L 220W - NHT220LX Integral Symmetrical (adjustable) ^ Operates on approved mercury vapour control gear (IEC 60188). CMH 164007 Squat HID CM150/L 150W - CMT150/EX/HOR Integral Symmetrical (adjustable) ^ Operates on approved high pressure sodium control gear (IEC 60662). All fixtures supplied with 240V(AUS) / 230V(NZ) 50Hz control gear unless otherwise stated. CMH = Ceramic Metal Halide Lamp. Pictorial is representative only. Specifications may change without notice. Code Description 164106 Pole/rail Mounting Clamps Ø33 - Ø42mm (A0193) Accessories Light Distribution with V Shaped Reflector Light Distribution without V Shaped Reflector EYE.VOL6.HLB.v1 EYE.VOL6.HLB.v1
