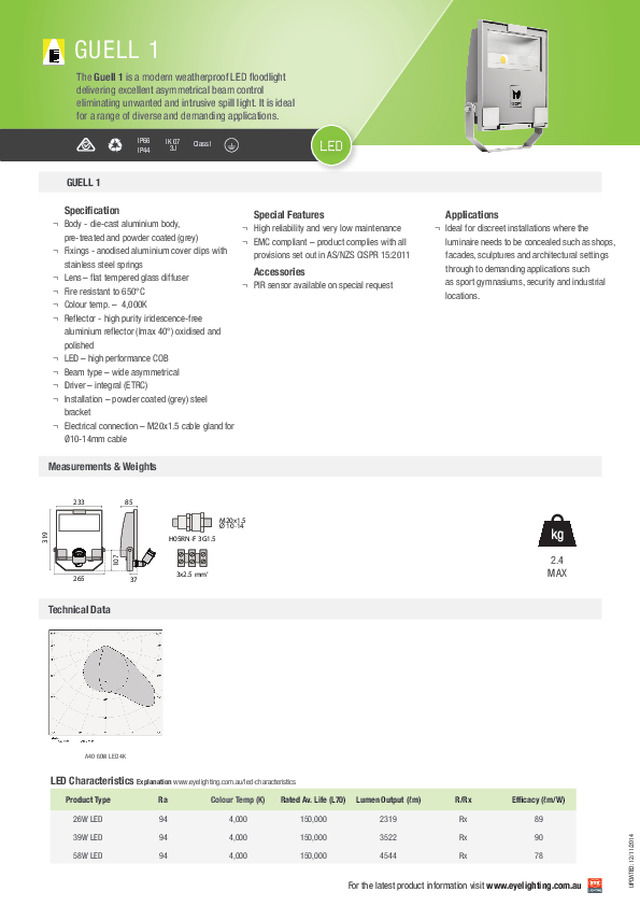

Eye Lighting - Guell 1 - Modern Weatherproof LED Floodlight

Measurements & Weights Technical Data UPDA TED:  12/11/2014 For the latest product information visit  www.eyelighting.com.au GUELL 1 A40 60W LED 4K LED Characteristics  Explanation www.eyelighting.com.au/led-characteristics Product Type Ra  Colour Temp (K) Rated Av. Life (L70) Lumen Output (ℓm) R/Rx Efficacy (ℓm/W) 26W LED 94 4,000 150,000 2319 Rx 89 39W LED 94 4,000 150,000 3522 Rx 90 58W LED 94 4,000 150,000 4544 Rx 78 The  Guell 1 is a modern weatherproof LED floodlight  delivering excellent asymmetrical beam control eliminating unwanted and intrusive spill light. It is ideal for a range of diverse and demanding applications. GUELL 1  Specification   ¬ Body - die-cast aluminium body,    pre-treated and powder coated (grey)   ¬ Fixings - anodised aluminium cover clips with    stainless steel springs   ¬ Lens – flat tempered glass diffuser   ¬ Fire resistant to 650°C   ¬ Colour temp. –  4,000K   ¬ Reflector - high purity iridescence-free       aluminium reflector (Imax 40°) oxidised and   polished   ¬ LED – high performance COB   ¬ Beam type – wide asymmetrical    ¬ Driver – integral (ETRC)   ¬ Installation – powder coated (grey) steel     bracket    ¬ Electrical connection – M20x1.5 cable gland for    Ø10-14mm cable   Special Features   ¬ High reliability and very low maintenance   ¬ EMC compliant – product complies with all    provisions set out in AS/NZS CISPR 15:2011  Accessories   ¬ PIR sensor available on special request   Applications   ¬ Ideal for discreet installations where the      luminaire needs to be concealed such as shops,    facades, sculptures and architectural settings    through to demanding applications such      as sport gymnasiums, security and industrial   locations. 2.4 MAX Ø 10-14 M20x1.5 H05RN-F 3G1.5 3x2.5 mm 2 233 85 319 107   37 265 Class I IK 07  3J IP66 IP44

EYE Lighting | Volume 6 Catalogue Product Range Accessories Floodlights  UP ATED:  12/11/2014 UPDA TED:  12/11/2014 For the latest product information visit  www.eyelighting.com.au Guell 1 DETEK Guell 1 A/W Code Description Output  ℓ m LED Driver Distribution 173000 ELI Guell 1 A/W LED  26W 840 2319 26W LED Integral Asymmetrical  Wide Beam LED 173005 ELI Guell 1 A/W LED  39.5W 840 3522 39W LED Integral Asymmetrical  Wide Beam 173010 ELI Guell 1 A/W LED  57.5W 840 4544 58W LED Integral Asymmetrical  Wide Beam Code Description 173080 Wire guard galvanised steel (A0650) 173082 Internal raster for Guell 1 Asymmetrical (A0652) Pictorial is representative only. Specifications may change without notice. Code Description Output  ℓ m LED Driver Distribution LED 173060 ELI Guell 1 Detek A/W  LED 58W 840 IP44 4544 58W LED Integral Asymmetrical  Wide Beam
