BTicino D45 door entry system
BTICINO

BTicino D45 door entry system

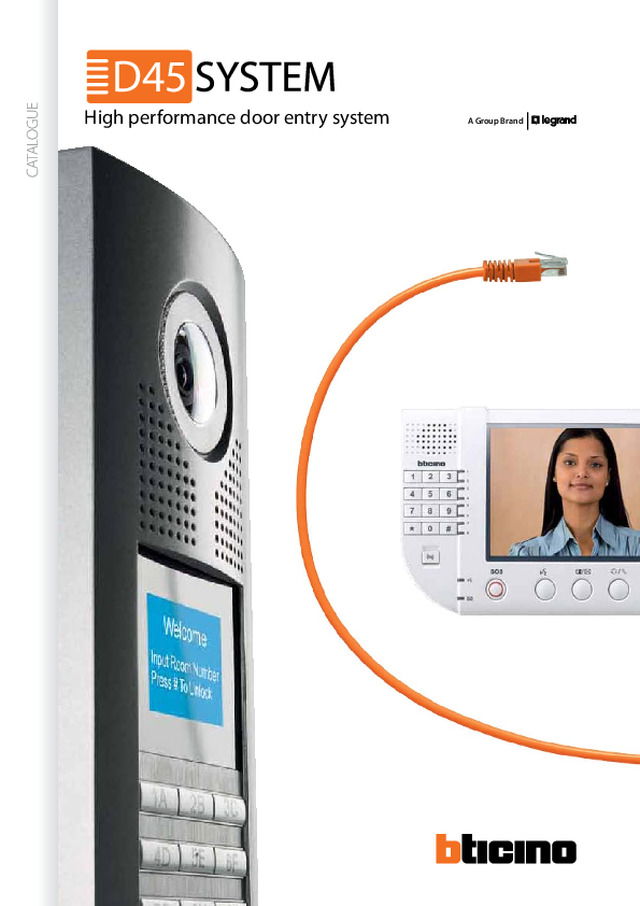

CA TA LO G U E  D45 High performance door entry system A Group Brand

2

3 D 45 Sy St em IN D eX INDEX General features   _______________________________________________ 4 Devices  _______________________________________________________ 10 Software  __________________________________________________ 18-19 Solution for multi-storey buildings   ____________________________ 20 Solution for a building complex    ___________________________ 21-22 Compatibility with the 2 wire door entry system (inside the apartment)  _________________________________________ 23 Solution for a single house  ____________________________________ 24 Solution for a group of houses  _________________________________ 25 Catalogue  _____________________________________________________ 26 Dimensions  ___________________________________________________ 30

4 High performances D45

5 D 45 Sy St em G eN eR A L F eA tU Re S H I G H   P E R F O R M A N C E  the  system  automatically  equalizes  and  amplifies  the  video signals, providing high quality video performance  even  with  long  cable  runs.  No  intermediate  amplifier  is  needed for video: B/W video signals can reach up to 2 km  and colour video signals can reach 1 km. INSTALLATION OF UP TO: 4000 800 8016 100 1 km2 km Apartments Handsets per riser Entrance panels per riser Porter switchboards Riser shunts Distance for colour video installation Distance for B/W video installation the Bticino D45 DOOR eNtRy SyStem consists of five main components:  entrance  panels,  indoor  audio  and  video handsets, porter handsets, porter switchboard, accessories and power supply. It is a security monitoring system using serial  devices  connected  using  DIGItAL  BUS  technologies. the  system  is  designed  to  perform  such  functions  as  call, doorbell, conversation, monitor, unlock, network and alarms,  by connecting riser systems to system network devices. the porter switchboard is used as the management and control centre for the entire system. With the smart power supply for the whole system, devices detect the power load status automatically so that they can switch to power savingmode if  necessary.  Approximately  70%  less  copper  is  used,  thus reducing the environmental impact.

D45 SYSTEM  ACCESSORY The D45 SYSTEM simplifies installation in residential complexes with a large number of apartments.UtP cables and RJ45 connections for all the devices enable quick, easy installation for both backbone and riser devices. Simplicity CABLE WITH RJ45 CONNECTORthe use of UtP cables and RJ45 connectors is easy and economical compared to traditional cable installations. In large applications it makes a significant difference to the total price. the system is suitable for the varying requirements of different sized installations on risers or on building or tCP/IP networks, providing the most economical system for the project.

7 D 45 Sy St em G eN eR A L F eA tU Re S Innovative security functions In  addition  to  the  standard  functions  of  door  entry  systems,  the  D45  SyStem provides new, innovative security functions including: ability to connect alarms to handsets which can be sent directly to the porter switchboard (if present), SOS button, intercom between all riser apartments and anti-tamper function on handsets, and centralisation of alarm records on porter switchboard. Porter  switchboard  as  complete alarm  management  device: functions for receiving, recording and storing alarms.   SOS PUSHBUttON ON ALL INDOOR HANDSetS   INteRCOm BetWeeN ALL RISeR APARtmeNtS   ANtI-tAmPeR FUNCtION ON INDOOR HANDSetS   POSSIBILIty tO CONNeCt AN ADDItIONAL   CAmeRA tO SWItCHBOARD

8 5.6” HANDS-FREE 4” HANDS-FREE the international design of the devices combined with the technological expertise of  the  Legrand  Group  makes  them  the  perfect  choice  for  modern  homes.  the elegant design and slim, compact shape make the indoor devices suitable for any type of home. 8 From D45 system installation International design D45

9 D 45 Sy St em G eN eR A L F eA tU Re S Integration with 2-wire door entry system the D45 SyStem can be integrated and combined with Bticino 2-wire video door entry and my HOme automation systems in order to create 2-wire technology risers and install the entire range of Bticino advanced colour video handsets inside the apartments. D45 2 WIRE INTERFACE   2 WIRe DOOR eNtRy  SyStem INSIDe tHe APARtme Nt   my HOme AUtOmAtION APPLICAtIONS INSIDe tHe APARtmeNt

10 DIGITAL ENTRANCE PANEL Zamak  alloy  die-cast  panel  with  luxurious,  elegant appearance.  the  keyboard  is  designed  with  stable  function mechanical pushbuttons and is used to call and communicate  directly  with  the  indoor  unit.   With  a  blue night light display and colour camera. - All door entry functions, including monitoring, call, conversation, unlock, etc.- Volume adjustment- Blue LCD backlight and LCD display to guide user operation- Downloadable address book- Visitors can call the indoor unit and the porter switchboard- Anti-removal alarm- Colour CCD camera can be adjusted for optimum performance- Software can be updated with no need to open the cover - Keyboard is designed with an automatic night light- Automatic alarm when door open too long- Video menu settings- CCD super-bright LED light compensation - Parameters of the entry panels can be set- Unlock with password- Protection index IP54- Protection index against mechanical impact IK07 MAIN FEATURES OF THE ENTRANCE PANEL: 10 entrance panels Keyboard with automatic night light D45

11 D 45 Sy St em D eV IC eS MAIN FEATURES OF THE ENTRANCE PANEL: - Aluminium alloy panel- Protection index: IP 54- Protection against dust- User-friendly design- Double verified intercom calls SMALL COLOUR ENTRANCE PANEL the  independent  small  video  entrance  panel  is  for installation  on  the  front  of  the  apartment  door.  this aluminium alloy panel brings luxury and a classic design, and  provides  the  following  functions:  mechanical pushbutton  with  stable  performance,  ability  to  call and  communicate  directly  with  the  indoor  unit.  Colour camera.

12 12 - 7” low power consumption LED backlit LCD display- High strength ABS plastic case - Attractive, easy-clean acrylic pushbuttons- Complete door entry functions with alarm management- 12 different ring tones selectable for different call types- Overvoltage protection- Wall-mounting MAIN FEATURES: 7” HANDS-FREE COLOUR VIDEO HANDSET Colour  indoor  unit  with  alarm  function,  with  7  inch  tFt LCD screen, capacitive touch pushbuttons, 8 defence area alarming,  wall-mounting  and  super-slim  frame.  this  is  a unique, innovative model with a modern, stylish design. 7’’ colour monitor Handsets D45

13 D 45 Sy St em D eV IC eS MAIN FEATURES: - 5.6” low power consumption LED backlit LCD display- High strength ABS plastic case - Attractive, easy-clean acrylic pushbuttons- Keyboard for intercom function- Complete door entry functions with alarm management- International standard red SOS pushbutton- 12 different ring tones selectable for different call types- Surge protection- Wall-mounting 5.6” HANDS-FREE COLOUR VIDEO HANDSET Colour  indoor  unit  with  alarm  function,  with  5.6  inch tFt  LCD  screen,  acrylic  pushbuttons,  SOS  pushbutton,  8 defence  alarming  area,  wall-mounting.  Italian  design  for an international device. 5.6’’ colour monitor  SOS red pushbutton

14 BLACK & WHITE VIDEO AND AUDIO HANDSETSBticino offers 8 defense alarm areas black and white indoor video  handsets  with  alarm  function.  these  attractively designed units provide full functions for first-class security, making them the ideal choice for the modern home. An indoor audio unit is also available as an additional handset. - High strength ABS plastic case - Door entry functions: intercom, porter switchboard call, door lock pushbutton- Keyboard for intercom function- External SOS switch option- Overvoltage protection- Wall-mounting- Hands-free- 4 inch low power consumption CRT monitor HANDS-FREE BLACK & WHITE VIDEO HANDSET: 4’’ black & white monitor 14 Handsets   D45

15 D 45 Sy St em D eV IC eS TRADITIONAL BLACK & WHITE VIDEO HANDSET: - 4 inch low power consumption CRT monitor- High strength ABS plastic case - Complete door entry functions with alarm management- International standard red SOS pushbutton- Overvoltage protection- Wall-mounting  - High strength ABS plastic case - Door entry functions: intercom, porter switchboard call, door lock pushbutton- External SOS switch option- Overvoltage protection- Wall-mounting AUDIO HANDSET:

16 16 MAIN FEATURES OF THE PORTER SWITCHBOARD: - 7’’ LCD colour monitor - Icon menu with simple, intuitive interface- Table-top installation- Full door entry functions with entrance panels and indoor handsets- Complete alarm management: receiving, recording and storage of alarms- Supervision system for the whole installation- Alarm query management system- Management of video surveillance cameras- Management of SOS call records- Management of call records- Possibility to connect an additional COAX camera PORTER SWITCHBOARD Bticino  provides  a  table-top  porter  switchboard  for management  and  supervision  of  all  standard  door  entry functions, including building alarm management. the icon menu makes the switchboard easy and intuitive to use. 7” colour monitor Porter switchboard D45 COAX

17 D 45 Sy St em D eV IC eS Accessories SYSTEM ACCESSORIES the  main  accessories  and  interfaces  are  in  DIN  rail mounting plastic housings for quick, easy installation. the power supplies for the system are in wall-mounting metal housings. Practical and safe design –  Dust protection cover DIN rail mounting Standard connections Metal housing for power  supplies

18 18 SF3 AND YOU DIAGRAM SOFTWARE SF3 is the D45 design and pre-sales wizard utility that can be  integrated  with  the  existing  youDiagram  software. It  is  intended  for  professionals  to  use  at  the  design and  costing  stages  for  installation  design,  selection  of devices,  configuration  and  validation  of  the  BUS  current consumption. Pre-sales software D45

19 D 45 Sy St em SO Ft W A Re Configuration SYSTEM CONFIGURATIONConfiguration  address  codes  are  the  numbers  used  by residents,  visitors  and  porter  switchboard  operators  to identify  the  apartments  or  houses  in  the  installation. the  D45  SyStem  uses  these  codes  for  every  call  in  the installation. each indoor unit (apartment or house) in the installation  must  have  an  address  code  in  order  to  be called by visitors and by the porter switchboard. the configuration must be designed at the project stage in order to:•  Select  the  numbers  for  each  function  (a  design/project activity)• Teach the physical device its configuration (an installation activity) Both of these activities can be carried out using a PC with the SF2 software, although it is not essential for either. the more  complex  a  system  becomes  (in  terms  of  topology and/or user functions required) the more helpful it is to use a PC for these activities. An identification and operational mode number is assigned to  each  device  by  inserting  configurators  (numbered from 0 to 9) in the appropriate housings using the clamp in  the  configurator  kit  (3501K),  or  using  the  keyboard  or pushbuttons on the devices, or using the SF2 configuration software (downloading files via the serial interface). Physical configurators EXAMPLE OF SF2 CONFIGURATION SOFTWARE  SCREENSHOTS: SF2 is the configuration software for the main system devices. It enables quick, easy configuration for enhanced devices. 3501K D45 System technical guide  2 01 1 D45 For complete technical information see “D45 System - System technical guide”

20 EXAMPLE 1 - BASIC SOLUTION FOR MULTI-STOREY BUILDINGSBasic solution with a small number of system accessories and easy, straightforward wiring connection.Any  of  the  D45  SYSTEM  indoor  handsets  can  be  installed. CAT5 connection MULTI-STOREY BUILDINGS Solution for multi-storey buildings  Apartment 4 Apartment 3 Apartment 2 Apartment 1 Apartment 4 Apartment 3 Apartment 2 Apartment 1 Floor 1 Floor 2 to floor n Floor n shunt 1st floor shunt  Building entrance  panel Power supply D45

21 D 45 Sy St em eX A m PL eS  O F S O LU tIO N S Porter  switchboard Entrance panel  switchboard shunt Solution for a building complex EXAMPLE 2: SOLUTION FOR A BUILDING COMPLEX WITH 1 PORTER SWITCHBOARDmulti-riser solution with main entrance panel, one porterswitchboard  and  a  secondary  entrance  panel  in  each building.Any  of  the  D45  SYSTEM  indoor  handsets  can  be  installed. BUILDINGS COMPLEX CAT5 connection Building complex  entrance panel Riser  shunt 1 Riser  shunt 2 Riser  shunt n... Building 1 entrance  panel Building 2 entrance  panel Building n... entrance panel BACKBONE RISER XX Floor 1 Floor 1 Floor 2 Floor 2 RISER 2 RISER 1 COAX Power supply Power supply Power supply Power supply

22 EXAMPLE 3: SOLUTION FOR A BUILDING COMPLEX WITH 2 OR MORE PORTER SWITCHBOARDSmulti-riser solution with main entrance panel, two or more porter  switchboards  and  a  secondary  entrance  panel  in each building.Any  of  the  D45  SYSTEM  indoor  handsets  can  be  installed. BUILDINGS COMPLEX Entrance panel  switchboard shunt Entrance panel  switchboard shunt Building 1 entrance  panel Building 2 entrance  panel Floor 1 Floor 1 Floor 2 Floor 2 RISER 2 RISER 1 Building complex 1  entrance panel Porter  switchboard 1 Porter  switchboard 2 Riser  shunt 1 Riser  shunt 2 Riser  shunt n... BACKBONE RISER XX Solution for a building complex Power supply Building n... entrance panel Auxiliary power supply D45 CAT5 connection Power supply Power supply Power supply

23 D 45 Sy St em eX A m PL eS  O F S O LU tIO N S Building  entrance panel Integration with 2-wire system EXAMPLE 4: COMPATIBILITY WITH BTICINO 2-WIRE SYSTEM INSIDE THE APARTMENT the  mixed  Bticino  D45/2-wire  solution  enables  a  2-wire door entry system to be installed (inside the apartment).Any 2-wire system indoor handsets can be installed. Apartment 3 Apartment 2 Apartment 1 1st floor shunt  RISER CAT5 connection 2 WIRE connection 2 2 2 2 2 Power supply Axolute Video station Axolute Video station Axolute Video station 2-wire A/V mode 2-wire apartment EP 2-wire power supply D45/2-wire interface

24 EXAMPLE 5: SOLUTION FOR A SINGLE HOUSESolution for a single house with dedicated entrance panel and  ability  to  connect  up  to  5  audio/video  intercom handsets.Any  of  the  D45  SYSTEM  indoor  handsets  can  be  installed. CAT5 connection 4-wire analogue connection SINGLE HOUSE CAT5 Small entrance panel Handset 1 Handset 3 Handset 5 Handset 2 Handset 4 Auxiliary power supply Apartment  interface Solutions for houses D45

25 D 45 Sy St em eX A m PL eS  O F S O LU tIO N S Riser  shunt Power  supply EXAMPLE 6: SOLUTION FOR A GROUP OF HOUSESSolution  for  a  group  of  houses  with  a  common  main entrance panel and a distribution accessory which allows up to 4 houses to be connected, with intercom function and an entrance panel in each house.Any  of  the  D45  SYSTEM  indoor  handsets  can  be  installed. GROUP OF HOUSES House 1 CAT5 connection 4-wire analogue connection House 3 House 4 House 2 BACKBONE Auxiliary  power supply Apartment  interface House 4 entrance  panel House 3 entrance  panel House 1  entrance  panel House 2 entrance  panel Main common entrance panel House shunt  Solution for a group of houses Floor shunt  Floor shunt  Floor shunt  Floor shunt

26 entrance panels  _______________________________________________ 27 Colour indoor handsets   _______________________________________ 27 Black & white indoor handsets   ________________________________ 27 Audio handset    _______________________________________________ 27 Porter switchboard    ___________________________________________ 27 System accessories   ___________________________________________ 28 Power supplies   _______________________________________________ 28 Configurators  _________________________________________________ 29 Catalogue index D45 INDEX

27 D 45 Sy St em C At A LO G U e Catalogue   Cat. Nos.  ENTRANCE PANELS 322010 Digital colour entrance panel Zamak alloy digital entrance panel with keyboard, LCD display  and colour camera. Equipped with door open and burglar  alarm notification. Configuration screen menu and software  upgrade without dismantling the device.  Flush-mounting box supplied. 322020 Small colour entrance panel Aluminium alloy small entrance panel to be installed on the  front of the apartment door. Touch-sensitive pushbutton for  calling indoor handsets and direct conversation.  Double verified intercom calls. Protection index IP54. Surface-mounting. Cat. Nos.  COLOUR INDOOR HANDSETS 322050 ( ) 7 inch hands-free colour handset Colour unit with alarm function, equipped with 7 inch TFT  LED backlit screen. Functions: standard door entry, door open pushbutton and call to porter switchboard. 12 different ring tones (selectable).  Super-slim frame for wall-mounting 321010 5.6 inch hands-free colour handset  Colour unit with alarm function, equipped with 5.6 inch TFT  LED backlit screen. Functions: standard VDE, door open  pushbutton and call to porter switchboard. Red SOS  pushbutton available. 12 different ring tones (selectable).  Wall-mounting  BLACK & WHITE INDOOR HANDSETS 321020 Hands-free black & white indoor handset Black & white handset with alarm function, equipped with 4 inch CRT screen. Functions: standard door entry,  door open pushbutton and call to porter switchboard. Red SOS pushbutton available.  Wall-mounting  321030 Traditional black & white indoor handset Black & white handset with alarm function, equipped with  4 inch CRT screen. Functions: standard door entry, door open pushbutton and call to porter switchboard.  Red SOS pushbutton available.  Wall-mounting  AUDIO INDOOR HANDSET 322040 Audio handset Basic audio handset with door open pushbutton. Compact  size and low power consumption. Wall-mounting  PORTER SWITCHBOARD 323001 Table-top porter switchboard Switchboard device with high resolution 7 inch LCD display  and icon menu. Able to communicate with handsets,  entrance panels and other devices. Manages incoming  calls and alarms. Can store thousands of call and alarm  records. Provides quick message retrieval using handset  addresses.  Table-top installation. 322010 322020 321010 322050 Note ( ): available soon

28 323002 323003 323005 Cat. Nos.  SYSTEM ACCESSORIES 323002 Floor shunt This is used to convert video signals on the BUS to transfer  mode and then distribute them to the connected handsets.  Device to be installed between floors. Each floor shunt can be  connected to 4 handsets. DIN rail installation 323003 Riser shunt This is used to connect the riser BUS and system BUS in  order to obtain BUS separation, transfer signals and switch  between video and audio channels. The video transfer distance can be increased by setting the gain adjustment  dip switch. DIN rail installation. 323008  Basic apartment interface  This device must be used when the apartment has 2 or 3  handsets. The interface must be installed between the  floor shunt (323002) and the indoor handsets. DIN rail  installation. 323009 Apartment interface Device used to expand the number of indoor handsets  and add a Small entrance panel. Each device can connect  5 handsets and 1 entrance panel, providing the intercom  function and call or monitor function of the entrance panel. DIN  rail installation. 323018 EP/Switchboard shunt DIN device used to connect the entrance panel and the  switchboard to the system. The device automatically switches  over the video channels. DIN rail installation. 323019 System expansion interface Device used to extend the riser system when there are  more than the limit of 400 handsets on the riser. The interface  can increase this limit to 800 handsets. This device is also  used to adjust the video gains and improve video transmission  quality. DIN rail installation. Cat. Nos.  SYSTEM ACCESSORIES 323007 2-way video splitter This device splits the BUS signal into two channels where  the video signal can only be transferred from input to output.  It provides compensation to the two channels separately and  adapts the video signal output from the entrance panel for  different distances via settings. Mainly used in riser systems to  divide the riser BUS into several channels to adapt the cabling.  DIN rail installation. 323004 Entrance panel video mixer This device can mix signals coming from 5 entrance panels.  The video transfer distance can be adjusted by setting  the gain adjustment dip switch. DIN rail installation. 323005 Power supply System power supply unit able to supply power on the data  communication cable and simultaneously provide impedance  matching for the audio channel. Protected against short  circuits:  if there is a DC output short-circuit, the device  will switch to protected mode. Once the problem has been  resolved, it will return to normal status automatically. Can also  be set up to operate as an auxiliary power supply. Wall mount  installation. 323010 Auxiliary power supply Auxiliary power supply protected against short circuits:  if there is a DC output short-circuit, the device will switch to  protected mode. Once the problem has been resolved, it will  return to normal status automatically. Wall mount installation. 323015 Door lock accessory This device is used to operate electric locks, in particular  commonly used 12 V cathode locks. When the opening current of an anode lock is over 1 A, this device is also  required to operate anode locks. It is generally connected  to the EP to obtain the lock open control signal. It is also  possible to open locks by means of external manual switches. You can select the type of electric lock via the jumper  configuration line. DIN rail installation. Catalogue 323009 D45

29 D 45 Sy St em C At A LO G U e Cat. Nos.  SYSTEM ACCESSORIES 323016 House shunt This device can distribute video, audio and data signals from the BUS to the floor shunt (323002) connected to it, so  that the signals from the BUS unit can reach the maximum  distance of 200 metres, for the specific requirements of houses.  The device should be installed in the low voltage subscriber  unit in the house. DIN rail installation. 323013 District generator This device is the district hub which can be connected to 4 riser  shunts (323003), one entrance panel, one porter switchboard  and one system power supply. It enables a large network to be  created. This device controls and changes video channels and  provides amplifying compensation for video signals. DIN rail  installation. 323012 ( ) IP management switchboard software The integrated IP management software can provide the  communication for calls between indoor handsets and the  management centre. 323020 Configuration tool Configuration kit composed by: - SF2 configuration software - Tool interface - Serial extension cable - Flat cable Cat. Nos.  SYSTEM ACCESSORIES 26145 Configurator kit consisting of:  - 10 of each type of configurator (from 0 to 9) - 2 green removable clamp connectors - 1 configurator insertion clamp - 1 plastic screwdriver 49200 Configurator 0 (pack of 10) 49201 Configurator 1 (pack of 10) 49202 Configurator 2 (pack of 10) 49203 Configurator 3 (pack of 10) 49204 Configurator 4 (pack of 10) 49205 Configurator 5 (pack of 10) 49206 Configurator 6 (pack of 10) 49207 Configurator 7 (pack of 10) 49208 Configurator 8 (pack of 10) 49209 Configurator 9 (pack of 10) 346858 D45 to BTicino 2-wire interface This is a switch-over interface through which the BTicino 2-wire door entry system can be installed inside the  apartment. DIN rail installation. 323011 D45/IP interface This is an IP interface which can be connected to the  D45 SYSTEM and BTicino 2-wire/IP System in order to  create mixed installations. DIN rail installation. 346858 323016 323013 323012 Note ( ): available soon

30 141 108 30 260 175 140 90 35 325 125 139.5 193.5 29 208 220 56 56 202 220 290 170 210 165 33 105 72 33 105 106 85 167.5 161 33 105 140 66 105 175 66 90 179 30 90 72 23 60.5 33.5 23 141 108 30 260 175 140 90 35 325 125 139.5 193.5 29 208 220 56 56 202 220 290 170 210 165 33 105 72 33 105 106 85 167.5 161 33 105 140 66 105 175 66 90 179 30 90 72 23 60.5 33.5 23 Porter switchboard 322010 322020 323001 Indoor handsets 322050 321010 321020 321030 322040 Dimensions entrance panels 141 108 30 260 175 140 90 35 325 125 139.5 193.5 29 208 220 56 56 202 220 290 170 210 165 33 105 72 33 105 106 85 167.5 161 33 105 140 66 105 175 66 90 179 30 90 72 23 60.5 33.5 23 D45 NB: All dimensions are in millimetres

31 D 45 Sy St em D Im eN SIO N S NB: All dimensions are in millimetres System accessories 141 108 30 260 175 140 90 35 325 125 139.5 193.5 29 208 220 56 56 202 220 290 170 210 165 33 105 72 33 105 106 85 167.5 161 33 105 140 66 105 175 66 90 179 30 90 72 23 60.5 33.5 23 323009 323002323015323016 323007323008 323004323018 323003323019 323005323010 323013 323011 346858 Dimensions

AD -EX CM11D45C/A US -  Version 03/2012 BT icino S.p .A. r eser ves at an y time the r ight t o modify the cont ents of this book let and t o communicat e, in an y f or m and modalit y, the changes br ought t o the same . BTicino Australia Building 4, Nexus Industry Park Lyn Parade, Prestons 2170 %   : 1300 369 777  www.bticino.com.au A Group Brand
